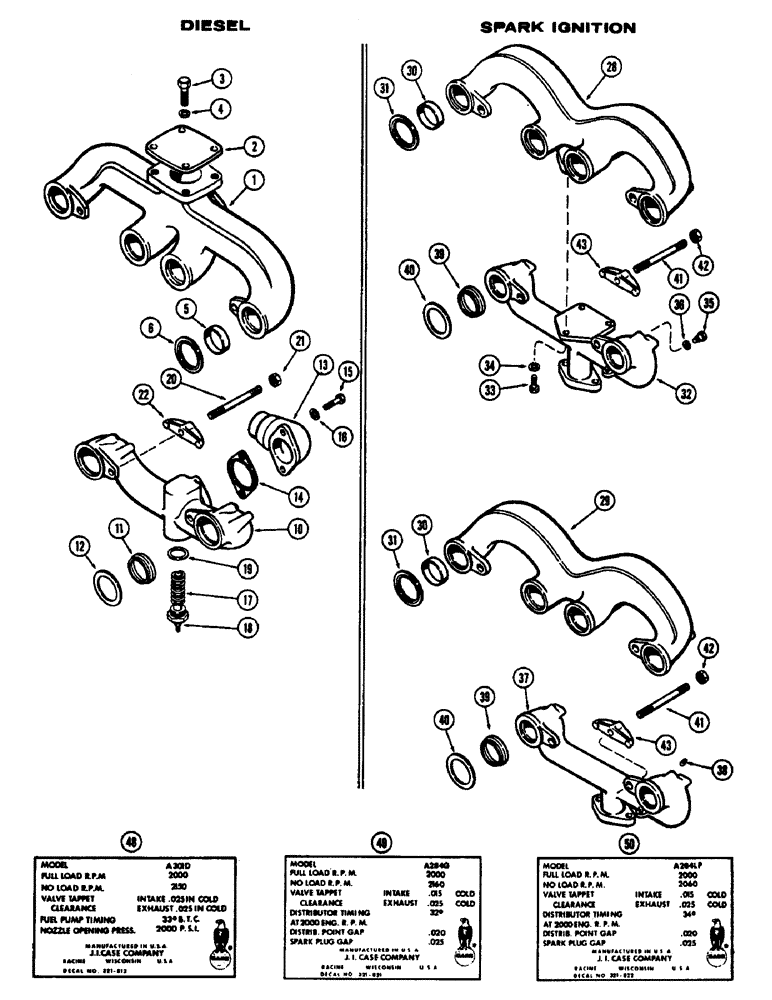

Запчасти Case IH 1060 (376) - INTAKE AND EXHAUST MANIFOLD, (301) DIESEL ENGINE (10) - ENGINE

1

A20385

MANIFOLD - exhaust

1шт.

2

A20387

COVER - manifold outlet

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- cover (1/2 x 1-1/4" N.F., hex.)

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

A21056

CAP

FERRULE - exhaust manifold

4шт.

6

A11888

MANIFOLD GASKET

- exhaust manifold

1шт.

10

A21005

MANIFOLD - intake

1шт.

11

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold

2шт.

12

A21054

MANIFOLD GASKET

- intake manifold

2шт.

13

A21007

ELBOW - intake manifold

1шт.

14

A21055

MANIFOLD GASKET

- int. manifold elbow

1шт.

15

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Elbow Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A37775

HEATER

ASSY. - manifold (12 volt) (Replaces A24396)

1шт.

18

129-503

NUT,1/4"-20, Brass

1шт.

19

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

20

A27911

STUD

- int. & exh. manifold (7/16" N.C. x 6")

4шт.

21

25-117

NUT,7/16"-20, G5

- (7/16" N.F. hex.)

4шт.

22

A24368

CLAMP

- int. & exh. manifold

4шт.

28

A20811

MANIFOLD - exhaust (Gasoline), (284) spark ignition engine

1шт.

29

A21245

MANIFOLD - exhaust (LP-gas), (284) spark ignition engine

1шт.

30

A11837

FERRULE

- exhaust manifold, (284) spark ignition engine

4шт.

31

A11889

GASKET

- exhaust manifold, (284) spark ignition engine

4шт.

32

A20812

X

MANIFOLD - intake (Gasoline), (284) spark ignition engine

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Gasoline), (284) spark ignition engine Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

34

92-6

LOCK WASHER,3/8"

(284) spark ignition engine 3/8"

3шт.

35

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

(Gasoline), (284) spark ignition engine Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

36

A20778

GASKET - boss, intake manifold, (284) spark ignition engine

1шт.

37

A20900

MANIFOLD - intake (LP-gas), (284) spark ignition engine

1шт.

38

221-11

PLUG,Sq Hd, 1/8"-27

- (1/8" P.T., sq. hd.) (LP-gas), (284) spark ignition engine

2шт.

39

A20814

BUSHING,39.69mm ID x 42.93mm OD x 12.7mm L

FERRULE - intake manifold, (284) spark ignition engine

2шт.

40

A29943

GASKET

- intake manifold, (284) spark ignition engine

2шт.

41

A27911

STUD

- int. & ext. manifold (7/16" N.C. x 6"), (284) spark ignition engine

4шт.

42

25-117

NUT,7/16"-20, G5

- (7/16" N.C. hex.), (284) spark ignition engine

4шт.

43

A24368

CLAMP

- int. & ext. manifold, (284) spark ignition engine

4шт.

48

321-813

DECAL - engine data (Diesel)

1шт.

49

321-821

DECAL - engine data (Gasoline)

1шт.

50

321-822

DECAL - engine data (LP-gas)

1шт.
