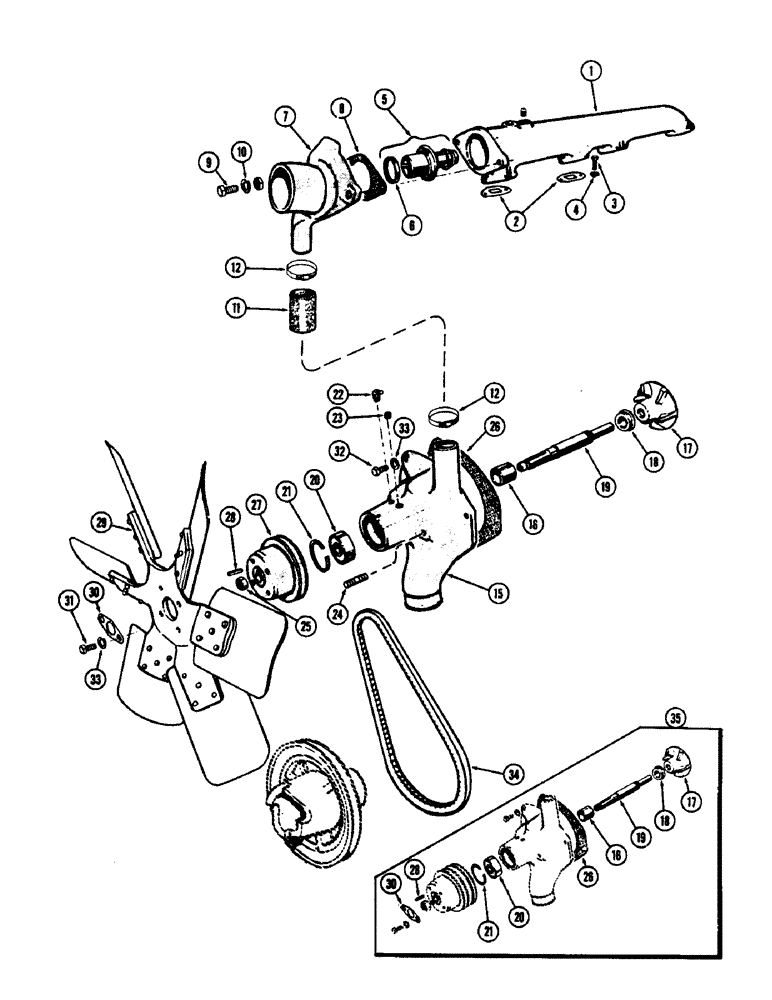

Запчасти Case IH 1060 (374) - ENGINE COOLING SYSTEM, (301) DIESEL AND (284) SPARK IGNITION ENGINE (10) - ENGINE

1

A26332

MANIFOLD

- water

1шт.

2

A27905

GASKET

- water manifold

4шт.

3

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Manifold Hex, 5/16"-18 x 1 1/8", G5

8шт.

4

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

8шт.

5

A28114

THERMOSTAT

ASSY. - (187 degrees to 202 degrees)

1шт.

6

A30954

GASKET

- thermostat

1шт.

7

A20374

HOUSING

- thermostat

1шт.

8

A28113

GASKET

- thermostat housing

1шт.

9

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- housing (3/8" x 1-1/2" N.F., hex.)

2шт.

10

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

11

A28115

HOSE

- water, by-pass

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - by-pass hose (1-3/16" to 1-3/4")

2шт.

A9768

PUMP

ASSY. - water (Not illust.)

1шт.

15

A11496

BODY

ASSY. - pump

1шт.

16

A27900

BUSHING

- pump body

1шт.

17

A26334

IMPELLER

- pump

1шт.

18

A24995

SEAL

- pump shaft

1шт.

19

A28116

SHAFT

- pump

1шт.

20

A27152

BALL BEARING,19.99mm ID x 52mm OD x 19mm W

BEARING - pump shaft

1шт.

21

A27150

RING

RETAINER - shaft bearing

1шт.

22

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 67-1/2 degrees)

1шт.

23

221-1843

PLUG

- (3/8" P.T., sckt. hd.)

1шт.

24

A7391

STUD

- generator adj. strap (3/8" N.C./N.F. x 1-1/8")

1шт.

25

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - (5/8" N.F., half hex.)

1шт.

26

M1127885

STEM

- water pump

1шт.

27

A11443

PULLEY - fan

1шт.

28

A27001

KEY

- pump and fan shaft

1шт.

29

F9363

FAN - radiator

1шт.

30

A26707

LOCK

- fan shaft nut

1шт.

31

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Fan Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

33

92-6

LOCK WASHER,3/8"

7шт.

34

A11444

BELT,0.53" W x 50.50" L

Fan and Generator 0.53" W x 50.50" L

1шт.

35

A21726

REPAIR KIT

- water pump

1шт.
