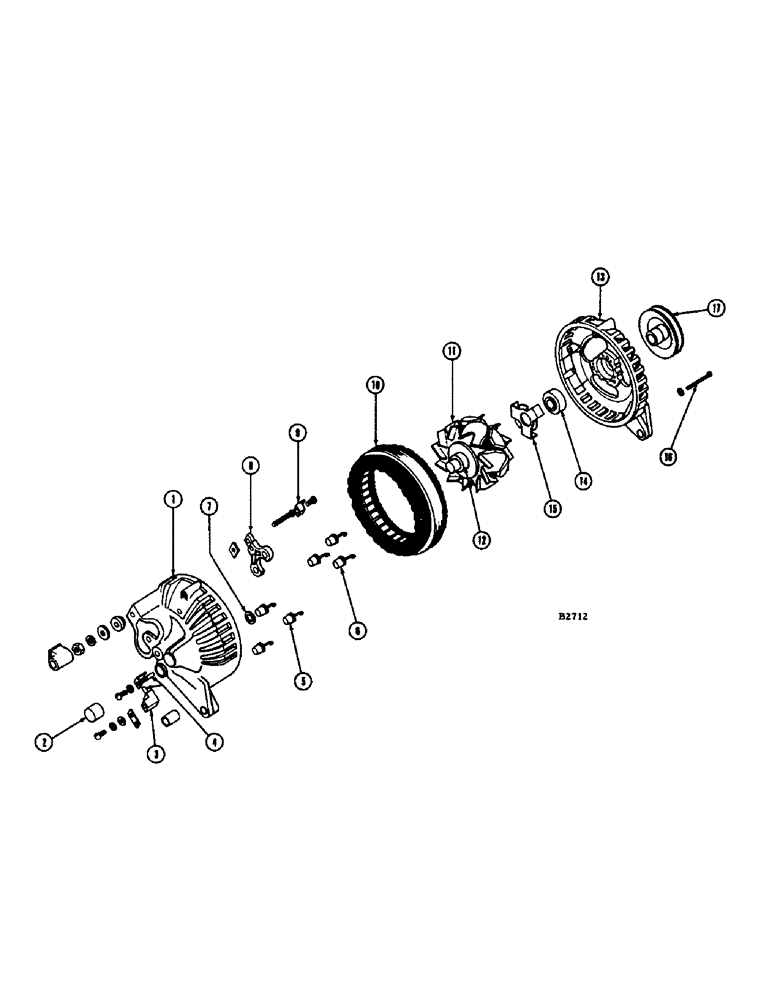

Запчасти Case IH 1060 (373A) - F86746 ALTERNATOR, CHRYSLER H-318 ENGINE (10) - ENGINE

F86746

ALTERNATOR - (Chrysler 2098830)

1шт.

1

A41495

SHIELD - rectifier end

1шт.

2

A41494

BEARING - rectifier end shield

1шт.

3

A40386

HOLDER - insulated brush

1шт.

4

A40379

BRUSHES - package

1шт.

5

A40381

RECTIFIER - negative (Black)

3шт.

6

A40408

RECTIFIER - positive (Red)

3шт.

7

A40420

SPACER

S - rectifier heat sink

1шт.

8

A40404

SINK - rectifier heat

1шт.

9

A40419

CAPACITOR KIT

1шт.

10

A40400

STATOR

1шт.

11

A41496

X

ROTOR - (Replaced by A41774 when stock is exhausted)

1шт.

A41774

ROTOR - (Replaces A41496 when stock is exhausted)

1шт.

12

A41493

SLIP RING PACKAGE - includes grease retainer, retainer washer, rotor slip ring (Replaced by A41775 when exh.)

1шт.

A41775

SLIP RING PACKAGE - includes grease retainer, retainer washer, rotor slip ring (Replaces A41493)

1шт.

13

A40405

SHIELD - drive end

1шт.

14

A40409

BEARING - drive end shield

1шт.

15

A40383

PLATE - bearing retainer

1шт.

16

A40382

SCREW - frame (Replaced by A41773 when stock is exh.)

3шт.

A41773

SCREW - frame (Replaced by A40382 when stock is exhausted)

3шт.

17

A40401

PULLEY

1шт.

F88070

ALTERNATOR

- (Chrysler 2444599), F88070, LH-318 engines

1шт.

1

A41495

SHIELD - rectifier end, F88070 alternator, chrysler LH-318 engines

1шт.

2

A41494

BEARING - rectifier end shield, F88070 alternator, chrysler LH-318 engines

1шт.

3

A40386

HOLDER - insulated brush, F88070 alternator, chrysler LH-318 engines

1шт.

4

A40379

BRUSHES - package, F88070 alternator, chrysler LH-318 engines

1шт.

5

A40381

RECTIFIER - negative (Black), F88070 alternator, chrysler LH-318 engines

3шт.

6

A40408

RECTIFIER - positive (Red), F88070 alternator, chrysler LH-318 engines

3шт.

7

A40402

STUD

SPACERS - rectifier heat sink, F88070 alternator, chrysler LH-318 engines

1шт.

8

A40404

HEAT SINK - rectifier, F88070 alternator, chrysler LH-318 engines

1шт.

9

A40419

CAPACITOR KIT, F88070 alternator, chrysler LH-318 engines

1шт.

10

A40400

STATOR, F88070 alternator, chrysler LH-318 engines

1шт.

11

A41498

ROTOR

F88070 alternator, chrysler LH-318 engines

1шт.

12

A41499

SLIP RING PACKAGE - includes grease retainers, retainer washer, rotor slip ring, F88070 alternator, chrysler LH-318 engines

1шт.

13

A40405

SHIELD - drive end, F88070 alternator, chrysler LH-318 engines

1шт.

14

A40409

BEARING - drive end shield, F88070 alternator, chrysler LH-318 engines

1шт.

15

A40383

PLATE - bearing retainer, F88070 alternator, chrysler LH-318 engines

1шт.

16

A41497

SCREW,#10 - 32 x 3.28"

- frame, F88070 alternator, chrysler LH-318 engines

3шт.

17

A41501

PULLEY, F88070 alternator, chrysler LH-318 engines

1шт.
