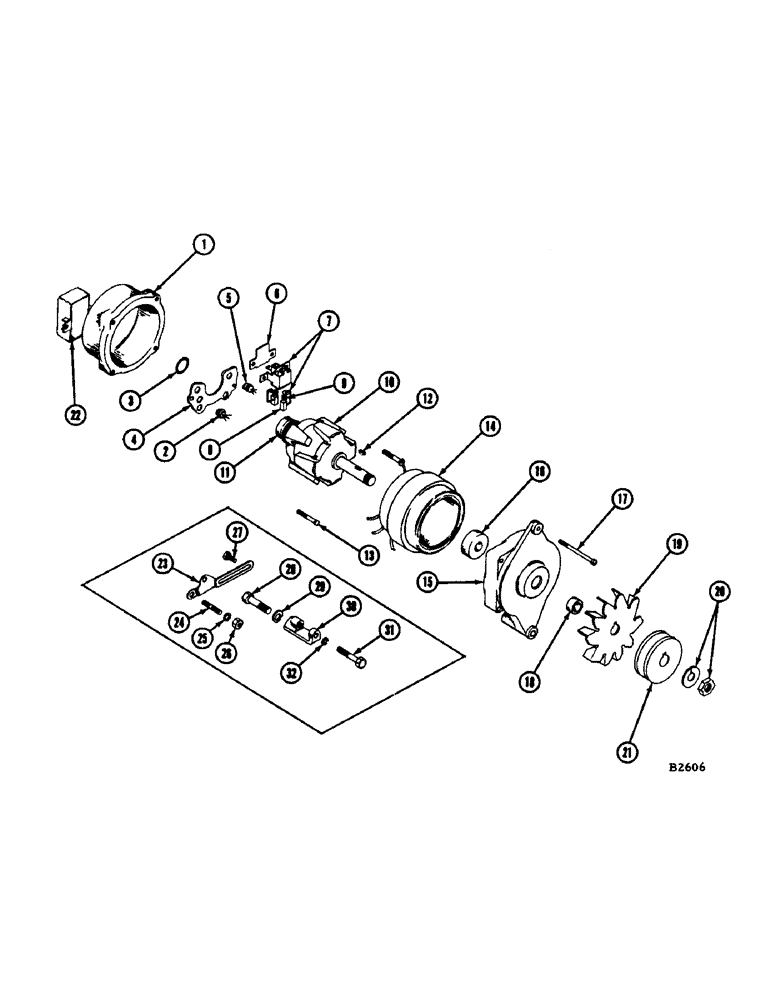

Запчасти Case IH 1060 (372) - A41090 ALTERNATOR, A284LP AND A301D (10) - ENGINE

A41090

ALTERNATOR

- (55 amp.) Less pulley and regulator

1шт.

A41065

KIT

EYEBOLT PACKAGE

1шт.

1

A41089

HEAD

- slip ring end

1шт.

2

A41071

DIODE

RECTIFIER - negative

5шт.

3

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING

1шт.

4

A41091

PLATE - rectifier

1шт.

5

A41075

DIODE

RECTIFIER - positive

3шт.

6

A41073

COVER

INSULATION - brush holder cover

1шт.

7

A41062

HOLDER

- brush

1шт.

8

A41063

BRUSH, COMMUTATOR

BRUSH SET

1шт.

9

A41064

VALVE SPRING

SPRING SET

1шт.

10

A41092

ROTOR

1шт.

11

A41077

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING

1шт.

12

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

13

A41080

KIT

STUD - terminal (Package)

1шт.

14

A41093

STATOR

1шт.

15

A41067

HEAD

- drive end

1шт.

16

A41068

BALL BEARING

BEARING

1шт.

17

A41094

BOLT

BOLT - thru (Package)

1шт.

18

A41078

BUSHING

SPACER - rotor shaft

1шт.

19

A41066

FAN

1шт.

20

A40581

KIT

NUT AND WASHER PACKAGE

1шт.

21

A40949

PULLEY

- drive

1шт.

22

A41083

REGULATOR - voltage

1шт.

23

A21538

STRAP

- alternator adjusting

1шт.

24

A7391

STUD

- adjusting strap (3/8" N.C./N.F. x 1-1/8")

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

1шт.

27

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

- 5/16" - 18 U.N.C. x 1/2" spec. (Strap to alternator)

1шт.

28

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

(Mtg. bracket) Hex, 3/4"-10 x 2 3/4", G5

1шт.

29

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

30

A34704

BRACKET

- alternator mounting

1шт.

31

15-652

X

BOLT - 3/8" x 3-1/4" N.C. hex. (Alternator to mtg. bracket)

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.
