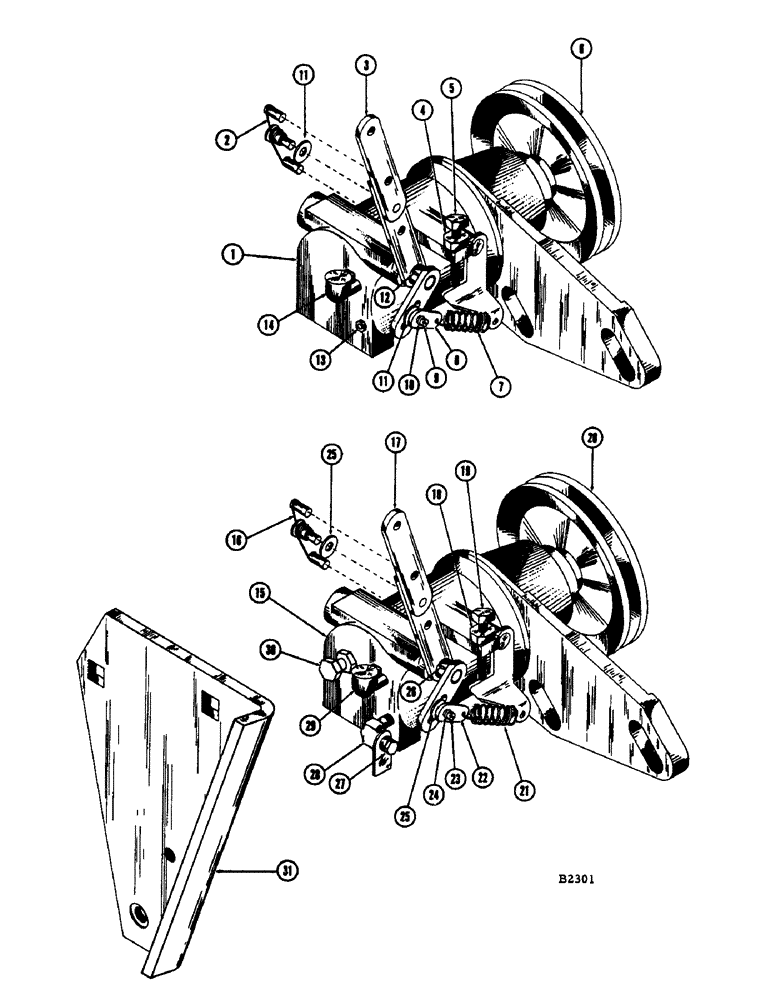

Запчасти Case IH 1060 (370) - GOVERNOR, CHRYSLER H-318 AND LH-318 ENGINES (10) - ENGINE

1

F87560

GOVERNOR - with pulley (Replaces F86747 when stocks are exhausted) See F88206

1шт.

2

F19653

SPRING - return

1шт.

3

F86933

LEVER

THROTTLE LEVER

1шт.

4

425-154

JAM NUT,Jam, 1/4"-28, G5

Adjusting level (For ref. 5) Jam, 1/4"-28, G5

1шт.

5

F19650

SCREW - adjusting

1шт.

6

F19654

PULLEY

1шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

(Pulley) Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, , Pulley 5/32" x 1 1/4", Slotted

1шт.

7

F13339

SPRING

1шт.

8

F19652

LINK - throttle lever spring

1шт.

9

F19651

PIN - selector

1шт.

10

A7111P

RING - retaining (Truarc)

1шт.

11

195-518

WASHER,1/4", SAE

3шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - (For ref. 9)

3шт.

12

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

13

F21182

OILER - oil level

1шт.

14

F21181

NECK FILLER

FILLER - oil

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-321) nut (25-116)

2шт.

WASHER - 3/8" flat (195-25) L.W. (92-6)

2шт.

15

F88206

GOVERNOR

- with pulley (Replaces F87560 and F86747 when stock is exhausted)

1шт.

16

F19653

SPRING - return

1шт.

17

F86933

LEVER

THROTTLE LEVER

1шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

Adjusting level (For ref. 19) Jam, 1/4"-28, G5

1шт.

19

F19650

SCREW - adjusting

1шт.

20

F19654

PULLEY

1шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

(Pulley) Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, , Pulley 5/32" x 1 1/4", Slotted

1шт.

21

F13339

SPRING

1шт.

22

F19652

LINK - throttle lever spring

1шт.

23

F19651

PIN - selector

1шт.

24

A7111P

RING - retaining (Truarc)

1шт.

25

195-518

WASHER,1/4", SAE

3шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - (For ref. 23)

3шт.

26

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

27

F14821

OILER - oil level, with "O" ring

1шт.

28

F14822

ELBOW - oiler (Oil level)

1шт.

29

F88364

FILLER - oil, with gasket

1шт.

30

F82948

BUMPER SCREW ASSEMBLY

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-321) nut (26-116)

2шт.

WASHER - 3/8" flat (195-25) Lockwasher (92-6)

2шт.

31

F13850

PLATE - governor (Replaces F12665)

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616)

1шт.

"O" RING - #5-1 (218-5004)

1шт.

BOLT - 3/8" x 4-1/2" N.C. hex. (13-672) L.W. (92-6)

1шт.

F12672

"V" BELT - governor drive (Not shown)

1шт.
