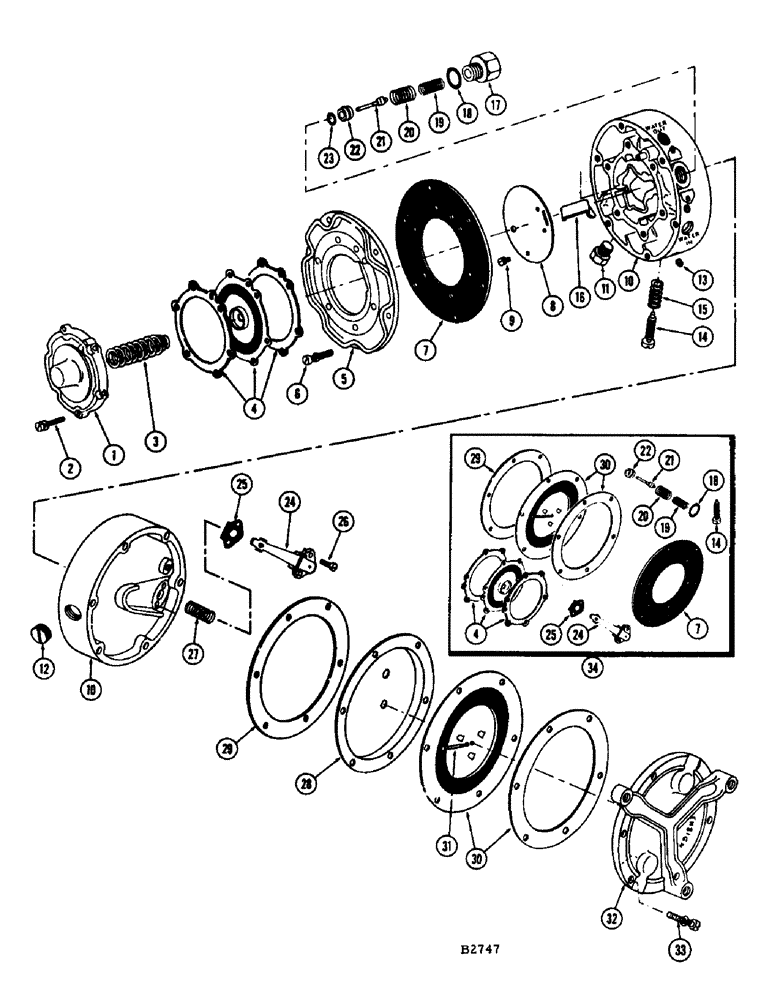

Запчасти Case IH 1060 (369C) - REGULATOR, L.P., CHRYSLER LH-318 ENGINES (10) - ENGINE

F87580

REGULATOR ASSEMBLY

1шт.

1

B50110

COVER - pressure regulator

1шт.

2

B50037

SCREW - cover

6шт.

3

B50153

SPRING - high pressure

1шт.

4

A40067

DIAPHRAGM ASSEMBLY - high pressure

1шт.

Part of repair kit P/N A40081

1шт.

5

A40068

COVER - regulator

1шт.

6

B50035

SCREW - cover

6шт.

7

A40069

MANUAL, OPERATORS

GASKET - cover

1шт.

Part of repair kit P/N A40081

1шт.

8

A40071

PLATE - partition

1шт.

9

A40070

SCREW - partition

2шт.

10

A40073

BODY - regulator

1шт.

11

221-1661

PLUG

- body (1/8" P.T., hex. hd.)

3шт.

12

221-44

PLUG - body (1/2" P.T., sltd. hd.)

1шт.

13

A40167

SCREW - bleed

1шт.

14

B50024

SCREW - idle adjusting

1шт.

Part of repair kit P/N A40081

1шт.

15

B50022

SPRING - idle adjusting screw

1шт.

16

A40072

LEVER - high pressure valve

1шт.

17

A40066

SPLINED COUPLING

FITTING - spring retainer

1шт.

18

A24538

GASKET

- retainer fitting

1шт.

Part of repair kit P/N A40081

1шт.

19

A40064

SPRING - regulator valve

1шт.

Part of repair kit P/N A40081

1шт.

20

A40063

SPRING - valve retainer

1шт.

Part of repair kit P/N A40081

1шт.

21

A40062

VALVE - regulator

1шт.

Part of repair kit P/N A40081

1шт.

22

A40061

SEAT - regulator valve

1шт.

Part of repair kit P/N A40081

1шт.

23

B50179

GASKET - valve seat

1шт.

24

A40076

VALVE - low pressure

1шт.

Part of repair kit P/N A40081

1шт.

25

A40075

GASKET - low pressure valve

1шт.

Part of repair kit P/N A40081

1шт.

26

A40077

SCREW - low pressure valve

2шт.

27

B50121

SPRING - low pressure valve

1шт.

28

B50175

PLATE - partition

1шт.

29

B50177

GASKET - partition

1шт.

Part of repair kit P/N A40081

1шт.

30

A40079

DIAPHRAGM

ASSEMBLY - low pressure

1шт.

Part of repair kit P/N A40081

1шт.

31

A40078

PIN - push

1шт.

32

A40080

PLATE - support

1шт.

33

B50037

SCREW - plate

6шт.

34

A40081

REPAIR KIT, Includes: Ref. 4, 7, 14, 18 - 22, 24, 25, 29 and 30

1шт.
