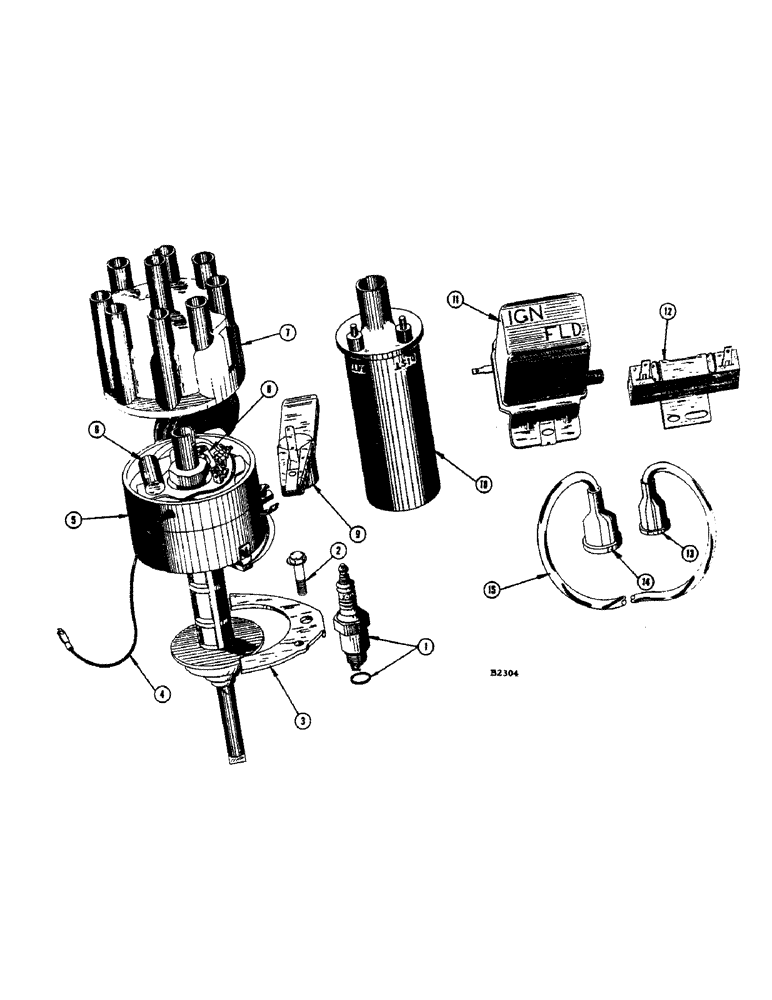

Запчасти Case IH 1060 (364) - IGNITION, CHRYSLER H-318 AND LH-318 ENGINES (10) - ENGINE

1

M20018

SPARK PLUG - with gasket (H-318)

8шт.

N12YC

SPARK PLUG

- with gasket (LH-318)

8шт.

2

F86904

SCREW - clamp, with washer (H-318)

1шт.

F87909

SCREW - clamp, with washer (LH-318)

1шт.

3

F12901

CLAMP - ignition distributor

1шт.

4

F86922

CABLE - ignition coil, primary

1шт.

5

F86899

DISTRIBUTOR - ignition (Less cap and rotor) H-318

1шт.

F87908

DISTRIBUTOR - ignition (Less cap and rotor) LH-318

1шт.

F12900

GASKET - ignition distributor (Not shown)

1шт.

6

F86902

X

CONDENSER

1шт.

7

F86900

CAP - distributor

1шт.

F86910

CABLE - spark plug ignition (Consists of 1 cable (44-1/2"), 1 terminal, 1 nipple and 1 grommet) Not shown

8шт.

8

F20510

BREAKER

CONTACT - distributor

1шт.

9

F86901

ROTOR

- distributor

1шт.

10

F86920

COIL - ignition

1шт.

F14162

SUPPORT - ignition coil (LH-318) Not shown

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) L.W. (92-5)

1шт.

11

F12687

REGULATOR

- voltage

1шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (14-420) nut (131-1)

2шт.

WASHER - 1/4" flat (195-18) nut (25-114)

4шт.

SCREW - 3/8" x #10 rhd. mach. (174-95) L.W. #10 (92-3)

1шт.

O1120CS

CUSHION - voltage regulator (Not shown) Before #8334601

2шт.

F22434

GROMMET - rubber (#8334601 and after) Not shown

2шт.

12

F86921

RESISTOR - coil, package

1шт.

13

F19785

NIPPLE, LUBE

NIPPLE - distibutor

9шт.

14

F12903

NIPPLE, LUBE

NIPPLE - coil

1шт.

15

F86905

CABLE - ignition coil, secondary (H-318)

1шт.

F87910

CABLE - ignition coil, secondary (LH-318)

1шт.

F86908

TERMINAL - secondary cable (Distributor end) Not shown

1шт.

F14165

COVER - tube, vacuum advance (LH-318) Not shown

1шт.
