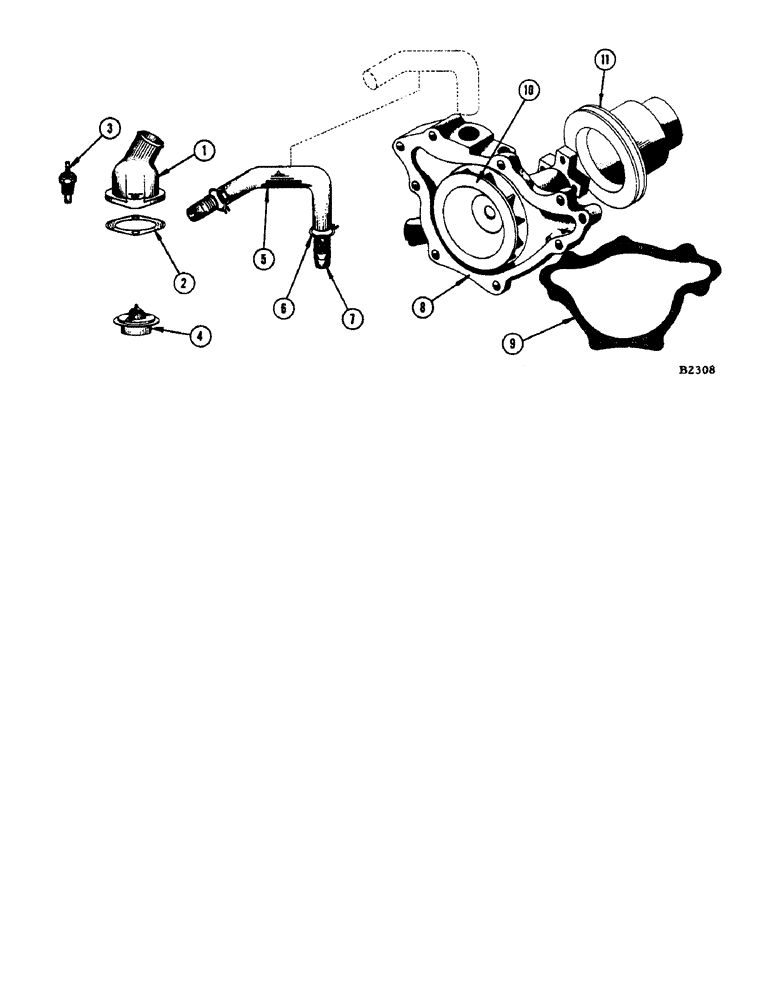

Запчасти Case IH 1060 (360) - THERMOSTAT AND HOUSING, CHRYSLER H-318 AND LH-318 ENGINES (10) - ENGINE

1

F1943

ELBOW - water outlet cylinder (H-318)

1шт.

F1998

HOUSING - water outlet (See ref. 29, page 350) LH-318

1шт.

BOLT - 7/16" x 1-1/2" N.C. hex. (113-311)

2шт.

2

F12911

GASKET - thermostat housing

1шт.

3

F13156

SENDER UNIT

UNIT - temperature sending

1шт.

PLUG - 1/8" sq. hd. pipe (221-1)

1шт.

4

F86914

THERMOSTAT - 180 degrees

1шт.

5

F12909

HOSE - water pump by-pass (H-318)

1шт.

F14451

HOSE - water pump by-pass (LH-318)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - water pump by-pass hose, spring type

2шт.

7

F12908

NIPPLE - water pump by-pass

2шт.

8

F86912

PUMP - water

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - pipe reducing, water pump

1шт.

F12904

GASKET - water pump (See ref. 9)

1шт.

F86913

KIT - water pump repair

1шт.

9

F12904

GASKET - water pump

1шт.

NSS

NOT SOLD SEPARAT

SEAL - water pump (Not shown)

1шт.

10

NSS

NOT SOLD SEPARAT

IMPELLER - water pump

1шт.

NSS

NOT SOLD SEPARAT

SHAFT AND BEARING - (Not shown), water pump

1шт.

11

F1936

PULLEY - fan, water pump

1шт.

F12793

V-BELT

"V"BELT - fan drive (Not shown), water pump

1шт.
