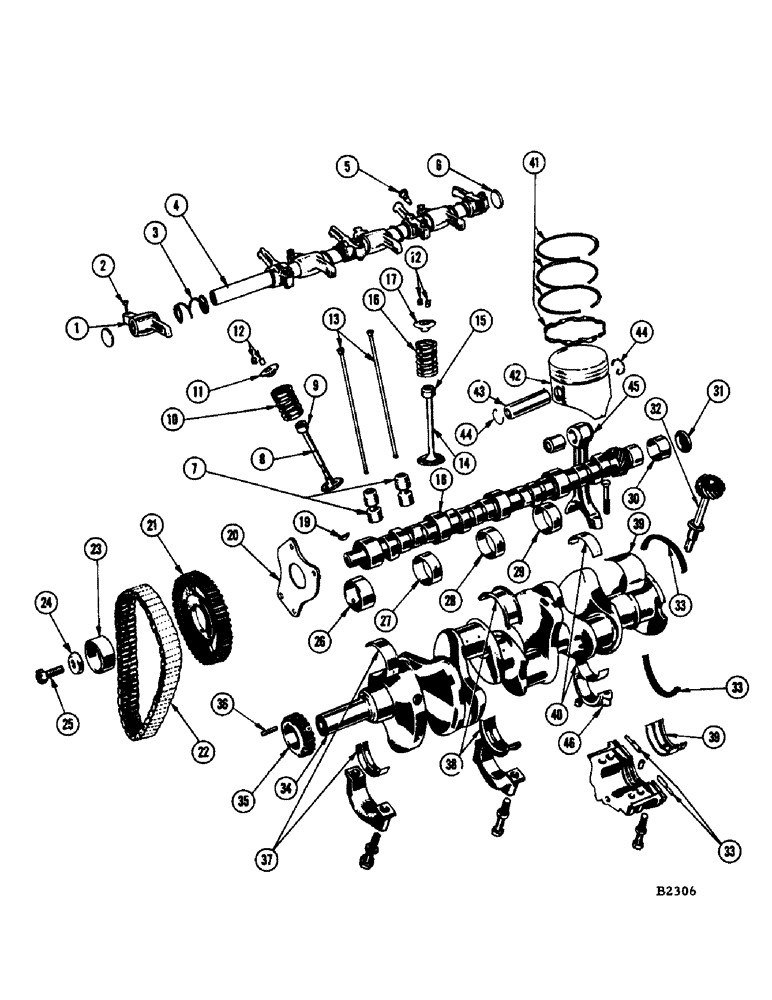

Запчасти Case IH 1060 (352) - ROCKER ASSEMBLIES AND VALVES, CHRYSLER H-318 ENGINE (10) - ENGINE

1

F86956

ROCKER - exhaust valve

8шт.

F1941

ROCKER - intake valve

8шт.

2

F12897

SCREW - adjusting, rocker

16шт.

3

F12895

SPRING - rocker shaft

16шт.

4

F86893

SHAFT - rocker

2шт.

5

F13385

SCREW

- shaft locating

2шт.

6

F13384

PLUG - shaft

4шт.

7

F86958

TAPPET - valve

16шт.

8

F12889

VALVE - exhaust, standard

8шт.

9

F12894

SHIELD - valve stem, exhaust

8шт.

10

F12891

SPRING - valve, exhaust

8шт.

11

F86924

RETAINER AND ROTATOR - valve spring, exhaust

8шт.

12

F12893

LOCK - retainer, intake and exhaust valve spring

32шт.

13

F88055

ROD - push

16шт.

14

F12888

VALVE - intake, standard

8шт.

15

F12934

SHIELD - valve stem, intake

8шт.

16

F12890

SPRING - valve, intake

8шт.

17

F12892

X

RETAINER - valve spring, intake

8шт.

F86892

GASKET SET - valve grind (Not shown)

1шт.

18

F12878

CAMSHAFT

1шт.

19

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Sprocket, camshaft #9, 3/16" x 3/4"

1шт.

20

F12883

PLATE - thrust, camshaft sprocket

1шт.

21

F12880

SPROCKET - camshaft

1шт.

22

F86887

CHAIN - timing, camshaft

1шт.

23

F12879

ECCENTRIC - camshaft

1шт.

24

F12882

WASHER - retaining screw, camshaft sprocket

1шт.

25

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Camshaft Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

26

F13378

CAMSHAFT BEARING

BEARING - camshaft, #1 (Standard)

1шт.

27

F13379

SCREW

BEARING - camshaft, #2 (Standard)

1шт.

28

F13380

SCREW

BEARING - camshaft, #3 (Standard)

1шт.

29

F13381

SCREW

BEARING - camshaft, #4 (Standard)

1шт.

30

F13382

BEARING - camshaft, #5 (Standard)

1шт.

31

41-30

PLUG

- rear bearing (Replaces F13383), camshaft

1шт.

32

F86898

SHAFT - drive, oil pump and distributor, crankshaft

1шт.

33

F86957

OIL SEAL

PACKAGE - rear crankshaft bearing

1шт.

34

F86954

CRANKSHAFT

1шт.

F12874

SLINGER - oil, crankshaft (See ref. 13, page 350)

1шт.

35

F12876

SPROCKET - crankshaft

1шт.

36

126-41

KEY - crankshaft

1шт.

37

F87916

BEARING PKG. - (1-2-4) std. (Replaces F87158), crankshaft

3шт.

F87917

BEARING PKG. - (1-2-4) .001 U.S. (Replaces F87159), crankshaft

3шт.

F87918

BEARING PKG. - (1-2-4) .002 U.S. (Replaces F87160), crankshaft

3шт.

F87919

BEARING PKG. - (1-2-4) .003 U.S. (Replaces F87161), crankshaft

3шт.

F87920

BEARING PKG. - (1-2-4) .010 U.S. (Replaces F87162), crankshaft

3шт.

F87921

BEARING PKG. - (1-2-4) .012 U.S. (Replaces F87163), crankshaft

3шт.

38

F87922

BEARING PKG. - (#3) Std. (Replaces F87164), crankshaft

1шт.

F87923

BEARING PKG. - (#3) .001 U.S. (Replaces F87165), crankshaft

1шт.

F87924

BEARING PKG. - (#3) .002 U.S. (Replaces F87166), crankshaft

1шт.

F87925

BEARING PKG. - (#3) .003 U.S. (Replaces F87167), crankshaft

1шт.

F87926

BEARING PKG. - (#3) .010 U.S. (Replaces F87168), crankshaft

1шт.

F87927

BEARING PKG. - (#3) .012 U.S. (Replaces F87169), crankshaft

1шт.

39

F87170

BEARING PACKAGE - (#5) Standard, crankshaft

1шт.

F87171

BEARING PACKAGE - (#5) .001 undersize, crankshaft

1шт.

F87172

BEARING PACKAGE - (#5) .002 undersize, crankshaft

1шт.

F87173

BEARING PACKAGE - (#5) .003 undersize, crankshaft

1шт.

F87174

BEARING PACKAGE - (#5) .010 undersize, crankshaft

1шт.

F87175

BEARING PACKAGE - (#5) .012 undersize, crankshaft

1шт.

40

F86968

BEARING PACKAGE - connector rod, standard

8шт.

F86963

BEARING PACKAGE - connector rod (.001 undersize)

8шт.

F86964

BEARING PACKAGE - connector rod (.002 undersize)

8шт.

F86965

BEARING PACKAGE - connector rod (.003 undersize)

8шт.

F86966

BEARING PACKAGE - connector rod (.010 undersize)

8шт.

F86967

BEARING PACKAGE - connector rod (.012 undersize)

8шт.

F14440

RING

SET - piston (Std. to .009 O.S.) Replaces F12886

1шт.

F86974

RING SET - piston (.020 oversize)

1шт.

F86975

RING SET - piston (.040 oversize)

1шт.

42

F86891

PISTON AND PIN - (Standard)

8шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

F12873

PIN - piston

1шт.

F12872

RING - lock, pin

2шт.

F86906

PISTON AND PIN - (.005 oversize)

8шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

F12873

PIN - piston

1шт.

F12872

RING - lock, pin

2шт.

F86907

PISTON AND PIN (.020 oversize)

8шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

F12873

PIN - piston

1шт.

F12872

RING - lock, pin

2шт.

F86962

PISTON AND PIN - (.040 oversize)

8шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

43

F12873

PIN - piston

1шт.

44

F12872

RING - lock, pin

2шт.

45

F86890

ROD PACKAGE - connector

8шт.

46

NSS

NOT SOLD SEPARAT

CAP - bearing, connector rod

1шт.
