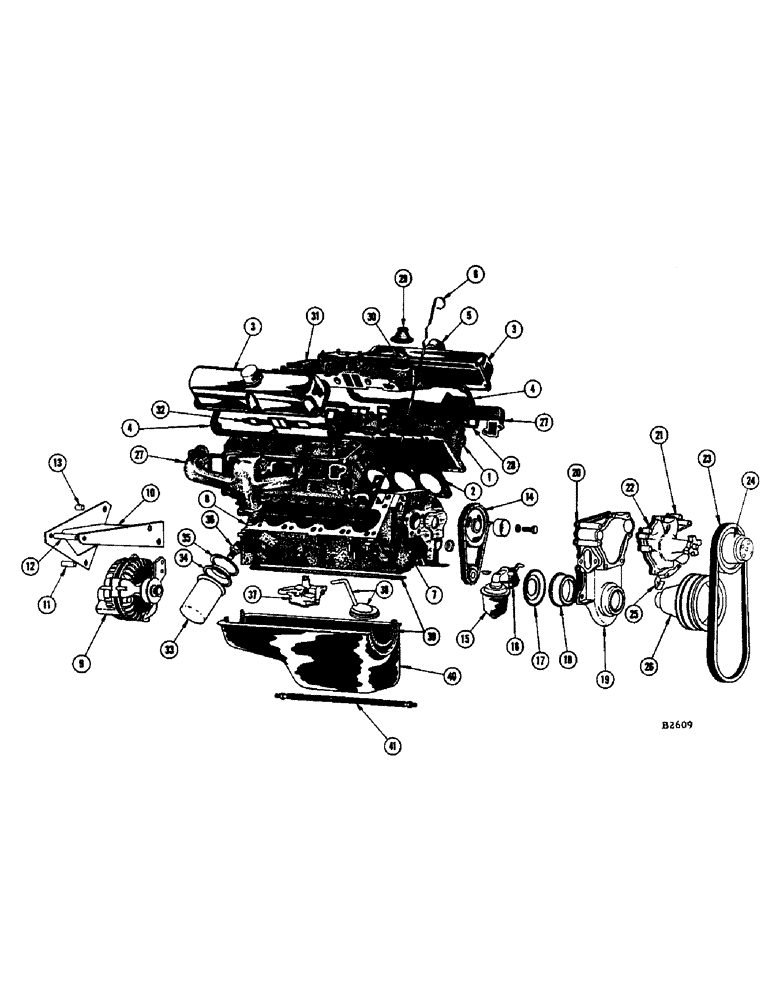

Запчасти Case IH 1060 (348) - CYLINDER HEAD, CHRYSLER LH-318 ENGINES (10) - ENGINE

1

F88069

HEAD - cylinder (Gas)

2шт.

F88421

HEAD - cylinder (L.P.)

2шт.

F14247

BOLT - short, cylinder head (Not shown)

10шт.

F14248

BOLT - medium, cylinder head (Not shown)

8шт.

F14249

BOLT - long, cylinder head (Not shown)

2шт.

2

F14246

GASKET - cylinder head

2шт.

3

F87914

COVER - cylinder head

2шт.

BOLT - 5/16" x 2" N.F. hex. (114-122) fl. wshr. (195-21)

10шт.

4

F14250

GASKET - cover, cylinder head

2шт.

5

F21213

BREATHER CAP

2шт.

6

F12662

DIPSTICK - oil level indicator

1шт.

7

F12663

TUBE - dipstick

1шт.

8

F88283

ENGINE - short (Gas), cylinder

1шт.

BLOCK - cylinder (Includes plugs, dowels, with oil pump and distributor drive shaft bushing)

1шт.

CRANKSHAFT - (Includes clutch shaft pilot bushing), cylinder block

1шт.

BEARING SETS - main (#1-2-3-4-5 upper and lower halves), cylinder block

5шт.

CAP AND SCREWS - main bearing, cylinder block

5шт.

SET OF OIL SEALS - (#5 main bearing), cylinder block

1шт.

PISTONS W/PINS - (Includes inserts and retaining rings), cylinder block

8шт.

CONNECTOR RODS - (Includes caps, nuts, screws and bushings), cylinder block

8шт.

RING SETS - (See F12886), cylinder block

8шт.

BEARING - camshaft (#1-2-3-4-5), cylinder block

5шт.

F88423

CYLINDER BLOCK - with pistons and rings (L.P.)

1шт.

9

F88070

ALTERNATOR

- with pulley, cylinder block

1шт.

F12667

STRAP - alternator, adjusting, cylinder block

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) fl. wshr. (195-21), cylinder block

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116), cylinder block

1шт.

10

F87835

BRACKET - alternator, cylinder block

1шт.

11

F14453

SPACER - alternator braket, lower, cylinder block

1шт.

BOLT - 3/8" x 2" N.C. hex. (13-632) L.W. (92-6), cylinder block

1шт.

12

F14163

SPACER - for alternator and bracket, cylinder block

1шт.

BOLT - 3/8" x 4-1/4" N.F. hex. (14-6168) nut (131-366), cylinder block

1шт.

13

H1521S

BUSHING

SPACER - alternator bracket, upper, cylinder block

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (13-620) L.W. (92-6), cylinder block

1шт.

14

F86887

CHAIN - timing (See page 356), cylinder block

1шт.

15

F86745

PUMP - fuel (Gas), cylinder block

1шт.

16

F14240

GASKET - fuel pump (Gas), cylinder block

1шт.

17

F12874

SLINGER - oil, cylinder block

1шт.

18

F87915

OIL SEAL ASSEMBLY - chain case cover, cylinder block

1шт.

19

F86923

COVER - chain case, cylinder block

1шт.

20

F12885

GASKET - cover, chain case, cylinder block

1шт.

21

F86912

PUMP - water, cylinder block

1шт.

22

F12904

GASKET - water pump, cylinder block

1шт.

23

F12793

V-BELT

"V"BELT - fan drive, cylinder block

1шт.

24

F1936

PULLEY - fan, cylinder block

1шт.

25

F86888

INDICATOR - timing, cylinder block

1шт.

26

F1935

PULLEY - fan drive (Triple groove), cylinder block

1шт.

F12671

WASHER - for F1935, cylinder block

1шт.

14-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

- 3/4" x 1-1/2" N.F. hex., , cylinder block

1шт.

27

F1999

MANIFOLD - exhaust

2шт.

28

F14241

GASKET - exhaust manifold

2шт.

F14243

STUD - exhaust manifold (Not shown)

4шт.

F14245

X

NUT - exhaust manifold (Not shown)

4шт.

F14244

SCREW - exhaust manifold (Not shown)

4шт.

F14242

WASHER - exhaust manifold (Not shown)

8шт.

29

F1998

CYLINDER - water outlet

1шт.

BOLT - 7/16" x 1-1/2" N.C. hex. (113-311)

2шт.

30

F86914

THERMOSTAT - 180 degrees

1шт.

31

F87913

MANIFOLD - intake

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201)

8шт.

BOLT - 3/8" x 2" N.F. hex. (114-216)

8шт.

BOLT - 3/8" x 2-1/4" N.C. hex. (113-213)

2шт.

32

F88064

GASKET

SET - intake manifold (Gas)

1шт.

F88420

GASKET SET - intake manifold (L.P.)

1шт.

F12914

SEALER - gasket, intake manifold (Not shown)

1шт.

33

A37189

FILTER, ELEMENT

FILTER - oil (Throw-away type)

1шт.

34

F12678

PLATE - oil filter adapter

1шт.

35

F12680

GASKET

1шт.

36

F12677

ADAPTER - oil filter to cylinder block

1шт.

37

F87907

PUMP - oil

1шт.

F14235

SPRING - relief valve, oil pressure (Not shown)

1шт.

F14449

GASKET - pump cover (Not shown)

1шт.

38

F86897

PIPE AND STRAINER - suction

1шт.

39

F87065

GASKET

KIT - oil pan

1шт.

40

F86895

OIL PAN - front drain

1шт.

F86885

SCREW - oil pan attaching, w/washer (Not shown)

18шт.

F14448

GASKET - drain plug (Not shown)

1шт.

41

F12673

HOSE - drain, oil pan

1шт.

CAP - 1/2" NPT pipe (221-525)

1шт.

F88066

GASKET

SET - engine

1шт.

F14246

GASKET - cylinder head

2шт.

F14250

GASKET - head cover

2шт.

F12885

GASKET - chain case cover

1шт.

F12911

GASKET - water outlet cylinder

1шт.

F12904

GASKET - water pump body

1шт.

F14240

GASKET - fuel pump flange

1шт.

F12900

GASKET - ignition distributor

1шт.

F87065

GASKET

SET - oil pan

1шт.

F88064

GASKET

SET - intake manifold (Gas)

1шт.

F86957

OIL SEAL

ASSEMBLY - crankshaft bearing

1шт.

F87915

OIL SEAL ASSEMBLY - chain case cover

1шт.

F12934

OIL SHIELD - valve stem

16шт.

F88420

GASKET SET - intake manifold (L.P.) Order separately

1шт.

F88062

GASKET

KIT - gasket, valve grind

1шт.

F14246

GASKET - cylinder head

2шт.

F14250

GASKET - head cover

2шт.

F88064

GASKET

SET - intake manifold (Gas)

1шт.

F12934

OIL SHIELD - valve stem

16шт.

F88420

GASKET SET - intake manifold (L.P.) Order separately

1шт.
