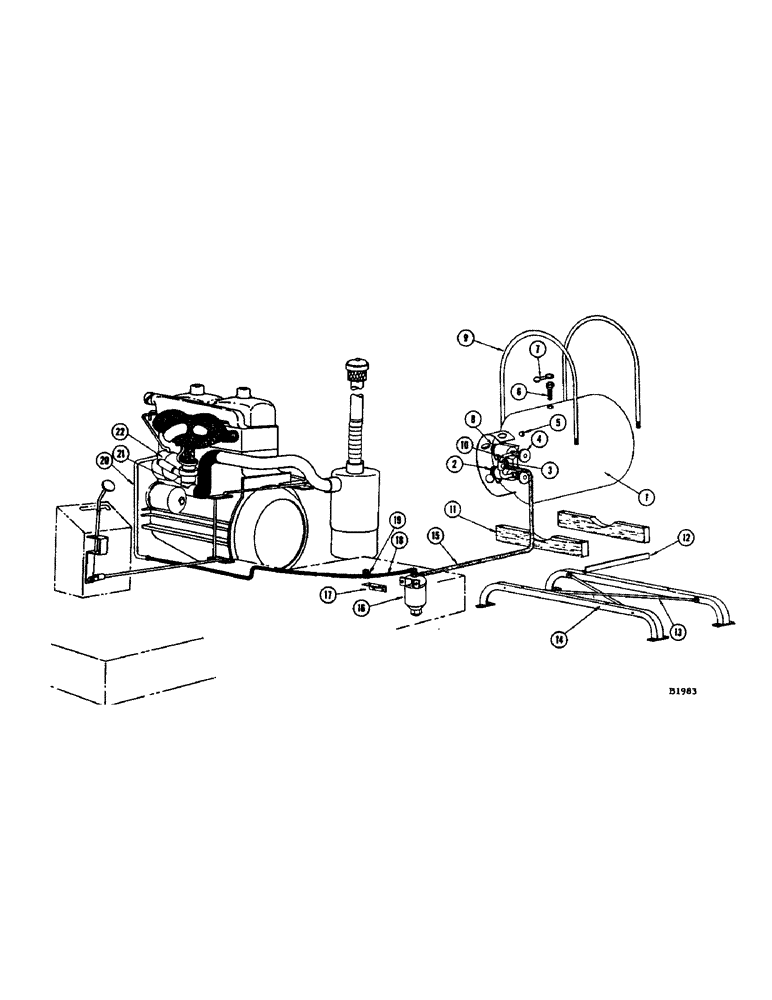

Запчасти Case IH 1060 (340) - L.P. FUEL TANK, A284 LP-F ENGINE (10) - ENGINE

1

F77873

TANK - fuel

1шт.

2

A29942

VALVE - liquid filter

1шт.

A40631

CAP AND CHAIN

1шт.

3

A20423

GAUGE - visible

1шт.

4

4003AA

X

VALVE - vapor and liquid outlet

2шт.

5

A29941

GAUGE - fixed fuel level

1шт.

6

A20696

SEAL

VALVE - safety relief

1шт.

7

A20697

WIPER

CAP - safety relief valve

1шт.

8

A9320

VALVE - vapor return

1шт.

A40630

CAP AND CHAIN

1шт.

9

F11089

STRAP - tank support

2шт.

NUT - 1/2" N.F. hex. (25-118) L.W. (92-8)

4шт.

10

A27685

TUBE - tank, Serial Range: valve-tee

2шт.

A26388

X

NUT - (Not shown)

1шт.

TEE - 3/8" #84LB Imperial (222-564)

1шт.

11

F4080

BLOCK - support, fuel tank

2шт.

12

F11091

ANGLE - upper tank support

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

4шт.

13

F11090

BRACE - cross, tank support

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

4шт.

14

F87031

SUPPORT - lower tank

2шт.

15

F11093

TUBE -, Serial Range: tank-filter

1шт.

F11094

LOOM - for F11093 tube

1шт.

16

A24535

FILTER

- liquid (American Bosch #FLT 25 B1)

1шт.

ELBOW - 3/8" tube size Imp. #89LB (222-437)

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

17

F11092

BRACKET - filter

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

18

F11178

TUBE - filter to flexible connector

1шт.

F11179

LOOM - for F11178 tube

1шт.

19

A26696

NO LONGER SERVICED

CLIP - 1 for fuel line F11093, 1 for F11180

2шт.

20

F11180

TUBE - flexible, Serial Range: connector-regulator

1шт.

F11198

COVER - canvas, fuel line (Not shown)

1шт.

F11196

CLIP - fuel line (Not shown)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

1шт.

21

A21229

STIFFENER

CARBURETOR - (Ensign XG 1-1/4" no. 9262)

1шт.

22

A21231

REGULATOR - (Ensign W no. 9261)

1шт.
