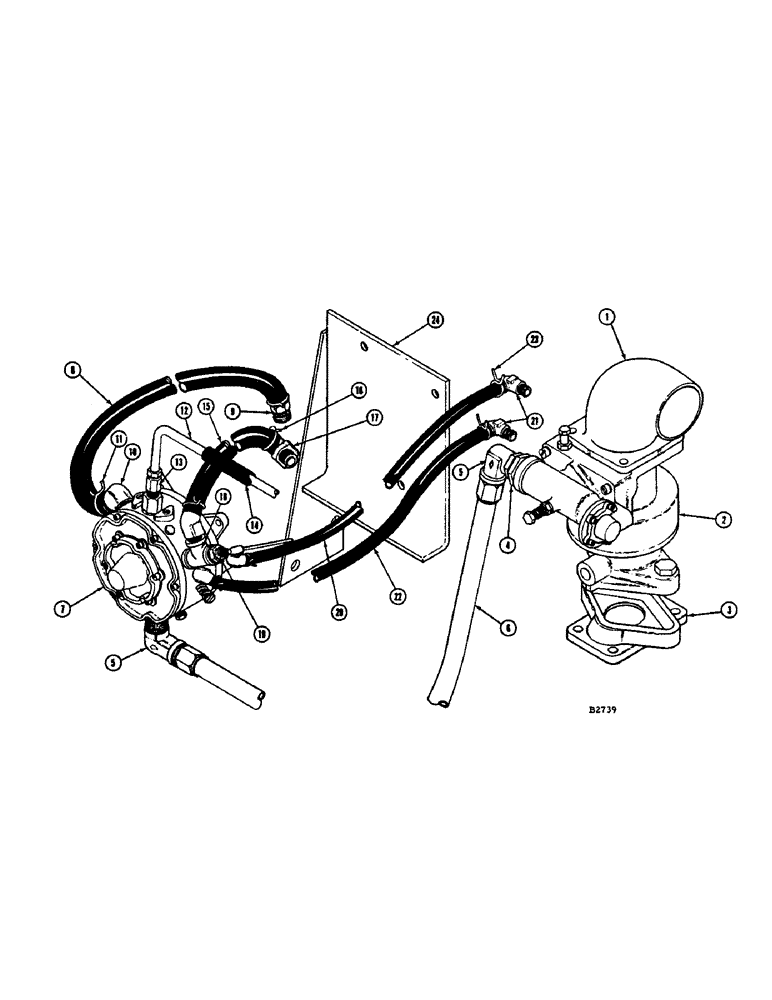

Запчасти Case IH 1060 (337C) - FUEL SYSTEM, L.P, CHRYSLER LH-318 ENGINES (10) - ENGINE

1

F1986

ADAPTER - elbow

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) lockwasher (92-5)

4шт.

F13899

GASKET - carburetor to elbow adapter (Not shown)

1шт.

2

F87579

CARBURETOR - LP gas (Repairs p. 369A)

1шт.

BOLT - 7/16" x 1" N.C. hex. (13-716)

2шт.

F13898

GASKET - carburetor to flange (Not shown)

1шт.

3

F13897

FLANGE - manifold adapter

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) lockwasher (92-5)

4шт.

F12676

GASKET -, Serial Range: flange-manifold

1шт.

4

221-603

REDUCER,Hex, 1" x 1/2" NPT

BUSHING - 1" x 1/2" NPT reducing

1шт.

5

222-51

ELBOW,90 Degree, 1"-18 Fem x 1/2" NPTF

- 5/8" x 1/2" NPT imp. #69FL

2шт.

6

F13905

TUBE - fuel outlet

1шт.

7

F87580

REGULATOR - vaporizer (Repairs p. 369C)

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (14-520) nut (25-115)

3шт.

WASHER - 5/16" SAE std. (195-21) LW (92-5)

3шт.

8

F13902

TUBE - water outlet

1шт.

9

217-172

CONNECTOR hose, imp. KF08-06-PS

1шт.

10

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

Connector, Imp. KF08-06 PS90 90º, 1/2" Hose x 3/8" NPTF, Barbed

1шт.

11

214-109

HOSE CLAMP,#14, 7/8", Spring

CLAMP - hose (7/8" O.D.)

2шт.

12

F13906

FUEL LINE -, Serial Range: filter-regulator

1шт.

13

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - 3/8" x 1/4" NPT imp. #88LB

1шт.

14

F14587

LOOM -, Serial Range: filter-regulator

1шт.

15

F13901

TUBE - water inlet

1шт.

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - pipe (Regulator end of F13901)

1шт.

16

214-109

HOSE CLAMP,#14, 7/8", Spring

CLAMP - hose (7/8" O.D.)

2шт.

17

217-280

CONNECTOR - hose, imp. KF08-06PS45 (Both ends ref. 15)

2шт.

18

221-423

TEE,3/8" NPT

- pipe (3/8" x 3/8" x 3/8")

1шт.

19

F13156

SENDER UNIT

UNIT - temperature sending

1шт.

20

F13903

TUBE - balance

1шт.

21

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

CONNECTOR - hose, imp. KF04-02PS45 (Both ends ref. 20 & 22)

4шт.

22

F13904

TUBE - idle connector

1шт.

23

214-102

HOSE CLAMP,#7, 7/16", Spring

CLAMP - hose (7/16" O.D.) Both ends of ref. 20 & 22

4шт.

24

F88207

BRACKET - regulator

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-614)

1шт.

BOLT - 3/8" x 2-1/4" N.F. hex. (14-636) nut (25-116)

1шт.

WASHER - 3/8" flat (195-25) lockwasher (92-6)

2шт.
