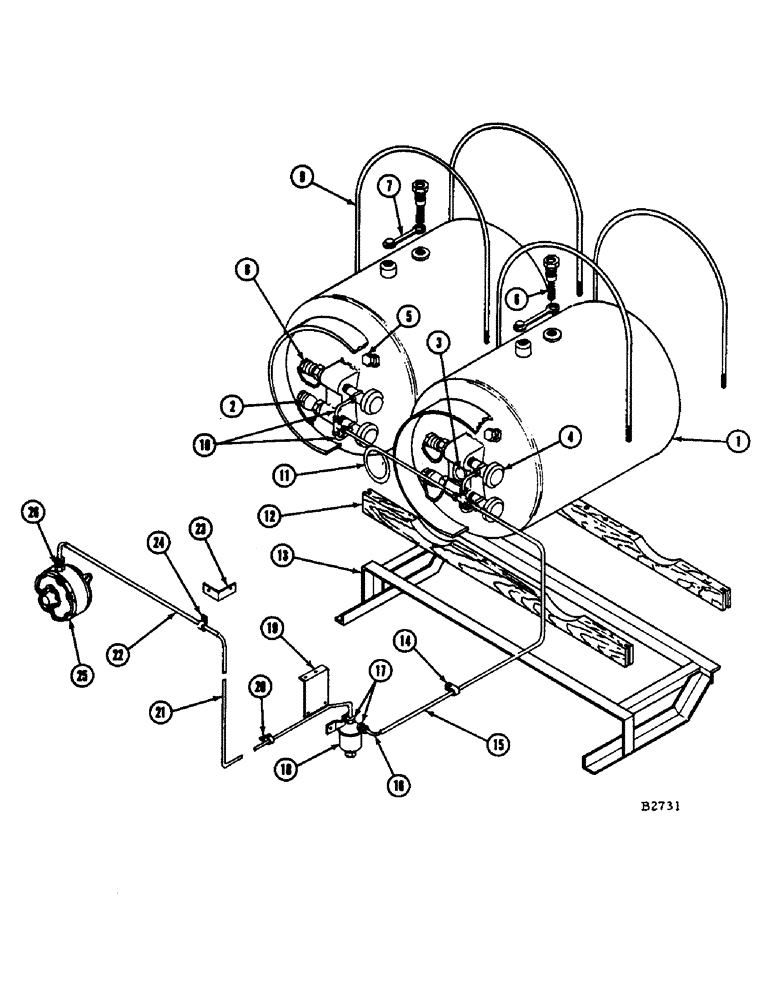

Запчасти Case IH 1060 (337A) - FUEL TANK, L.P., CHRYSLER LH-318 ENGINES (10) - ENGINE

1

F77873

TANK - fuel

2шт.

2

A29942

VALVE - liquid filter

1шт.

A40631

CAP AND CHAIN

1шт.

3

A20423

GAUGE - visible

1шт.

4

4403AA

VALVE - vapor and liquid outlet

2шт.

5

A29941

GAUGE - fixed fuel level

1шт.

6

A20696

SEAL

VALVE - safety relief

1шт.

7

A20697

WIPER

CAP - safety relief valve

1шт.

8

A9320

VALVE - vapor return

1шт.

A40630

CAP AND CHAIN

1шт.

9

F14581

"U"BOLT

4шт.

WASHER - 1/2" mall. sq. beveled (195-902)

4шт.

NUT - 1/2" N.F. hex. (25-118) L.W. (92-8) F.W. (195-33)

8шт.

10

A27685

TUBE - tank, Serial Range: valve-tee

4шт.

A26388

X

NUT - (Not shown)

1шт.

222-1432

TEE - 3/8" #52 LB imp. (Left tank)

1шт.

222-564

TEE - 3/8" #84 LB imp. (Right tank)

1шт.

11

F14582

FUEL LINE -, Serial Range: tank-tank

1шт.

F14583

LOOM - for F14582

1шт.

12

F4123

BLOCK - tank

2шт.

13

F88205

SUPPORT - dual tank

1шт.

14

A26696

NO LONGER SERVICED

CLIP - fuel line

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

1шт.

WASHER - 1/4" flat (195-18) Lockwasher (92-4)

1шт.

15

F14585

LOOM - for F14584

1шт.

16

F14584

FUEL LINE -, Serial Range: tank-filter

1шт.

17

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - 3/8" x 1/4" NPT #88 LB imp. (For A24535)

2шт.

18

A24535

FILTER

- liquid (American Bosch #FLT 25 B1)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

19

F13809

BRACKET - filter

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

20

F12300

CLIP - fuel line

1шт.

21

F13906

FUEL LINE -, Serial Range: regulator-filter

1шт.

22

F14587

LOOM - for F13906

1шт.

23

F13907

CLIP - fuel line (For F9263)

1шт.

24

F9263

CLIP - fuel line (For F13906)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

1шт.

25

F87580

REGULATOR - vaporizer

1шт.

26

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - 3/8" x 1/4" NPT #88 LB imp. (For F13906)

1шт.
