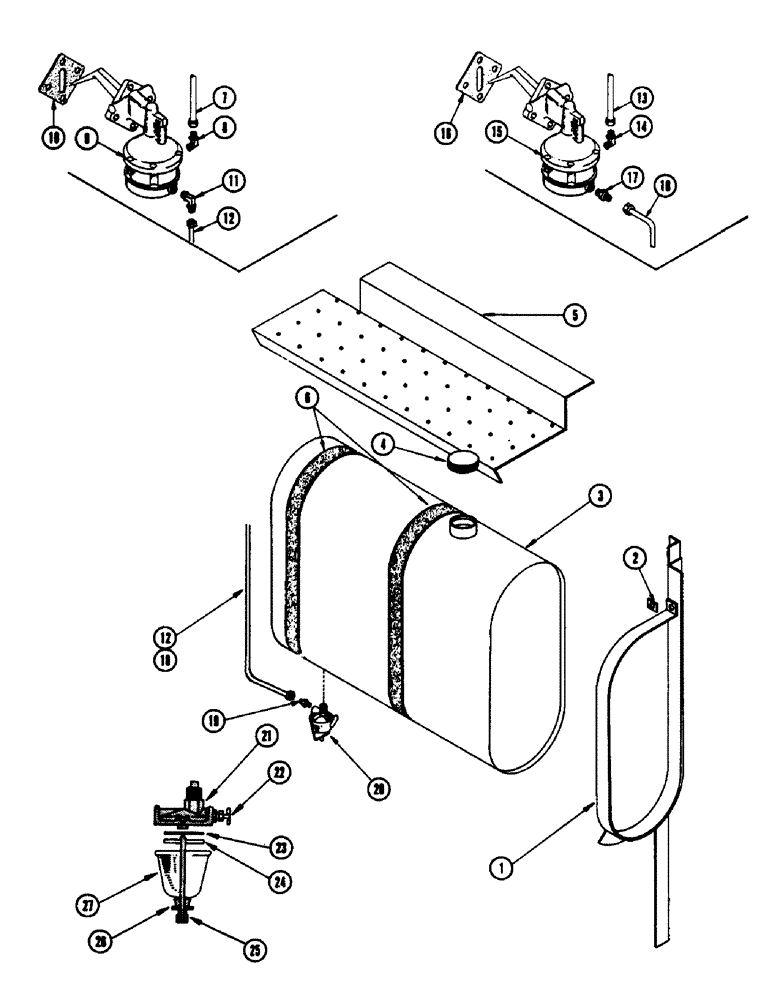

Запчасти Case IH 1060 (336) - FUEL TANK, GASOLINE, CHRYSLER H-318 AND LH-318 ENGINES (10) - ENGINE

1

F79282

SUPPORT - fuel tank

2шт.

2

F8190

WASHER - fuel tank strap

2шт.

3

F79391

TANK - fuel

1шт.

4

F6541

CAP

- fuel tank

1шт.

5

F11084

STEP - fuel tank

1шт.

BOLT - 5/16" x 1/2" N.F. hex. (114-108) nut (129-122)

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

2шт.

6

F11082

CUSHION - felt, fuel tank

2шт.

7

F12692

LINE - fuel, pump to carburetor (H-318)

1шт.

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" Imp. #61-F

2шт.

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" Imp. #60-F

2шт.

8

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- 5/16" O.D. x 1/8" NPT Imp. #69-F (Fuel pump and carburetor) H-318

2шт.

9

F86911

PUMP - fuel, with gasket (H-318) Replaced by F86745 when stock is exhausted

1шт.

10

F12664

GASKET - fuel pump (H-318)

1шт.

11

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

- 5/16" O.D. x 1/8" NPT Imp. #69FL (H-318)

1шт.

12

F12713

LINE - fuel, strainer to pump (H-318)

1шт.

13

F13859

LINE - fuel, pump to carburetor (LH-318)

1шт.

222-4024

CONNECTOR - 5/16" O.D. x 1/8" NPT Imp. #68FL (Carburetor)

1шт.

222-113

TUBE NUT,9/16"-24

NUT - 5/16" Imp. #61FL (LH-318)

2шт.

222-103

SLEEVE,5/16" Tube

Imp. #60FL (LH-318) 5/16" Tube

2шт.

14

222-4044

ELBOW

- 5/16" O.D. x 1/8" NPT Imp. #69FL (Pump)

1шт.

15

F86745

PUMP - fuel (LH-318) See ref. 9

1шт.

16

F14240

GASKET - fuel pump (LH-318)

1шт.

BOLT - 3/8" x 1-3/8" N.C. hex. (13-622) L.W. (92-6)

2шт.

17

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTORS - 5/16" O.D. x 1/8" NPT Imp. #68-FL (LH-318)

1шт.

18

F14164

LINE - fuel, strainer to pump (LH-318)

1шт.

F9263

CLIP - fuel line (Not shown) Replaces 07836 HT

2шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

2шт.

19

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - 5/16" O.D. x 1/8" NPT Imp. #68FL (For strainer H-318 and LH-318)

1шт.

20

A30049

STRAINER ELEMENT

STRAINER - fuel, complete

1шт.

21

A11214

HEAD

1шт.

22

A11205

VALVE

- needle

1шт.

23

A11211

FILTER SCREEN

SCREEN

1шт.

24

A11208

GASKET

- cork

1шт.

25

A11212

BAIL

1шт.

26

A11210

ADJUSTER

CAP AND NUT

1шт.

27

A11209

BOWL

- glass

1шт.
