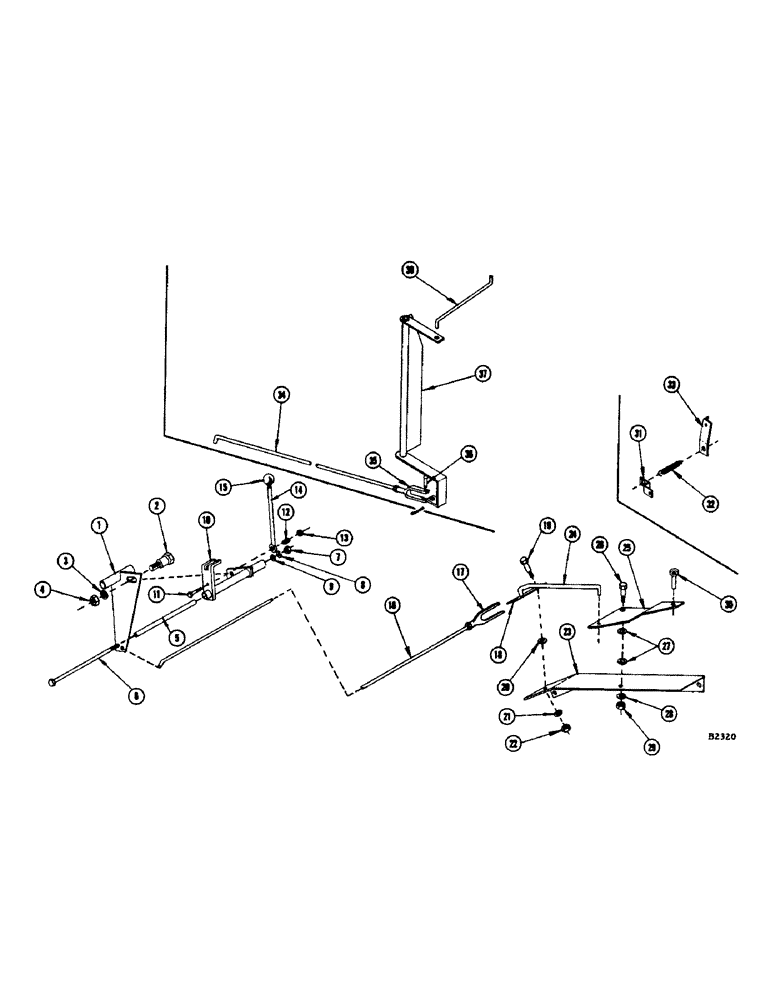

Запчасти Case IH 1060 (334) - THROTTLE CONTROL, A284 AND A301D ENGINES (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
F87027
ARM -throttle, lower
1шт.
2
O156CB
BOLT - anchor
1шт.
3
92-6
LOCK WASHER,3/8"
1шт.
4
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
5
F12984
SPACER - throttle control
1шт.
6
11-4128
BOLT - 1/4" x 8" rhd. sq. nk.
1шт.
7
25-104
NUT,1/4"-20, G5
1шт.
8
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
9
195-18
WASHER,1/4"
- flat 1/4"
1шт.
10
F87025
ARM - throttle control
1шт.
11
14-424
SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5
BOLT - 1/4" x 1-1/2" N.F. hex.
1шт.
12
A30370
SPRING - throttle control
1шт.
13
131-1
LOCK NUT,1/4"-28, GB
NUT - 1/4" ESNA 29-E-048
1шт.
14
F13054
LEVER - throttle control
1шт.
15
F21683
KNOB
- throttle control lever
1шт.
16
F13069
SCREW
ROD - throttle (Grain)
1шт.
NUT - 1/4" N.F. hex. (25-114)
1шт.
PIN - clevis (141-2)
1шт.
PIN - 1/16" x 1/2" cotter (132-5) 3/32" x 5/8" cotter (132-25)
1шт.
17
213-2
ADJUSTABLE CLEVIS,1/4"-28 x 2"
CLEVIS - 1/4"
1шт.
18
F13070
LEVER - throttle pivot
1шт.
19
O156CB
BOLT - anchor, for ref. 18 and 23
1шт.
20
F12966
WASHER
1шт.
21
92-6
LOCK WASHER,3/8"
1шт.
22
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
23
F11166
ANGLE - upper, throttle pivot support
1шт.
BOLT - 3/32" x 1/2" cotter (132-24)
2шт.
25
F10122
BELLCRANK - throttle rod
1шт.
26
O156CB
BOLT - anchor, throttle bellcrank
1шт.
27
A26381
WASHER
- (1" O.D. x 17/32" I.D. #16 ga.) For ref. 26
2шт.
28
92-6
LOCK WASHER,3/8"
1шт.
29
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
30
F8784
STUD - throttle rod
1шт.
NUT - 3/8" N.F. hex. (25-116)
2шт.
31
F9906
CLIP - throttle return spring
1шт.
32
O183N
SPRING
1шт.
33
F8783
CLIP - throttle return spring
1шт.
34
F13127
SCREW
ROD - throttle, front (Bagger)
1шт.
35
213-2
ADJUSTABLE CLEVIS,1/4"-28 x 2"
CLEVIS - 1/4"
1шт.
36
141-2
CLEVIS PIN,1/4" x .770"
PIN - clevis
1шт.
37
F87060
PIVOT - throttle rod (Bagger)
1шт.
38
F13128
ROD - throttle, rear (Bagger)
1шт.
PIN - 3/32" x 5/8" cotter (132-25)
2шт.
Выбрано товаров: 43
