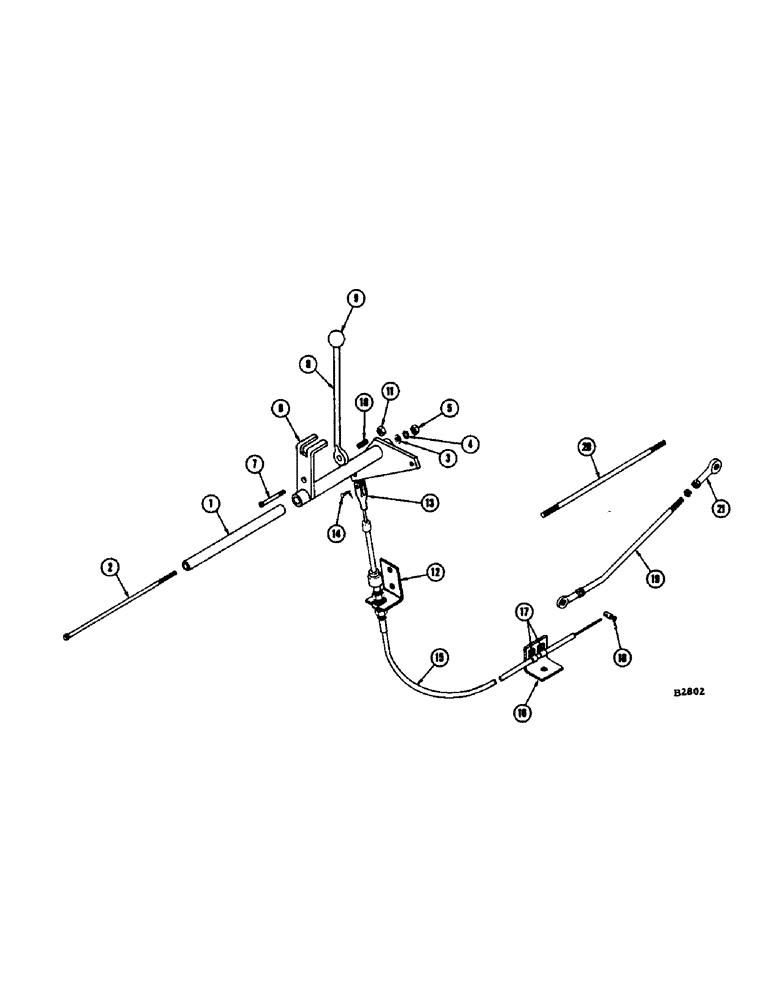

Запчасти Case IH 1060 (333A) - THROTTLE CONTROL LINKAGE, CHRYSLER LH-318, SERIAL NUMBER 8357001 AND AFTER (10) - ENGINE

1

F12984

SPACER - throttle control

1шт.

2

11-4128

BOLT - 1/4" x 8" rhd. sq. nk.

1шт.

3

195-18

WASHER,1/4"

- flat 1/4"

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

25-104

NUT,1/4"-20, G5

1шт.

6

F88348

ARM - throttle control

1шт.

7

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex.

1шт.

8

F13054

LEVER - throttle control

1шт.

9

F21683

KNOB

- throttle control lever

1шт.

10

A30370

SPRING - throttle control

1шт.

11

131-1

LOCK NUT,1/4"-28, GB

NUT - 1/4" ESNA #29-E-048

1шт.

12

F13950

BRACKET - front, throttle cable

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412)

2шт.

NUT - 1/4" N.F. hex. (25-114) LW (92-4)

2шт.

13

213-1

ADJUSTABLE CLEVIS,#10-32

CLEVIS - for F88524 cable

1шт.

NUT - #10-32 N.F. hex. (129-27)

1шт.

14

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, for 213-1

1шт.

PIN - cotter, 1/16" x 1/2" (132-5)

1шт.

15

F88524

CABLE - throttle

1шт.

16

F14981

BRACKET - throttle cable (Engine end)

1шт.

BOLT - 5/16" x 1/2" N.C. hex. (13-58) LW (92-5)

1шт.

17

F13942

CLIP - closed

2шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) wshr. (195-18)

2шт.

NUT - 1/4" N.F. hex. (25-114) LW (92-4)

2шт.

18

F14379

CLAMP

- wire, for cable

1шт.

19

F13856

LINKAGE - carburetor to governor (Gas)

1шт.

NUT - 1/4" N.F. hex. (129-121)

2шт.

20

F12690

LINKAGE - carburetor to governor (LP)

1шт.

NUT - 1/4" N.F. hex. (129-121)

2шт.

21

F13857

BEARING, BALL

BALL JOINT

2шт.

BOLT - 1/4" x 7/8" N.F. hex. (114-7) nut (129-121)

2шт.
