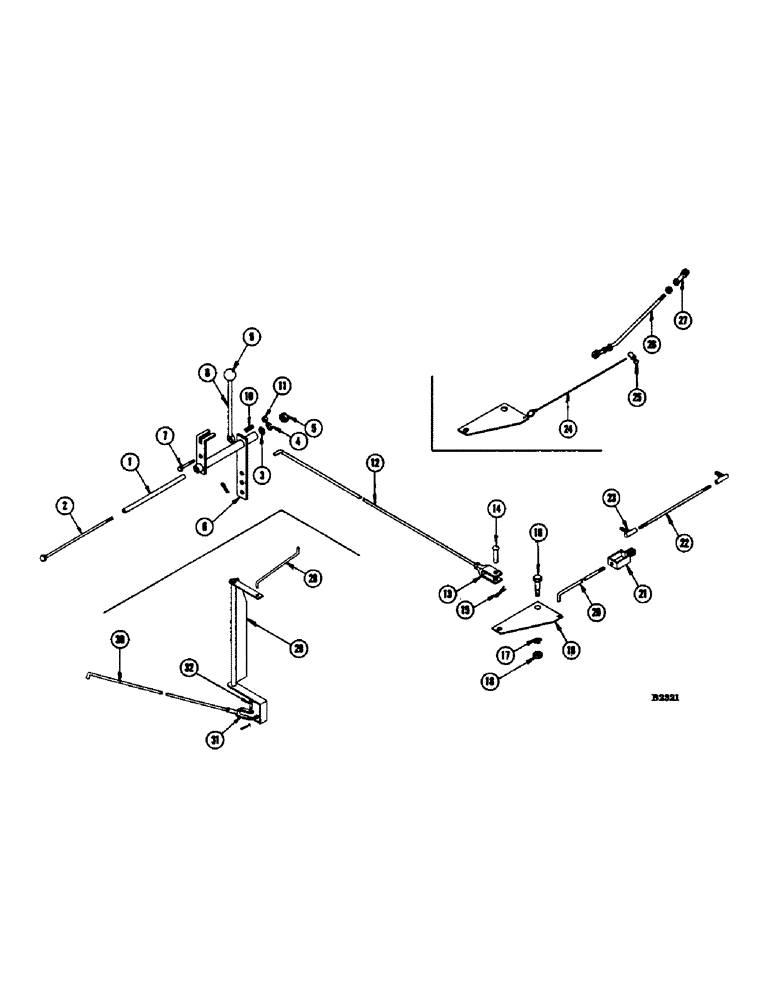

Запчасти Case IH 1060 (332) - THROTTLE CONTROL LINKAGE, CHRYSLER H-318 AND LH-318 ENGINES, BEFORE SERIAL NUMBER 8357001 (10) - ENGINE

1

F12984

SPACER - throttle control

1шт.

2

11-4128

BOLT - 1/4" x 8" rhd. sq. nk.

1шт.

3

195-18

WASHER,1/4"

- flat 1/4"

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

25-104

NUT,1/4"-20, G5

1шт.

6

F87026

ARM - throttle control

1шт.

7

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex.

1шт.

8

F13054

LEVER - throttle control

1шт.

9

F21683

KNOB

- throttle control lever

1шт.

10

A30370

SPRING - throttle control

1шт.

11

131-1

LOCK NUT,1/4"-28, GB

NUT - 1/4" ESNA 29-E-048

1шт.

12

F13072

ROD - throttle

1шт.

NUT - 1/4" N.F. hex. (25-114)

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

1шт.

13

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - for ref. 12

1шт.

14

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, for ref. 13

1шт.

15

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , For ref. 14 1/16" x 1/2"

1шт.

16

O1444CS

BOLT - shoulder (For bellcrank)

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

19

F79438

BELLCRANK - throttle

1шт.

20

F12685

ROD - throttle, bellcrank to carburetor (H-318)

1шт.

NUT - 1/4" N.F. hex. (25-114)

2шт.

PIN - 3/32" x 1/2" cotter (132-24) L.W. 1/4" (92-4)

1шт.

21

F12965

CLEVIS - for ref. 20 (H-318)

1шт.

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

1шт.

WASHER - 1/4" standard flat (195-518)

1шт.

PIN - 1/16" x 1/2" cotter (132-5)

1шт.

22

F12690

LINKAGE - throttle, carburetor to governor (H-318)

1шт.

NUT - 1/4" N.F. hex. (129-121) L.W. (193-44)

2шт.

23

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball (H-318)

2шт.

NUT - 1/4" N.F. hex. jam (129-161)

2шт.

WASHER - 1/4" standard flat (195-4)

2шт.

24

F13858

WIRE - bellcrank to carburetor (LH-318)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) dbl. nut (25-114)

1шт.

25

F14379

CLAMP

- wire, for ref. 24 (LH-318) Replaces O7029AB

1шт.

26

F13856

LINKAGE - throttle, carburetor to governor (LH-318, gas)

1шт.

F12690

LINKAGE - throttle, carburetor to governor (LH-318, LP)

1шт.

27

F13857

BEARING, BALL

JOINT - ball (LH-318)

2шт.

BOLT - 1/4" x 7/8" N.F. hex. (114-7) nut (129-121)

2шт.

28

F13394

ROD - throttle, rear (Bagger)

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

2шт.

29

F87060

PIVOT - throttle rod (Bagger)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

2шт.

30

F13395

ROD - throttle, front (Bagger)

1шт.

31

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - for ref. 30

1шт.

NUT - 1/4" N.F. hex. (25-114)

1шт.

32

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

1шт.

PIN - 1/16" x 1/2" cotter (132-5)

1шт.
