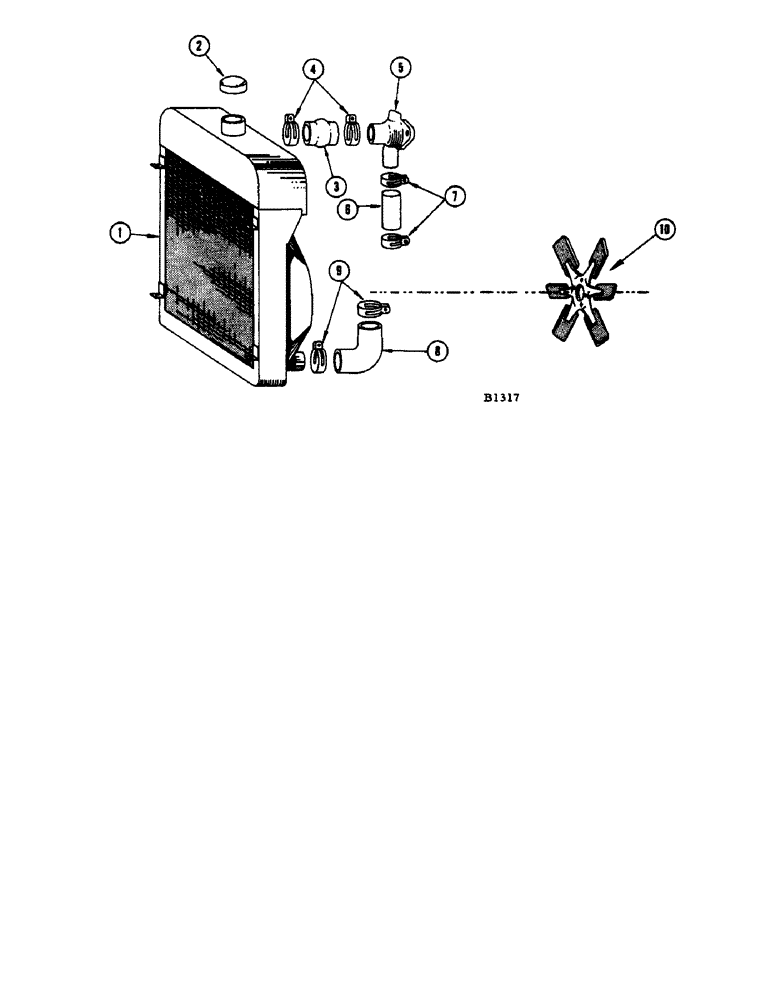

Запчасти Case IH 1060 (330) - RADIATOR, A-284 G-F, A284 LP-F, A301 D-F ENGINES (10) - ENGINE

1

F8066

RADIATOR

1шт.

PLUG - 1/4" sq. hd. pipe (221-12)

1шт.

2

F5922

CAP

- radiator pressure

1шт.

3

F8067

RADIATOR HOSE

HOSE - radiator inlet

1шт.

4

214-35

CLAMP

- #18 hose

2шт.

5

A20374

HOUSING

- thermostat, water manifold

1шт.

BOLT - 3/8" x 1-1/8" N.C. hex. (13-618) L.W. (92-6)

2шт.

PLUG - 3/8" sq. hd. pipe (221-13)

1шт.

6

A28115

HOSE

- water by-pass

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - by-pass hose (1-3/16" to 1-3/4")

2шт.

8

F10159

HOSE

- water, Serial Range: pump-radiator

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

10

F9363

FAN - radiator

1шт.

F14928

"V" BELT - fan (not shown) Replaces A11444

1шт.

F12047

SEAL - top and bottom radiator (A301-D)

2шт.
