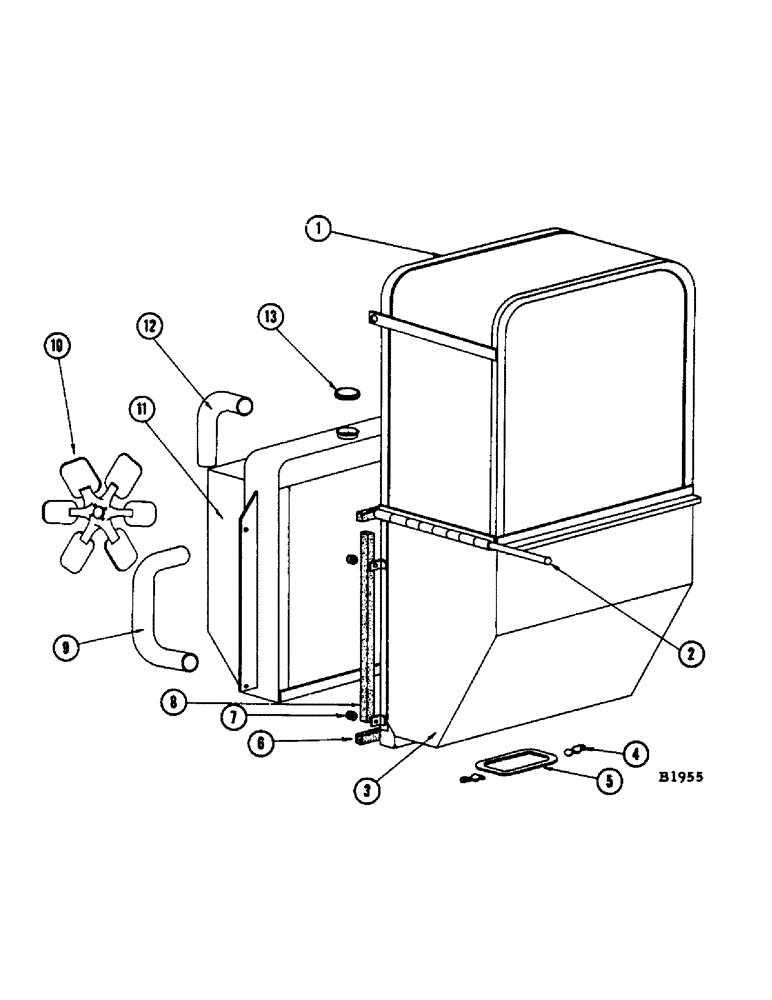

Запчасти Case IH 1060 (328) - RADIATOR FRAME AND SCREEN, CHRYSLER H-318 AND LH-318 ENGINES (10) - ENGINE

1

F86778

SCREEN - air

1шт.

2

F9318

ROD - hinge

1шт.

3

F86755

STACK - radiator

1шт.

4

F86525

CLIP

- access door

2шт.

RIVET - 3/16" x 1/4" #2160 semi-tub (151-123)

2шт.

NUT - 1/4" N.C. wing (129-404) L.W. (92-4)

2шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4)

1шт.

5

F8077

DOOR - access

1шт.

6

F12047

SEAL - top and bottom

2шт.

7

F10666

CUSHION - for radiator bracket

4шт.

8

F12057

SEAL - side

2шт.

9

F12675

RADIATOR HOSE,1.50" ID x 7.03", SAE 20R4

Lower 1.50" ID x 7.03", SAE 20R4

1шт.

CLAMP - #10-1/2 hose (214-22)

2шт.

10

F86749

FAN - radiator

1шт.

BOLT - 5/16" x 2-1/2" N.C. hex. (13-540) L.W. (92-5)

4шт.

11

F12693

RADIATOR

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620)

4шт.

NUT - 3/8" N.F. hex. jam (25-156)

8шт.

PLUG - 1/4" sq. pipe (221-12)

1шт.

12

F12674

HOSE - radiator, top (Chrysler H-318)

1шт.

F14157

HOSE - radiator, top (Chrysler LH-318)

1шт.

CLAMP - #10-1/2 hose (214-22)

2шт.

13

F5922

CAP

- radiator pressure

1шт.
