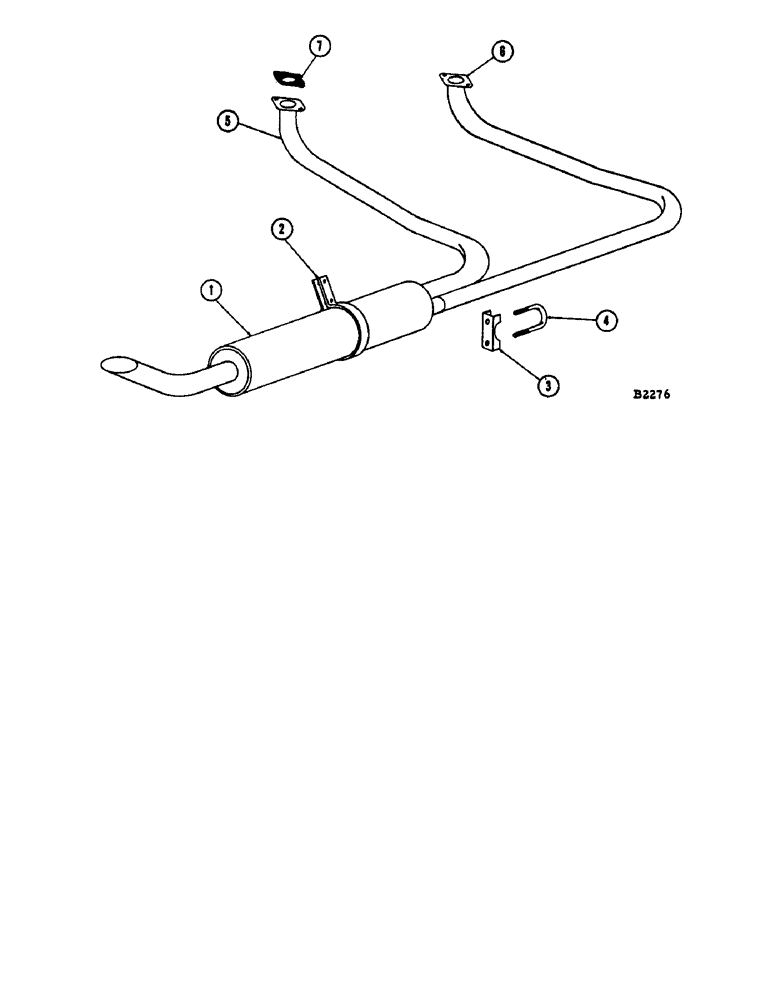

Запчасти Case IH 1060 (324) - MUFFLER AND EXHAUST PIPES, CHRYSLER H-318 ENGINE (10) - ENGINE

1

F86760

MUFFLER

- engine

1шт.

2

F12704

BRACKET - muffler

2шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (14-524) nut (25-115)

2шт.

3

F12705

CLAMP - "U" bolt

2шт.

4

F12706

"U" BOLT - muffler

2шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

4шт.

5

F86759

PIPE - rear exhaust

1шт.

BOLT - 7/16" x 1-1/2" N.C. hex. (13-724) nut (25-107)

2шт.

6

F86758

PIPE - front exhaust

1шт.

BOLT - 7/16" x 1-1/2" N.C. hex. (13-724) nut (25-107)

2шт.

7

F12701

GASKET - exhaust pipe flange

2шт.
