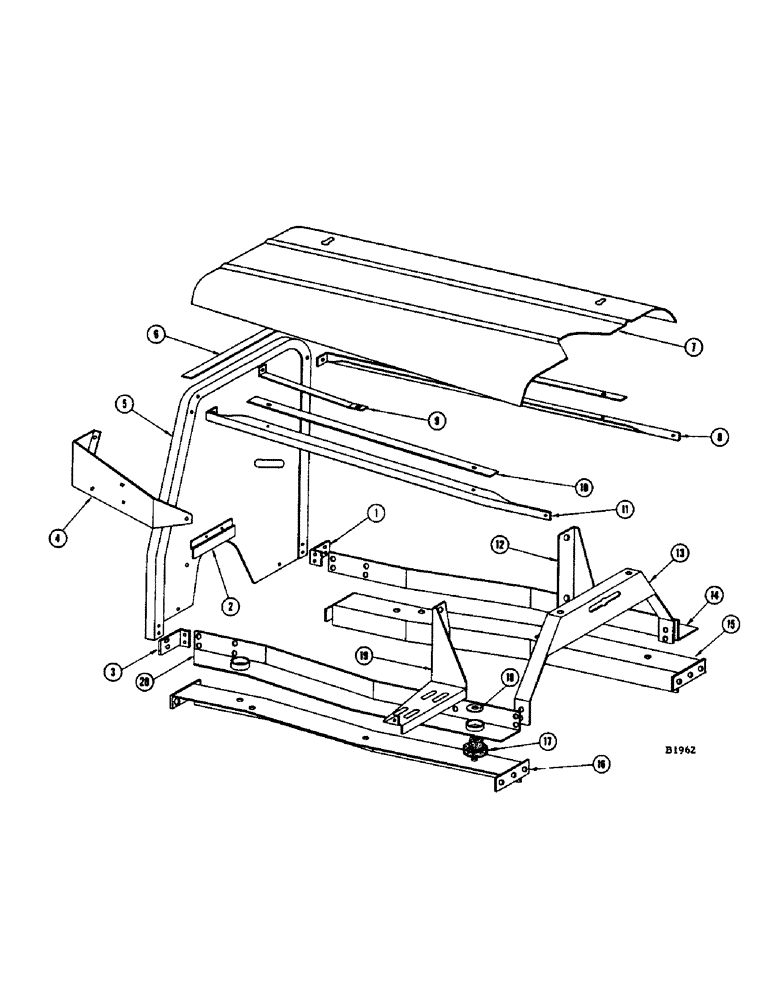

Запчасти Case IH 1060 (322) - ENGINE HOODS AND SUPPORTS, A284 G-F, A284 LP-F, A301 D-F ENGINES (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
F9488
BRACKET - L.H. front, firewall support
1шт.
BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)
2шт.
2
F79749
BRACKET - center support, for firewall
1шт.
BOLT - 3/8" x 3/4" N.C. hex. (13-612) L.W. (92-6)
2шт.
3
F9487
BRACKET - L.H. rear, firewall support
1шт.
BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)
2шт.
4
F12194
SUPPORT - pivot, air intake
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)
2шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)
2шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) Wing nut (129-419)
2шт.
WASHER - 5/16" plain (195-521) L.W. (192-20)
2шт.
5
F79448
FIREWALL - L.H. end, engine
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
3шт.
BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)
1шт.
WASHER - 1/4" plain (195-18) L.W. (92-4)
1шт.
6
F11279
SEAL - felt
1шт.
7
F79480
HOOD - engine
1шт.
8
F79447
ANGLE - front, engine hood support
1шт.
9
F11188
BRACE - firewall
1шт.
BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)
1шт.
10
F11280
SEAL - felt
2шт.
SEALER - EC rubberized cement (345-2)
1шт.
11
F79450
ANGLE - upper rear, engine support
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
2шт.
12
F8028
SUPPORT - front, engine
1шт.
BOLT - 3/4" x 2" N.F. hex. (14-1232) nut (25-1112)
2шт.
13
F77020
SUPPORT - radiator and stack
1шт.
14
F77019
SCREW
ANGLE - upper front, engine support
1шт.
15
F77613
ANGLE - lower front, engine mounting
1шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)
3шт.
16
F86578
ANGLE - lower rear, engine mounting
1шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)
3шт.
17
F9481
MOUNTING - (Rubber) Engine
4шт.
18
F9483
WASHER - engine mounting
4шт.
19
F77615
BRACKET - support, engine and hydraulic pump drive
1шт.
BOLT - 3/4" x 2" N.F. hex. (14-1232) nut (25-1112)
2шт.
20
F79748
ANGLE - upper rear, engine support
1шт.
BOLT - 5/8" N.F. hex. (14-1028) nut (25-1110)
2шт.
BOLT - 7/16" x 1" N.F. hex. (14-716) nut (25-117)
4шт.
Выбрано товаров: 39
