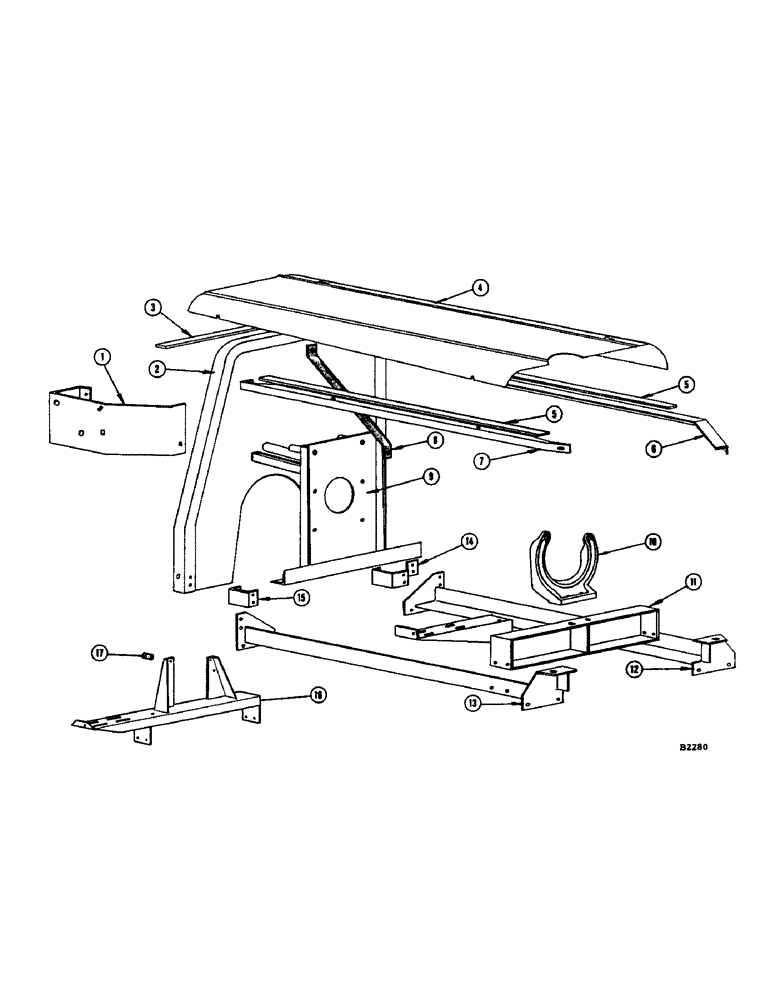

Запчасти Case IH 1060 (320) - ENGINE HOOD AND SUPPORTS, CHRYSLER H-318 AND LH-318 ENGINES (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
F12691
SUPPORT - pivot air intake
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)
2шт.
BOLT - 3/8" x 7/8" N.C. hex. (13-614) L.W. (92-6)
1шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) dbl. nut (25-116)
1шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) Wing nut (129-419) L.W. (192-20) and fl. wshr. (195-521)
2шт.
F88523
FIREWALL - (#8357001 and after)
1шт.
2
F88368
FIREWALL - (Replaces F86748) Before #8357001
1шт.
F86748
FIREWALL - (Replaced by F88368 when stock is exhausted)
1шт.
BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)
4шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
1шт.
3
F12933
SEAL - engine hood, L.H.
1шт.
4
F86777
HOOD - engine
1шт.
5
F12733
SEAL - engine hood
2шт.
6
F86756
ANGLE - hood support, front
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
2шт.
7
F86757
ANGLE - hood support, rear
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
2шт.
8
F12688
BRACE - firewall
1шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)
1шт.
BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)
1шт.
9
F87576
MOUNT - engine, left (Before #8357001) Replaced by F88688 when stocks are exhausted
1шт.
F88688
MOUNT - engine, left (#8357001 and after)
1шт.
10
F12649
BRACKET - right mounting (Before #8349001)
1шт.
BOLT - 3/8" x 3-1/2" N.C. hex. (13-656) L.W. (92-6)
1шт.
BOLT - 3/8" x 3-1/4" N.C. hex. (13-652) L.W. (92-6)
3шт.
11
F86737
MOUNT - engine, right (Before #8349001)
1шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)
2шт.
WASHER - 3/8" flat (195-25) L.W. (92-6)
2шт.
12
F86742
RAIL - engine mounting, front (Before #8349001)
1шт.
F88392
RAIL - engine mounting, front (#8349001 and after)
1шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)
2шт.
WASHER - 3/8" flat (195-25) L.W. (92-6)
2шт.
BOLT - 7/16" x 1" N.F. hex. (14-716) nut (25-117)
1шт.
13
F86741
RAIL - engine mounting, rear (Before #8349001)
1шт.
F88391
RAIL - engine mounting, rear (#8349001 and after)
1шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)
2шт.
WASHER - 3/8" flat (195-25) L.W. (92-6)
2шт.
BOLT - 7/16" x 1" N.F. hex. (14-716) nut (25-117)
1шт.
O935L
SPACER - for F88391 and F88392
2шт.
14
F11187
BRACKET - front L.H. motor hood
1шт.
BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)
2шт.
15
F10702
BRACKET - rear L.H. motor hood
1шт.
BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)
2шт.
16
F88388
MOUNT - engine, right (#8349001 and after)
1шт.
BOLT - 3/8" x 3" N.C. hex. (13-648) Lockwasher (92-6)
4шт.
17
F14863
SPACER - for F88388
3шт.
Выбрано товаров: 46
