Запчасти Case IH 1060 (314) - AIR CLEANER, A284-G, A284-LP, A301-D, CHRYSLER H-318 (10) - ENGINE

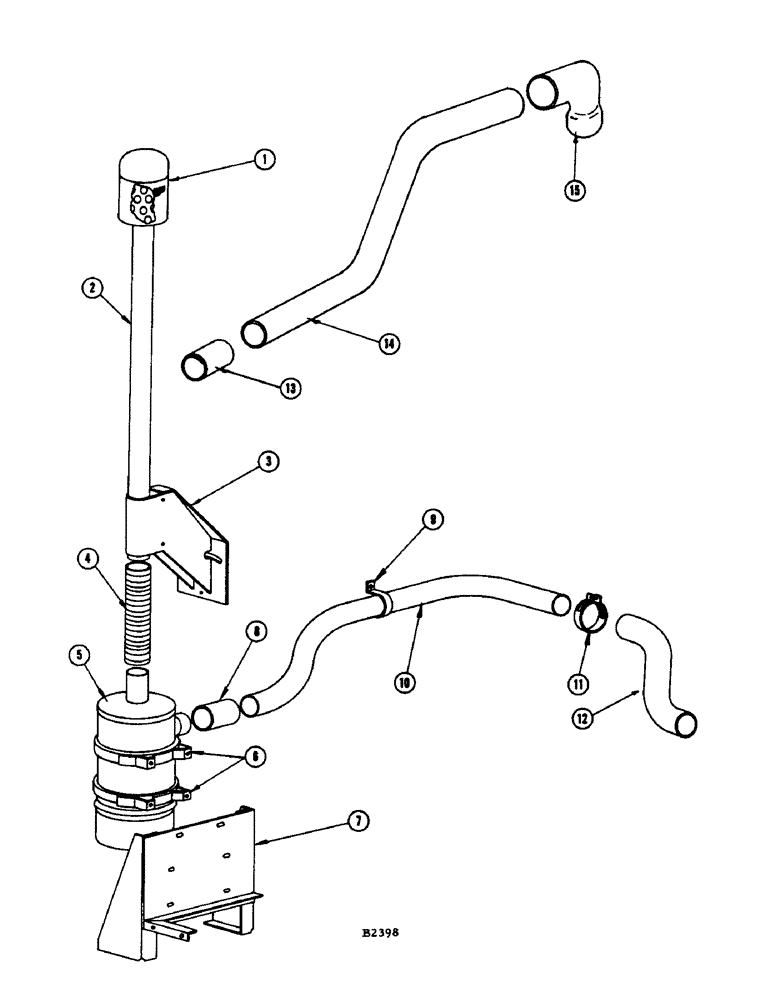

Схема запчастей Case IH 1060 - (314) - AIR CLEANER, A284-G, A284-LP, A301-D, CHRYSLER H-318 (10) - ENGINE
3
14
4
12
8
7
8
11
2
13
1
10
5
6

Артикул

Название

Примечание

Количество

1

F83641

CLEANER

PRE-SCREENER - air intake

1шт.

2

F12107

TUBE - pre-cleaner to air cleaner

1шт.

3

F86160

SUPPORT - air intake

1шт.

BOLT - 5/16" x 2-3/4" N.F. hex. (14-548) nut (25-115)

2шт.

4

F10287

HOSE - air cleaner end of F12107

1шт.

CLAMP - 44P wittek hose (214-262)

2шт.

5

F86313

CLEANER - air

1шт.

6

F77624

X

BAND - mounting, for air cleaner

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

4шт.

7

F77549

SUPPORT - for air cleaner and oil reservoir

1шт.

8

F9589

X

HOSE - for F10124 tube

1шт.

9

F9505

CLAMP

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (13-412) nut (25-114)

2шт.

10

F10124

TUBE - air cleaner to carburetor (A284G-F, A284LP-F and A301D-F)

1шт.

11

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose 44P wittek

4шт.

12

F10125

TUBE - air cleaner to carburetor (A284G-F and A284LP-F engine)

1шт.

F10128

HOSE - engine end of F10124 tube (Diesel engine) See F10125

1шт.

13

F9589

X

HOSE - for F12684 (H-318)

1шт.

CLAMP - 44P wittek hose (214-262)

2шт.

14

F12684

TUBE - air cleaner to carburetor (Chrysler)

1шт.

CLAMP - 44P wittek hose (214-262)

1шт.

15

F12683

ELBOW - air cleaner, tube to carburetor (Chrysler)

1шт.

CLAMP - 44P wittek hose (214-262)

1шт.

Выбрано товаров: 23
