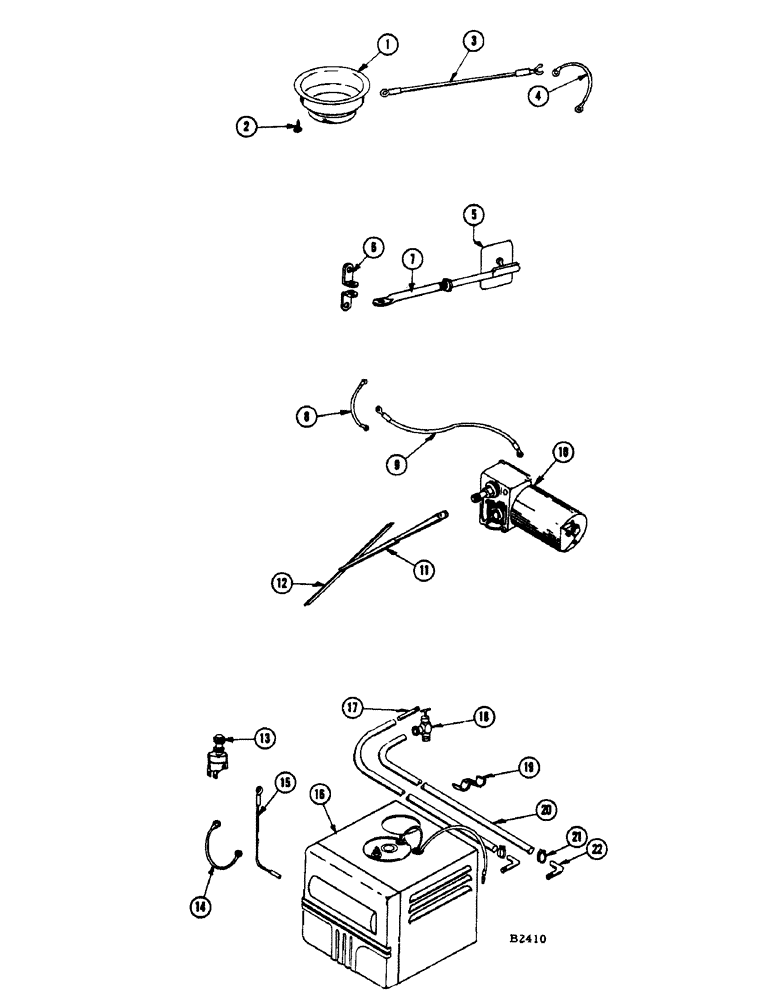

Запчасти Case IH 1060 (222) - CAB ATTACHMENTS, DOMELIGHT ATTACHMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F87189

DOMELIGHT - 12-volt

1шт.

B50217

BULB

- (Mfg. #93)

1шт.

2

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" type "A" self-tapping

3шт.

3

F87190

WIRE ASSEMBLY - light to switch panel

1шт.

4

F87185

WIRE - jumper

1шт.

5

F87186

MIRROR - head assembly, rear viw attachment

1шт.

6

F87188

BRACKET, rear view mirror attachment

1шт.

7

F87187

ARM - extension, rear view mirror attachment

1шт.

8

F87185

WIRE - jumper, windshield wiper attachment

1шт.

9

F87198

WIRE ASSEMBLY - 84", windshield wiper attachment

1шт.

10

F87197

MOTOR - wiper, 12-volt, windshield wiper attachment

1шт.

11

A10893

ARM

- wiper, 14" length, windshield wiper attachment

1шт.

12

A10894

WINDSHIELD WIPER

BLADE - wiper, 14" length, windshield wiper attachment

1шт.

214-1101

CLIP - wire, windshield wiper attachment

3шт.

13

F13231

SCREW

SWITCH - 3-speed w/illuminated knob, heater attachment

1шт.

BULB - (Mfg. #W53), heater attachment

1шт.

14

F87185

WIRE - jumper, heater attachment

1шт.

15

F87184

WIRE ASSEMBLY - switch to heater (108" long), attachment

1шт.

F21330

CONNECTOR, heater attachment

1шт.

16

F87183

HEATER - 12-volt, attachment

1шт.

F14993

MOTOR

heater attachment

1шт.

F14994

FAN, heater attachment

1шт.

F14995

CORE - radiator, heater attachment

1шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Heater attachment Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Heater attachment 1/4"

3шт.

17

A19940

PIPE

NIPPLE - 3/8" NPT straight, heater attachment

1шт.

18

A16764

VALVE

- shut off, 3/8" NPT x 5/8" hose, heater attachment

1шт.

19

F13234

CLAMP - double hose, heater attachment

4шт.

20

F13233

SCREW

HOSE - heater (5/8" I.D. x 134"), heater attachment

2шт.

21

F13232

CLAMP - hose (Screw type), heater attachment

4шт.

22

A19941

PACKAGE

ELBOW - 3/8" NPT 90 degrees, heater attachment

2шт.

F13235

SCREW

CLIP - wire (Not shown), heater attachment

5шт.
