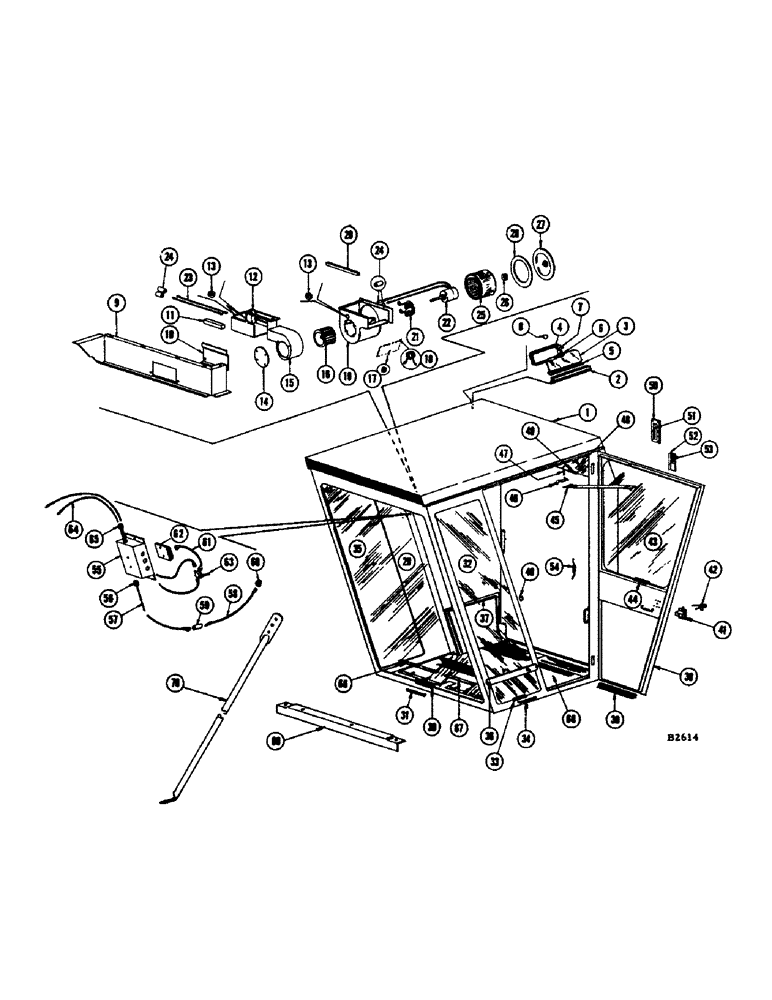

Запчасти Case IH 1060 (218) - OPERATORS CAB, SERIAL NUMBER 8311400 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F87761M

CAB - operator's (Machinery item)

1шт.

2

F91897

WINDOW - hinged, right side rear

1шт.

3

F22423

GLASS - right side rear window

1шт.

4

F22427

MOULDING - rubber channel (65")

1шт.

5

F22424

FILLER STRIP - right side rear glass (25-1/4")

1шт.

6

F22425

FILLER STRIP - retainer (3")

1шт.

7

F22422

RETAINER - channel

1шт.

8

F22426

STOP

BUMPER - rubber (Replaced by F22816 when stock is exh.)

1шт.

F22816

BUMPER - rubber (Replaces F22426)

1шт.

9

F91907

WRAPPER - front, pressurizer

1шт.

10

F22440

COVER - wrapper

1шт.

11

F22441

SEAL - wrapper (1" x 1-1/4" x 6" foam)

1шт.

12

F91906

HOUSING - air duct (Includes doors)

1шт.

13

F22434

GROMMET - wire (2 for ref. 12 and 2 for ref. 19)

4шт.

14

F22433

PLATE - cover, blower housing

1шт.

15

F91902

HOUSING - blower

1шт.

16

F91904

WHEEL - blower

1шт.

17

F22439

CAP - rubber, for damper door handle

1шт.

18

F22438

SPRING - damper door

1шт.

19

F91899

HOUSING - filter

1шт.

20

F22436

SEAL - filter housing (1/8" x 1/4" x 11")

1шт.

21

F91905

BRACKET

- support, blower

1шт.

22

F91903

MOTOR

BLOWER - 12 volt

1шт.

23

F91908

WIRE - blower

2шт.

24

F21330

CONNECTOR

1шт.

25

F22437

FILTER

- pressurizer

1шт.

26

F22435

CLIP - speed nut, blower cover

1шт.

27

F91900

COVER - blower

1шт.

28

F22432

GASKET

1шт.

29

F21314

WINDSHIELD - glass

1шт.

30

F21340

MOLDING

MOULDING - windshield glass (184")

1шт.

31

F21341

FILLING STRIP

FILLER STRIP - windshield glass (184")

1шт.

32

F21315

GLASS - side, front L.H.

1шт.

33

F21359

MOLDING

MOULDING - front, L.H. glass (136")

1шт.

34

F21360

FILLING STRIP

FILLER STRIP - front L.H. glass (136")

1шт.

35

F22418

GLASS - side, front R.H.

1шт.

F22419

STRIP

FILLER STRIP - front R.H. glass (144")

1шт.

F22420

SEAL

MOULDING - front R.H. glass (144")

1шт.

36

F84827

BAR

1шт.

SCREW - 3/8" x 2-1/2" rhd. mach. (75-640)

1шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (113-209)

1шт.

NUT - 3/8" N.C. hex. (129-103) L.W. (192-21)

2шт.

F12989

SPACER - bar (Not shown)

2шт.

37

F22133

SEAL - polyether (60")

1шт.

38

F84804

DOOR

1шт.

39

F21324

SEAL - weather, door (162-5/8")

1шт.

40

F22421

PLATE

STRIKER - door latch

1шт.

SCREW - 1/4" x 3/4" oval hd. mach. (68-412) nut (25-104)

2шт.

LOCKWASHER - 1/4" ctsk. ext. Shakeproof (193-52)

2шт.

LOCKWASHER - 1/4" Shakeproof ext. (193-8) Fl. wshr. (95-4)

2шт.

41

F84806

LATCH - with lever, inside

1шт.

SCREW - #10 x 1/2" N.C. truss hd. mach. (175-97) and int. L.W. (193-6)

4шт.

42

F84805

HANDLE - door, outside

1шт.

SCREW - #10 x 3/8" N.C. truss hd. mach. (175-95) and int. L.W. (193-6)

2шт.

43

F21321

GLASS - door

1шт.

44

F21365

MOLDING

MOULDING - door, glass (95-1/2")

1шт.

F21366

STRIP

FILLER STRIP - door, glass (95-1/2")

1шт.

45

F84807

ROD - door

1шт.

WASHER - 3/8" std. flat (195-525) nut (131-6)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

46

F22428

DOOR CHECK

1шт.

47

F22112

SPRING - door rod

1шт.

48

F21391

GLASS - rear

1шт.

49

F21373

MOLDING

MOULDING - rear glass (84")

1шт.

F21372

FILLING STRIP

FILLER STRIP - rear glass (84")

1шт.

50

F84826

PANEL - filler

1шт.

51

F22130

SEAL - ensolite 1/4"

1шт.

52

F84825

COVER - rear

1шт.

53

F22129

SEAL - neoprene 1/16"

1шт.

54

F21393

CLEAT - line (For folding ladder line)

1шт.

SCREW - #10 - 24 x 3/4" oval hd. (179-100)

2шт.

NUT - #10 - 24 self locking (131-505)

2шт.

WASHER - #10 std. flat (195-12)

2шт.

55

F22290

BOX - terminal

1шт.

56

F11046

GROMMET - (Rubber) Terminal to ignition wire

1шт.

57

F22293

WIRE -, Serial Range: terminal-igntion

1шт.

F22125

CLIP - wire (Single)

3шт.

58

F84677

WIRE - to ignition switch opposite terminal

1шт.

59

F21330

CONNECTOR

1шт.

60

F53322

GROMMET - in terminal box front panel

1шт.

61

F22291

WIRE - jumper

1шт.

62

F22294

BLOCK - terminal (Fuse)

1шт.

63

F22295

SWITCH

TOGGLE SWITCH - blower

1шт.

64

F22292

WIRE - terminal, Serial Range: box-blower

2шт.

F22386

CLIP - support (Double)

3шт.

65

F54096

GROMMET

- (Rubber) blower wire

1шт.

66

F13230

SCREW

STRIP - hold (Floormat) R.H.

1шт.

67

F13229

SCREW

STRIP - hold (Floormat) L.H.

1шт.

68

F13221

SCREW

MAT - floor

1шт.

69

F14476

ANGLE - cab reinforcing

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-319) Fl. wshr. (195-525)

2шт.

NUT - 3/8" N.C. hex. (129-103) Lockwasher (192-21)

2шт.

70

F87929

SUPPORT BRACE

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

4шт.
