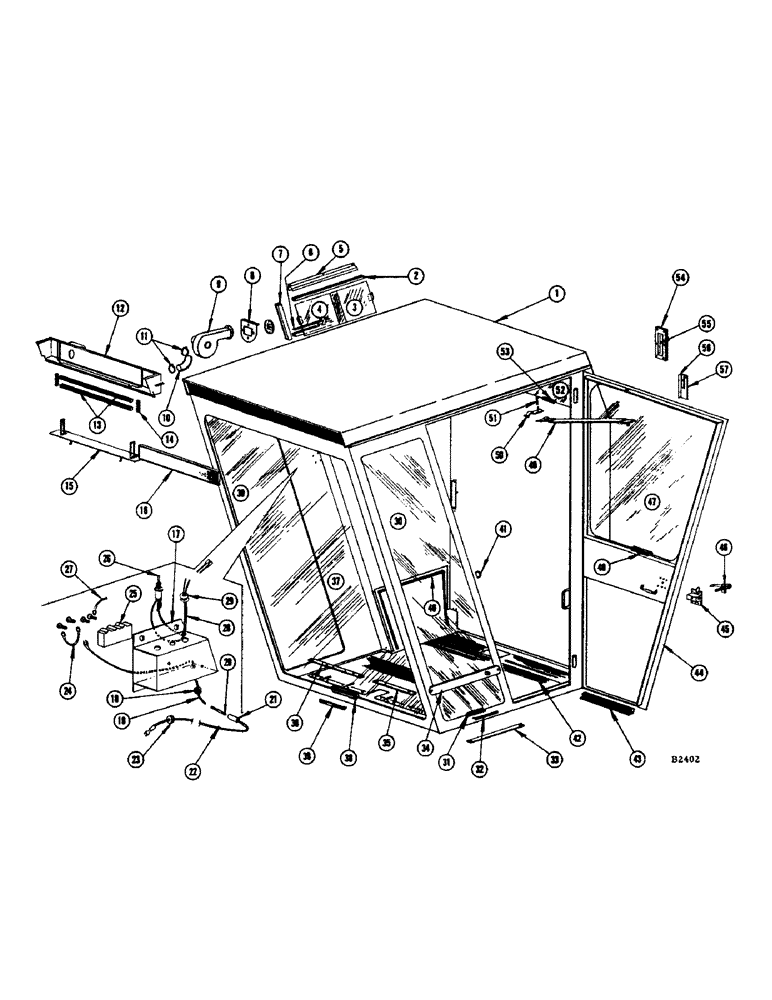

Запчасти Case IH 1060 (214) - OPERATORS CAB, BEFORE SERIAL NUMBER 8311400 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F87151M

CAB - operator's (Machinery item)

1шт.

2

F22128

SEAL

RUN - glass 24-3/4"

2шт.

3

F86984

GLASS - sliding, rear (Includes grip)

1шт.

4

F86983

GLASS - sliding, front (Includes grip)

1шт.

5

F86982

RETAINER - sliding window

1шт.

SCREW - 1/4" x 1/2" truss hd. mach. (193-515)

3шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

3шт.

6

F12992

PLASTIC - 24-3/4" lower glass run

2шт.

7

F22134

RUN - glass 15-3/4"

2шт.

8

F22123

BRACKET - blower support

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (77-48)

2шт.

9

F84816

BLOWER - 12V (Includes deflector)

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (77-48)

4шт.

NUT - 5/16" N.C. hex. (129-102) L.W. (193-8)

4шт.

10

F84817

TUBE - air duct (Wire mold)

1шт.

11

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 4"

2шт.

12

F84821

AIR DUCT

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (77-48)

4шт.

NUT - 1/4" N.C. hex. (129-101) L.W. (192-19)

4шт.

SCREW - 5/16" x 1/2" N.C. truss hd. mach. (77-58)

4шт.

13

F22124

SEAL - polyether 28-1/4" long

2шт.

14

F22117

SEAL - polyether 6-3/4" long

2шт.

15

F84819

HOLDER - filter

1шт.

SCREW - 1/4" x 1" truss hd. N.C. mach. (77-48)

2шт.

STOP NUT - 1/4" - 20 ESNA (131-2)

2шт.

16

F84818

FILTER

- blower

1шт.

17

F84812

BOX - terminal

1шт.

SCREW - 1/4" x 1/2" truss hd. mach. (193-515) w/ext. tooth L.W.

4шт.

NUT - 1/4" (25-114) washer - flat 1/4" (195-18)

4шт.

18

F21348

GROMMET - terminal box, lower

1шт.

19

F84235

WIRE - front, terminal box to ignition

1шт.

20

F21352

TERMINAL

1шт.

21

F21330

CONNECTOR

1шт.

22

F84677

WIRE, Serial Range: --ignition

1шт.

23

F53322

GROMMET - for instrument console

1шт.

24

F21300

WIRE - jumper, front wire to switch

1шт.

25

F21332

STRIP - terminal

1шт.

26

F84815

SWITCH - blower

1шт.

27

F84813

WIRE -, Serial Range: terminal-switch

1шт.

28

F84814

WIRE - terminal, Serial Range: box-blower

2шт.

F21330

CONNECTOR

1шт.

F21352

TERMINAL

1шт.

29

F21347

GROMMET - blower wire

1шт.

30

F21315

GLASS - side, front L.H. and R.H.

2шт.

31

F21359

MOLDING

MOULDING - side glass (136")

2шт.

32

F21360

FILLING STRIP

FILLER STRIP - side glass (136")

2шт.

33

F22131

SPACER - cab (#16 ga.)

1шт.

F22132

SPACER - cab (#11 ga.)

1шт.

34

F84827

BAR

1шт.

SCREW - 3/8" x 2-1/2" rhd. mach. (75-640)

1шт.

BOLT - 3/8" x 1-1/2" N.C. hex. (113-209)

1шт.

NUT - 3/8" N.C. hex. (129-103) L.W. (129-21)

2шт.

F12989

SPACER - for bar (Not shown)

2шт.

35

F13229

SCREW

STRIP - hold (Floormat) L.H.

1шт.

36

F13230

SCREW

STRIP - hold (Floormat) R.H.

1шт.

37

F21314

WINDSHIELD - glass

1шт.

38

F21340

MOLDING

MOULDING - windshield glass (184")

1шт.

39

F21341

FILLING STRIP

FILLER STRIP - windshield (184")

1шт.

40

F22133

SEAL - polyether 60" long

1шт.

41

F21320

STRIKER - door latch

1шт.

SCREW - 1/4" x 3/4" oval hd. mach. (68-412) nut (25-114)

2шт.

LOCKWASHER - 1/4" crsk. ext. Shakeproof (193-52)

2шт.

LOCKWASHER - 1/4" Shakeproof ext. (193-8) F.W. (195-18)

2шт.

42

F13221

SCREW

MAT - floor

1шт.

43

F21324

SEAL - weather, door (162-5/8")

1шт.

44

F84804

DOOR

1шт.

45

F84806

LATCH - with lever, inside

1шт.

SCREW - #10 x 1/2" N.C. truss hd. mach. (175-97) and int. L.W. (193-6)

4шт.

46

F84805

HANDLE - door, outside

1шт.

SCREW - #10 x 3/8" N.C. truss hd. mach. (175-95) and int. L.W. (193-6)

2шт.

47

F21321

GLASS - door

1шт.

48

F21365

MOLDING

MOULDING - door glass (95-1/2")

1шт.

F21366

STRIP

FILLER STRIP - door glass (95-1/2")

1шт.

49

F84807

ROD - door

1шт.

WASHER - 3/8" std. flat (195-525) nut (131-6)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

50

F22111

CLIP

1шт.

51

F22112

SPRING - door rod

1шт.

52

F21391

GLASS - rear

1шт.

53

F21373

MOLDING

MOULDING - rear glass 84"

1шт.

F21372

FILLING STRIP

FILLER STRIP - rear glass 84"

1шт.

54

F84826

PANEL - filler

1шт.

55

F22130

SEAL - ensolite 1/4"

1шт.

56

F84825

COVER - rear

1шт.

57

F22129

SEAL - neoprene 1/16"

1шт.

F21393

CLEAT - line (Not shown)

1шт.

SCREW - #10 - 24 x 3/4" oval hd. (179-100)

2шт.

NUT - #10 - 24 self locking (131-505)

2шт.

WASHER - #10 std. flat (195-12)

2шт.

F22125

CLIP - wire (Not shown)

5шт.
