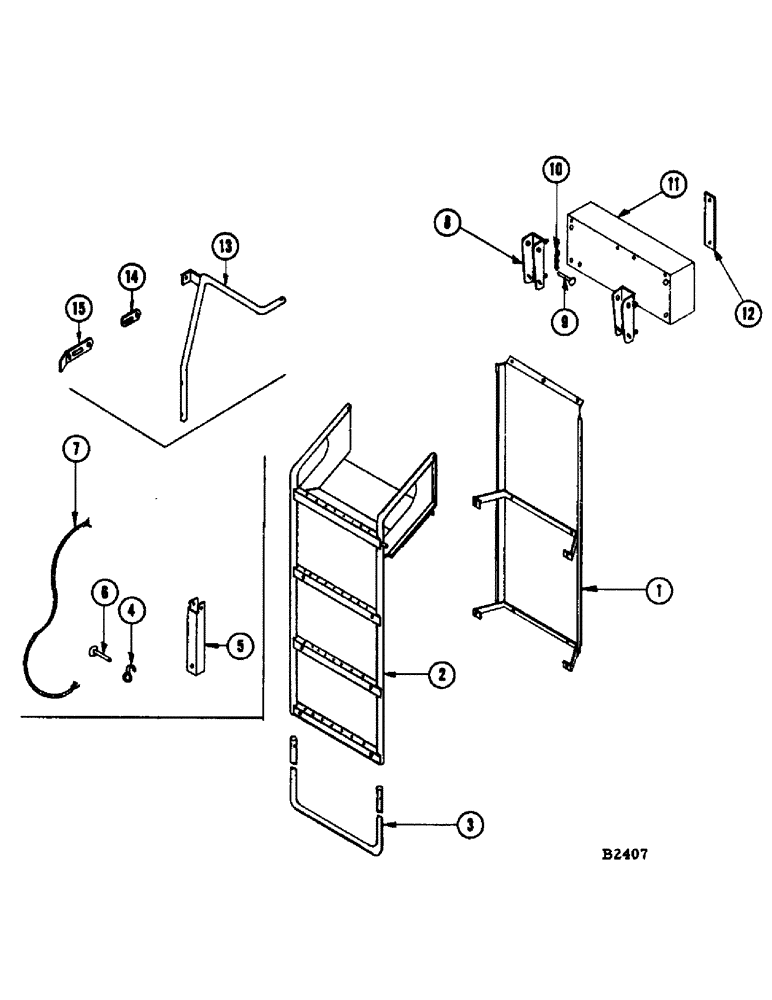

Запчасти Case IH 1060 (212) - FOLDING LADDER, FOR USE WITH CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F87672

SHIELD - back (Replaces F83168)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

4шт.

2

F83170

LADDER - folding (4-step) Replaced by F88117 when stock is exhausted)

1шт.

F88117

LADDER - folding (5-step) Replaces F83170

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (13-48) nut (25-104)

3шт.

3

F13341

STEP - extension (For F83170 - 4-step ladder)

1шт.

BOLT - 5/16" x 1-1/2" N.C. hex. (13-524) nut (25-105)

2шт.

4

F62224

"S" LINK

1шт.

5

F21368

LIFT - channel

1шт.

6

F62238

PIN - 5/16"

1шт.

COTTER - hair pin (136-154)

1шт.

7

NSS

NOT SOLD SEPARAT

ROPE - 1/4" x 134" cotton sash cord

1шт.

8

F87364

YOKE - pivot with screw (Replaces F84186)

2шт.

NUT - 3/8" N.C. hex. (25-106) Lockwasher (92-6)

4шт.

9

F17898

PIN

2шт.

10

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

11

F87259

EXTENSION - ladder

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (113-102) nut (129-102)

6шт.

12

F13342

STRIP - backing

1шт.

13

F87301

HANDRAIL - rear, folding ladder, without cab

1шт.

BOLT - 3/8" x 2" N.F. hex. (114-216) Lockwasher (192-21), rear handrail for folding ladder without cab

1шт.

14

F20504

PLATE - spring lock, rear handrail for folding ladder without cab

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-108), rear handrail for folding ladder without cab

1шт.

NUT - 1/4" wing (129-409) Lockwasher (193-60), rear handrail for folding ladder without cab

1шт.

15

F20039

SPRING - lock, rear handrail for folding ladder without cab

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (113-206) nut (129-103), rear handrail for folding ladder without cab

1шт.
