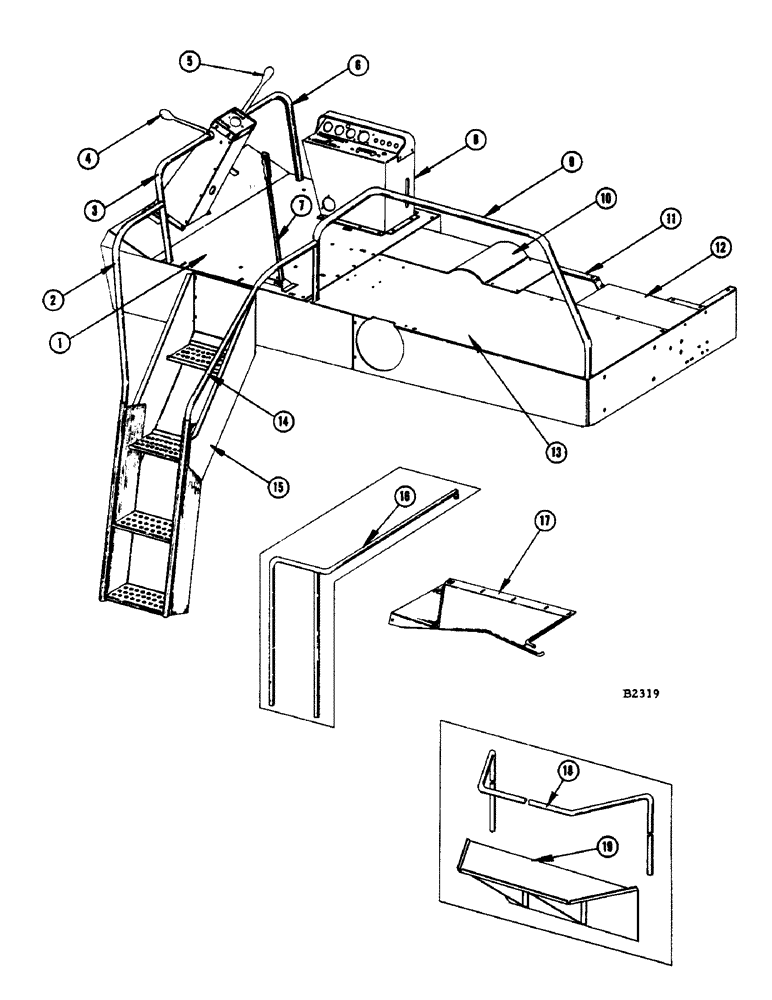

Запчасти Case IH 1060 (210) - OPERATORS PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
F87015
PLATFORM - operator's
1шт.
2
F86165
HAND RAIL - L.H.
1шт.
F13220
HAND RAIL - L.H. (For operator's cab)
1шт.
3
F87021
HAND RAIL - L.H. front
1шт.
BOLT - 3/8" x 2" N.F. hex. (14-632) nut (25-116)
1шт.
4
F1213
LEVER - L.H. control (See header lift and V.S. control)
1шт.
5
F1211
LEVER - R.H. control
1шт.
6
F87022
HAND RAIL - front R.H.
1шт.
7
F87019
LEVER - control (See main combine drive idler)
1шт.
8
F87018
CONSOLE - instrument panel
1шт.
9
F87046
HAND RAIL - rear
1шт.
BOLT - 1/2" x 1-1/2" N.C. hex. (113-410) nut (129-752)
1шт.
BOLT - 3/8" x 2" N.F. hex. (14-632) nut (25-116)
3шт.
BOLT - 1/2" x 1-3/4" N.C. hex. (113-412) nut (131-10)
1шт.
10
F13077
SCREW
COVER - stringer, operator's platform
1шт.
F13080
ANGLE - reinforcing, platform (Bagger) (Not shown)
1шт.
11
F12464
STRINGER - inside operator's platform
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
4шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
1шт.
WASHER - 1/4" plain (195-518)
4шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)
4шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
2шт.
12
F11255
FLOOR - removable
1шт.
13
F87042
PLATFORM - rear (Bagging platform)
1шт.
F87039
PLATFORM - rear (Grain bin)
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
4шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
4шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
3шт.
WASHER - 1/4" plain (195-518)
4шт.
14
F79485
HAND RAIL - R.H.
1шт.
15
F79813
LADDER - side
1шт.
16
F86123
HAND RAIL - rear (Bagger)
1шт.
BOLT - 7/16" x 1-1/2" N.F. hex. (114-303) nut (129-124)
1шт.
17
F87064
STEP - (Bagger combines)
1шт.
BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-424) nut (25-104)
5шт.
BOLT - 5/16" x 1" rhd. sq. nk. (111-203) nut (129-102)
1шт.
18
F13171
SCREW
HAND RAIL - outside rear, platform side extension, operator's corn head attachment
1шт.
19
F87097
EXTENSION - platform side, operator's corn head attachment
1шт.
BOLT - 3/8" x 2-1/2" N.F. hex. (114-219) nut (129-123), operator's platform side extension corn head attachment
3шт.
