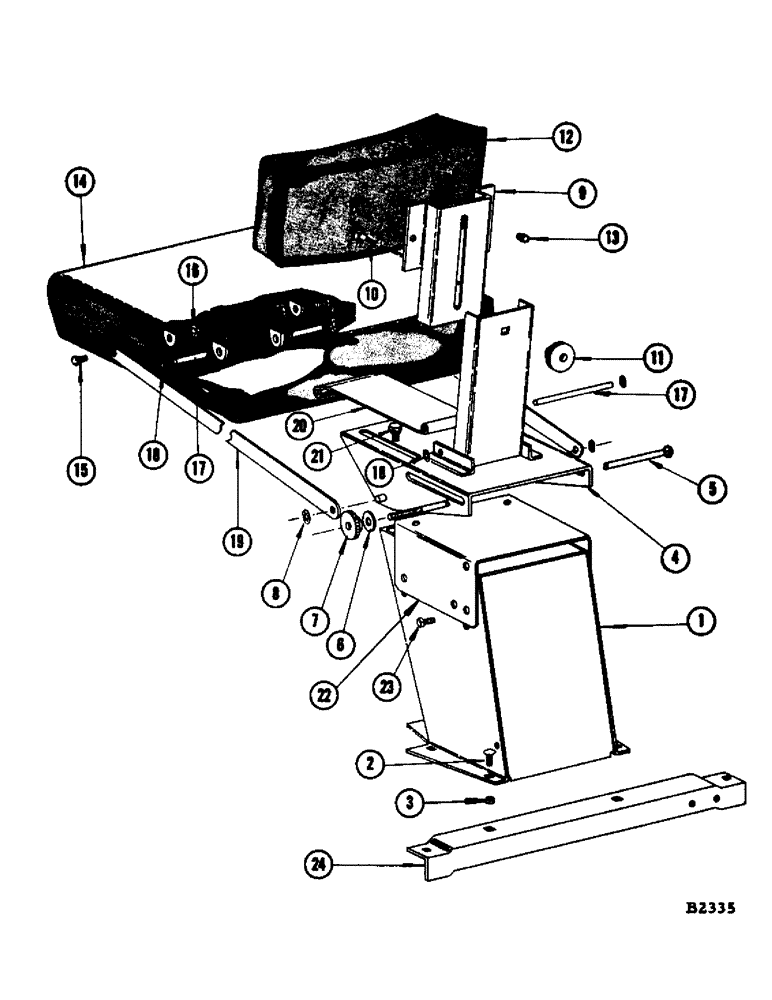

Запчасти Case IH 1060 (208) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

F86997

SUPPORT - seat (Before #8357001)

1шт.

1

F94214

SUPPORT - seat (#8357001 and after)

1шт.

2

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

3

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex; Lockwasher (92-5)

4шт.

4

F87009

BRACKET - plate and support

1шт.

5

111-351

BOLT,Short NK, 3/8"-16 x 9 1/2", G2

- 3/8" x 9-1/2" rhd. sq. nk.

1шт.

6

195-533

WASHER,1/2", SAE

- 1/2" flat

1шт.

7

G15951

NUT

HAND NUT - knurled (Replaced by F23098 when exh.)

1шт.

F23098

HAND NUT - knurled (Replaces G15951 when exh.)

1шт.

8

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

(PALNUT) (Replaces G46146) Push, Bolt Retainer, 3/8" x 25/32"

2шт.

9

F13019

SCREW

SUPPORT - upper backrest

1шт.

10

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

1шт.

11

G15951

NUT

HAND NUT - knurled (Replaced by F23098 when exh.)

1шт.

F23098

HAND NUT - knurled (Replaces G15951 when exh.)

1шт.

12

F87012

BACK REST

1шт.

13

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

14

F87011

CUSHION - seat

1шт.

15

F13404

BOLT - shoulder

2шт.

16

131-4

LOCK NUT,5/16"-18, GB

2шт.

17

F13021

SCREW

SHAFT

2шт.

18

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

(PALNUT) (Replaces G46146) Push, Bolt Retainer, 3/8" x 25/32"

4шт.

19

F13018

LINK - side

2шт.

20

F14908

LINK - bottom (Replaces F87010)

1шт.

21

F22137

BOLT - shoulder, for F87009, ref. 4

2шт.

131-4

LOCK NUT,5/16"-18, GB

ESNA 5/16"-18, GB

2шт.

22

F94215

BRACKET - seat (#8357001 and after)

1шт.

23

114-221

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N.F. hex. full thd.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

24

F13045

ANGLE - seat support, reinforcing

2шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.

3шт.

25-104

NUT,1/4"-20, G5

3шт.
