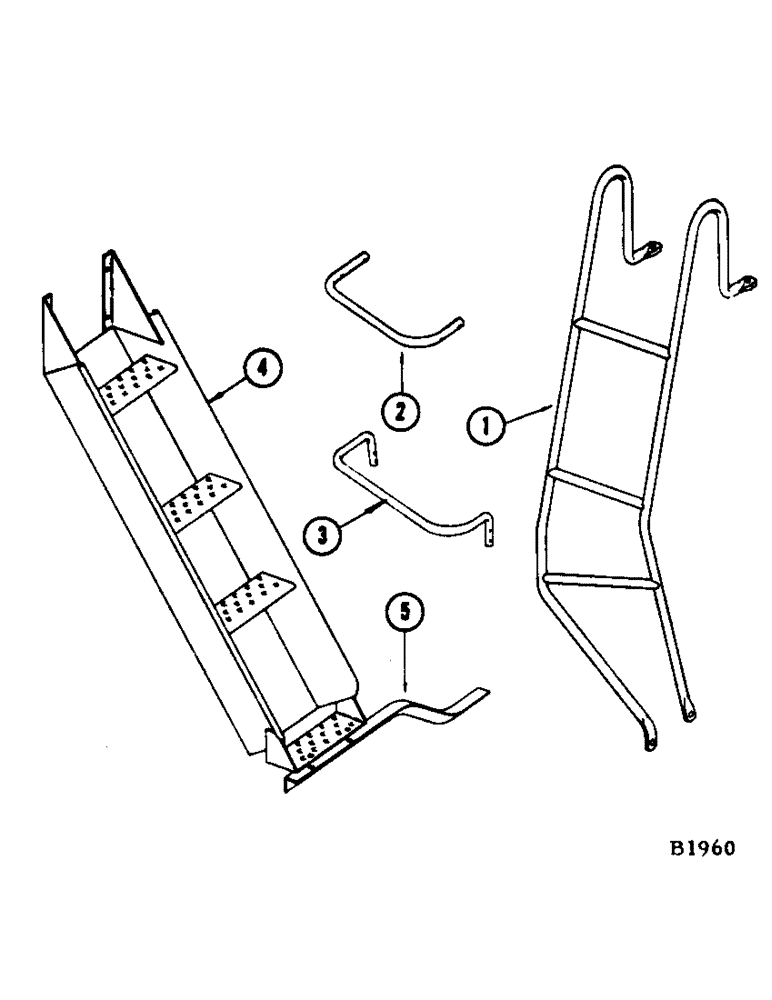

Запчасти Case IH 1060 (206) - REAR LADDER, OPERATORS PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F86235

LADDER - rear (Bagger combines)

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (114-100) nut (129-122)

4шт.

2

F11427

HAND RAIL - rear ladder (Grain bin combines)

1шт.

BOLT - 1/4" x 1-1/2" N.F. hex. (114-4) nut (129-121)

4шт.

WASHER - 1/4" plain (195-518) L.W. (192-19)

4шт.

3

F12962

HAND RAIL - for L.P. engine

1шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (114-107) nut (129-122)

4шт.

4

F79812

LADDER - rear (Grain bin combines)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

4шт.

5

F8891

ANGLE - ladder support (Grain bin combines)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)

2шт.
