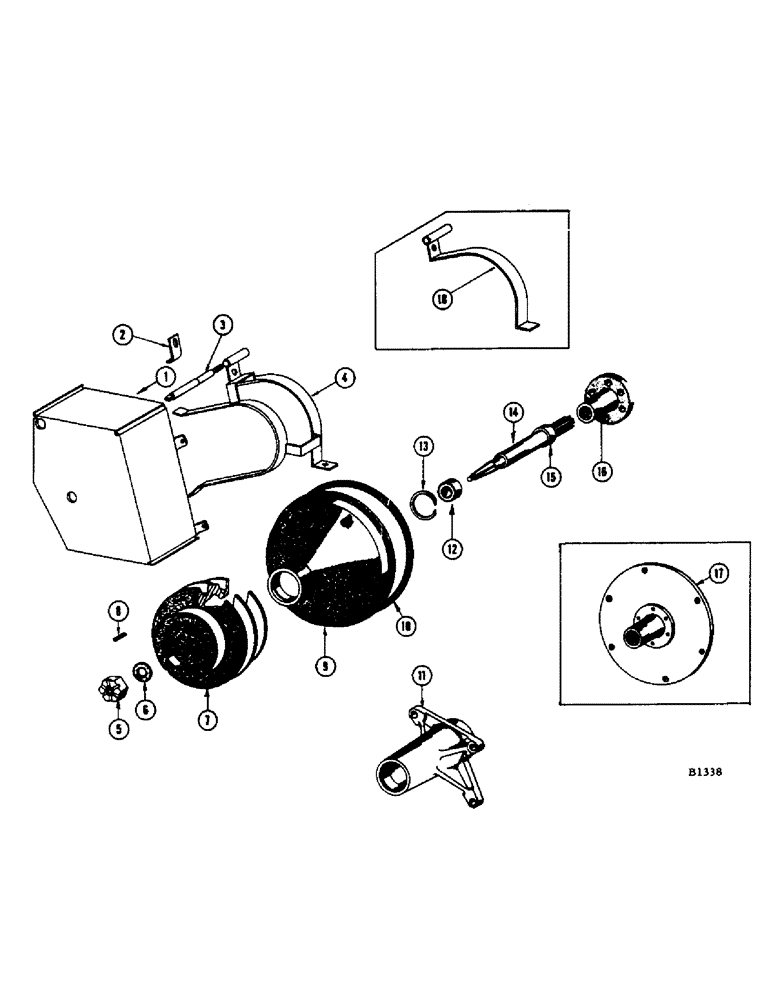

Запчасти Case IH 1060 (312) - ENGINE OUTPUT SHAFT AND HOUSING (10) - ENGINE

1

F79753

SHIELD - pulley (Grain bin machines) Replaced by F88380 when stocks are exhausted

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

3шт.

F88380

SHIELD - pulley (Replaces F79753)

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

2шт.

BOLT - 3/8" x 7" N.C. hex. (113-255) nut (129-103)

1шт.

2

F12557

DEFLECTOR - belt guide

1шт.

BOLT - 1/4" x 1" N.F. hex. (14-416) nut (25-114)

1шт.

WASHER - 1/4" plain (195-18) L.W. (92-4)

1шт.

3

F11538

STUD

1шт.

4

F79751

GUIDE - engine pulley (Grain bin) See ref. 18

1шт.

5

B18305

NUT

- (1" slotted) For shaft

1шт.

6

O2437B

WASHER - (2" O.D. x 1-1/32" I.D. #10 ga.) Outer end of shaft

1шт.

7

F86326

SHEAVE - multiple drive (Main combine drive, variable speed traction drive and grain bin drive) Replaced by F98989 when stocks are exhausted

1шт.

F87878

SHEAVE

- multiple drive (Replaces F86326)

1шт.

O2553CS

WASHER - (18 ga. x 11/32" I.D. sheared) Balancing (Not shown)

1шт.

O2799CS

WASHER - (12 ga. x 11/32" I.D. sheared) Balancing (Not shown)

1шт.

8

O6267HT

KEY

- (1-1/4" straight) For F86326 ref. 7

1шт.

9

F1210

FITTING

HOUSING - output shaft (Case engines) See ref. 11

1шт.

10

O6507AB

GASKET - (12-7/16" O.D.) For F1210 housing (Ref. 9)

1шт.

11

F1934

HOUSING - engine output shaft (H-318 Chrysler)

1шт.

12

F8025

BEARING

- engine output shaft

1шт.

13

A27579

RING

SNAP RING - for ref. 12

2шт.

14

F8024

SHAFT - (12-5/16" splined) Engine output (Case engines)

1шт.

PIN - 1/8" x 1-3/4" cotter (132-54)

1шт.

F12657

SHAFT - engine output (H-318 Chrysler)

1шт.

PIN - 1/8" x 1-3/4" cotter (132-54)

1шт.

15

F8922

SPACER - (3/4" pipe) Output shaft (Case engines)

1шт.

F12967

SPACER - output shaft (F12657 Chrysler)

1шт.

16

F3088

HUB - output shaft (Case engines) See ref. 17

1шт.

17

F86738

DISC - drive (H-318 Chrysler)

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

6шт.

18

F79752

GUIDE - engine pulley (Bagging platform) See ref. 4

1шт.

A284 G-F spark ignition 4-1/4" bore x 5" stroke, the engines for this combine are:

1шт.

A284LP-F spark ignition 4-1/4" bore x 5" stroke, the engines for this combine are:

1шт.

A301D-F diesel 4-3/8" bore x 5" stroke, the engines for this combine are:

1шт.

H318-399 Chrysler 3.91" bore x 3.31" stroke (Gas), the engines for this combine are:

1шт.

LH318-488 Chrysler 3.91 bore x 3.31" stroke (Gas), the engines for this combine are:

1шт.
