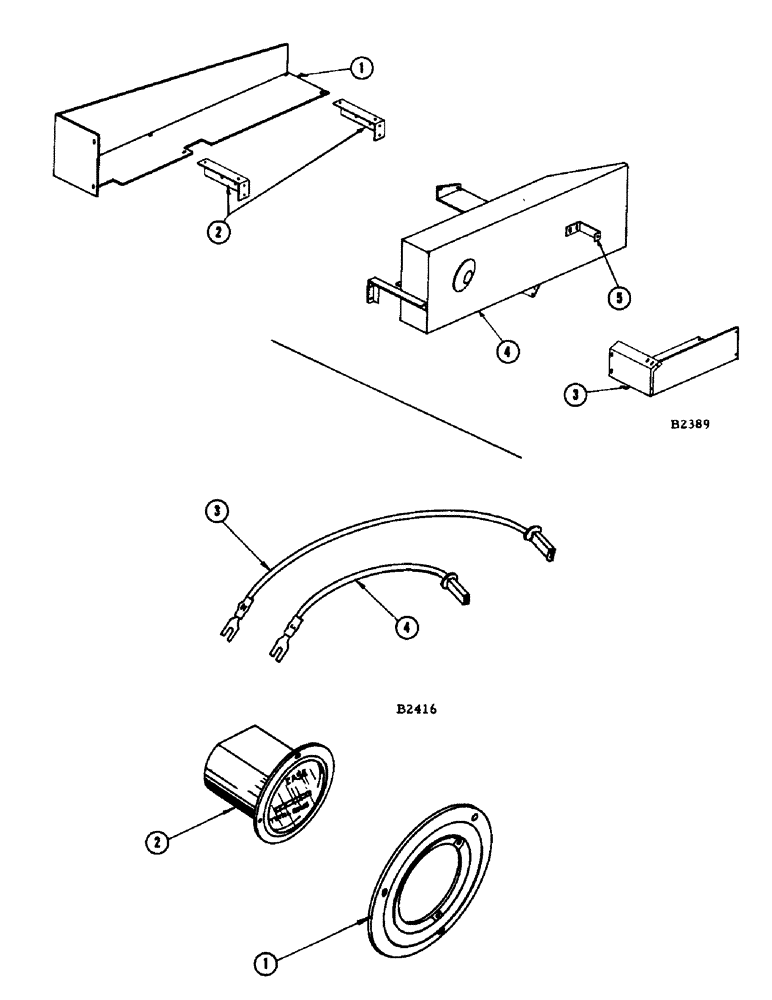

Запчасти Case IH 1060 (310) - FAN TRASH AND MUD SHIELD ATTACHMENT, VARIABLE SPEED TRACTION DRIVE SHEAVE (88) - ACCESSORIES

1

F13167

SCREW

SHIELD - fan trash, R.H.

1шт.

BOLT - 3/8" x 1/2" N.F. hex. (114-210) nut (129-123)

4шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

2шт.

2

F9510

ANGLE - support

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

4шт.

3

F13166

SHIELD - fan trash, L.H.

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

2шт.

BOLT - 3/8" x 1/2" N.F. hex. (114-210) nut (129-123)

2шт.

4

F87084

SHIELD - mud V.S. traction drive

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

6шт.

5

F12849

BRACKET - safety shield

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

2шт.

1

D35079

DAMPER

FLANGE - mounting, engine hour meter

1шт.

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" N.C. mach., engine hour meter

3шт.

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Engine hour meter Int Tooth, #6

3шт.

129-5

NUT,#6-32

Engine hour meter #6-32

3шт.

D39286

GAUGE

KIT - engine hour meter

1шт.

2

NSS

NOT SOLD SEPARAT

METER - hour, engine hour meter

1шт.

3

D39285

ELECTRICAL WIRE

WIRE - lead (36" long) Same as ref. 4, engine hour meter

1шт.

4

D39285

ELECTRICAL WIRE

WIRE - lead (36" long) Same as ref. 3, engine hour meter

1шт.

D39284

KIT

PACKET - mounting hardware, engine hour meter

1шт.

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" N.C. mach., engine hour meter

3шт.

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Engine hour meter Int Tooth, #6

3шт.

129-5

NUT,#6-32

Engine hour meter #6-32

3шт.
