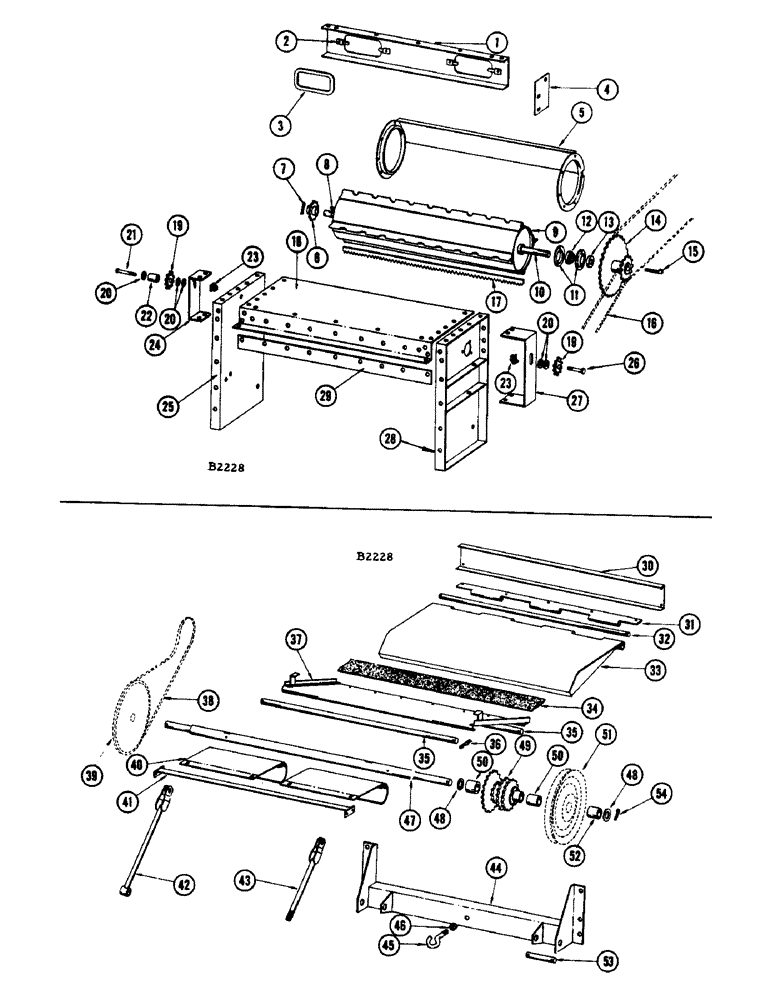

Запчасти Case IH 1060 (304) - DEFOLIATED ALFALFA ATTACHMENT (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
1
F86833
CHANNEL - cross
1шт.
2
F86525
CLIP
- door
4шт.
151-95
RIVET - 3/16" x 1/4" semi-tubular
4шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)
4шт.
3
F8077
DOOR
2шт.
4
F12818
BRACKET - idler
1шт.
BOLT - 5/8" x 1-1/4" rhd. sq. nk. (11-1020) nut (129-107)
2шт.
WASHER - plain (195-541)
2шт.
5
F86826
SHIELD - beater
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)
10шт.
6
F86828
SPROCKET - feeder beater, R.H.
1шт.
7
132-158
PIN
- 1/4" x 2-3/4" cotter
1шт.
8
126-29
WOODRUFF KEY,#C, 5/16" x 1 1/8"
1шт.
9
F86822
BEATER
1шт.
10
F12797
SHAFT - beater
1шт.
KEY - 5/16" x 1-3/16" hi-pro (126-223)
2шт.
11
T17277
FLANGE
TTE
4шт.
BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106)
6шт.
12
T18852
BALL BEARING
BEARING
2шт.
13
O4524B
COLLAR
- lock
1шт.
14
F86827
SPROCKET - feeder beater, L.H.
1шт.
15
A26494
KEY - square, 3/8" x 3/8" x 2"
1шт.
16
F12826
CHAIN - auger and sickle drive (NSS - see chain page)
1шт.
17
F12817
STRIP - saw tooth
4шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
32шт.
18
F12806
PANEL - top
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) L.W. (92-5)
5шт.
BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)
10шт.
19
F10427
SPROCKET ASSY.
IDLER
2шт.
20
195-541
WASHER,5/8", SAE
- 5/8" plain
3шт.
21
114-616
BOLT,Hex, 5/8" - 18 x 4", Gr 5
- 5/8" x 4" N.F. hex.
1шт.
22
11901K
SPACER
1шт.
23
F75313
NUT - lock
2шт.
24
F12801
BRACKET - idler, R.H.
1шт.
BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)
2шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)
2шт.
25
F86823
PANEL - side, R.H.
1шт.
26
F7848
BOLT - idler
1шт.
WASHER - 5/8" plain (195-541)
2шт.
27
F12810
BRACKET - idler, L.H.
1шт.
BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)
2шт.
BOLT - 3/8" x 1" N.F. hex. (14-614) nut (25-116)
2шт.
28
F86824
PANEL - side, L.H.
1шт.
29
F7891
SEAL - top panel
1шт.
BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)
9шт.
WASHER - 1/4" flat (95-4) L.W. (92-4)
9шт.
30
F12807
PANEL - bottom
1шт.
BOLT - 1/2" x 1" N.F. hex. (14-816) nut (25-118)
4шт.
31
F12822
HINGE - feed plate
1шт.
32
F12823
ROD - hinge
1шт.
33
F86831
PLATE - feed
1шт.
34
F7891
SEAL - boot door
1шт.
SCREW - 1/4" x 3/4" rhd. mach. (75-412)
2шт.
SCREW - 1/4" x 5/8" rhd. mach. (75-410)
7шт.
NUT - (25-104) L.W. (92-4) Flatwasher (95-4)
9шт.
35
F12816
PIN - hinge
2шт.
36
TB10698
COTTER - hair pin
4шт.
37
F86829
DOOR - boot
1шт.
38
F12825
CHAIN - feed rake drive (NSS see chain page)
1шт.
39
F88258
SPROCKET - feed rake and auger drive (Replaces F79728)
1шт.
F79728
SPROCKET - feed rake and auger drive (Replaced by F88258 when stock is exhausted)
1шт.
40
F12829
SHIELD - feeder shaft
2шт.
41
F86834
SUPPORT - shield
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
8шт.
WASHER - 1/4" flat (195-518)
4шт.
42
F86336
LINK - torque tube, R.H.
1шт.
43
F86337
LINK - torque tube, L.H.
1шт.
44
F86333
SUPPORT - ram
1шт.
BOLT - 1/2" x 2-1/4" N.F. hex. (114-411) nut (129-125)
6шт.
45
F11792
HOOK - eye
1шт.
46
129-122
NUT,5/16"-24, G5
2шт.
47
F12741
SHAFT - header
1шт.
F11313
KEY
- (Not shown)
1шт.
O1202TS
SPACER - (Not shown)
2шт.
F12328
SLEEVE - tachometer, cylinder shaft (Not shown)
1шт.
T25683
SNAP RING,#75, Ext
RETAINER - tachometer sleeve, cylinder shaft (Not shown)
1шт.
48
F10767
WASHER
8шт.
49
F86832
HUB AND SPROCKET
1шт.
50
F11810
BUSHING
2шт.
51
F79569
SHEAVE - sickle drive
1шт.
52
F12819
SPACER
1шт.
53
F12293
PIN - header ram lift
2шт.
54
132-152
PIN
- 1/4" x 1-3/4" cotter
4шт.
