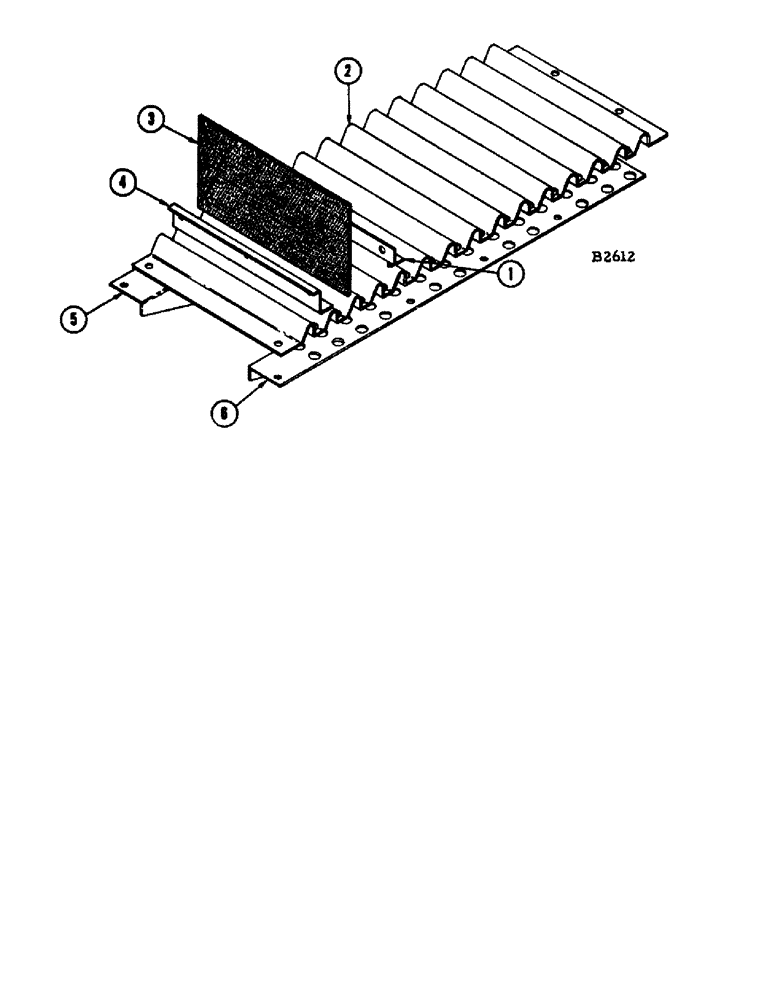

Запчасти Case IH 1060 (147A) - COB DEFLECTOR AND GRID, STIFFENER ATTACHMENT, BEFORE SERIAL NUMBER 8357001 (88) - ACCESSORIES

1

F88057

ANGLE - rear

4шт.

NUT - 1/4" N.C. hex. (129-101) L.W. (192-19)

8шт.

2

F14492

COVER - front frid

4шт.

3

F14999

FLIGHT - (Replaces F14061)

4шт.

4

F14060

ANGLE - front

4шт.

5

F88059

STIFFENER - grid, R.H.

4шт.

BOLT - 1/4" x 5/8" N.C. hex. (113-2)

16шт.

WASHER - 1/4" std. (95-4) L.W. (192-19)

16шт.

6

F88058

STIFFENER - grid, L.H.

4шт.

BOLT - 1/4" x 5/8" N.C. hex. (113-2)

16шт.

WASHER - 1/4" std. (95-4) L.W. (192-19)

16шт.

F11415

CLAMP - grid cover (For rear of F14492) Not shown

4шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)

8шт.
