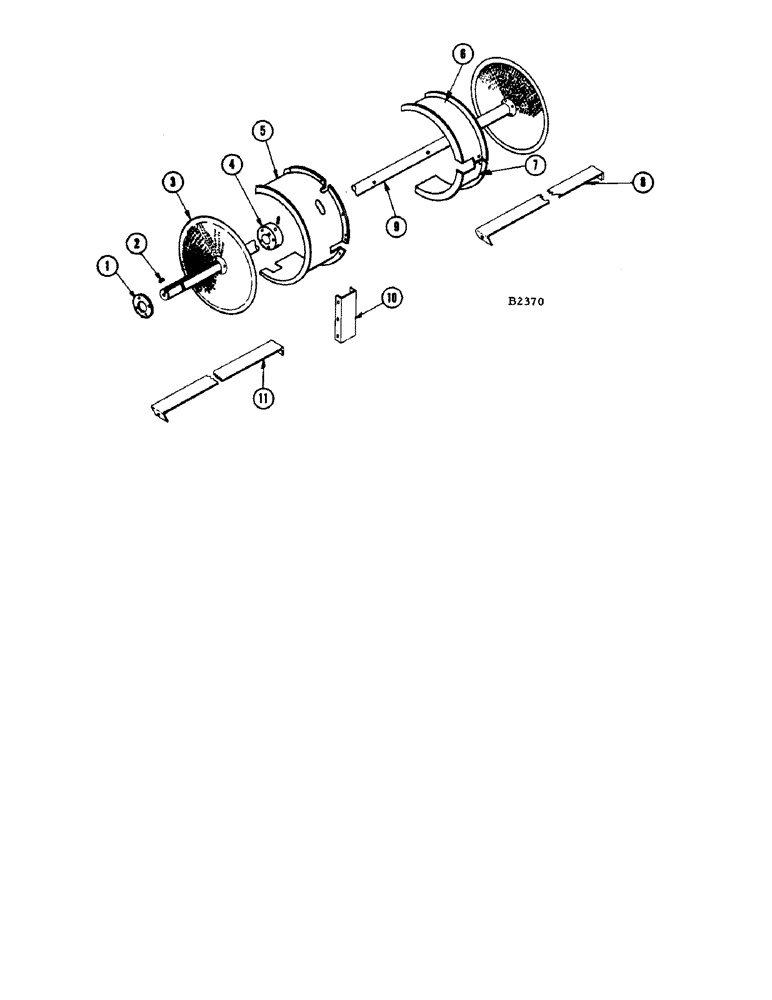

Запчасти Case IH 1060 (152) - ROTATING FAN SCREEN ATTACHMENT (10) - ENGINE

1

F21237

WASHER

2шт.

BOLT - 1/4" x 1" N.F. hex. (114-1) L.W. (192-19)

8шт.

2

W5063S

KEY

- for shaft, ref. 9

2шт.

3

F21056

SCREEN

2шт.

4

F20864

HUB

2шт.

83-512

SET SCREW

SCREW - 5/16" x 3/4" N.C. hex. soc. cup pt. set (For hub)

4шт.

5

F13177

SCREW

WRAPPER - R.H.

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)

6шт.

6

F13176

WRAPPER - front, L.H.

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)

4шт.

7

F13175

SCREW

WRAPPER - rear, L.H.

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)

3шт.

8

F13178

BRACE - front, L.H. shield

1шт.

9

F13174

SCREW

SHAFT - fan

1шт.

10

F13173

SCREW

SUPPORT - fan, front

2шт.

11

F13179

SCREW

BRACE - front, R.H. shield

1шт.
