Запчасти Case IH 1060 (186) - BAG CHUTE (80) - CROP STORAGE/UNLOADING

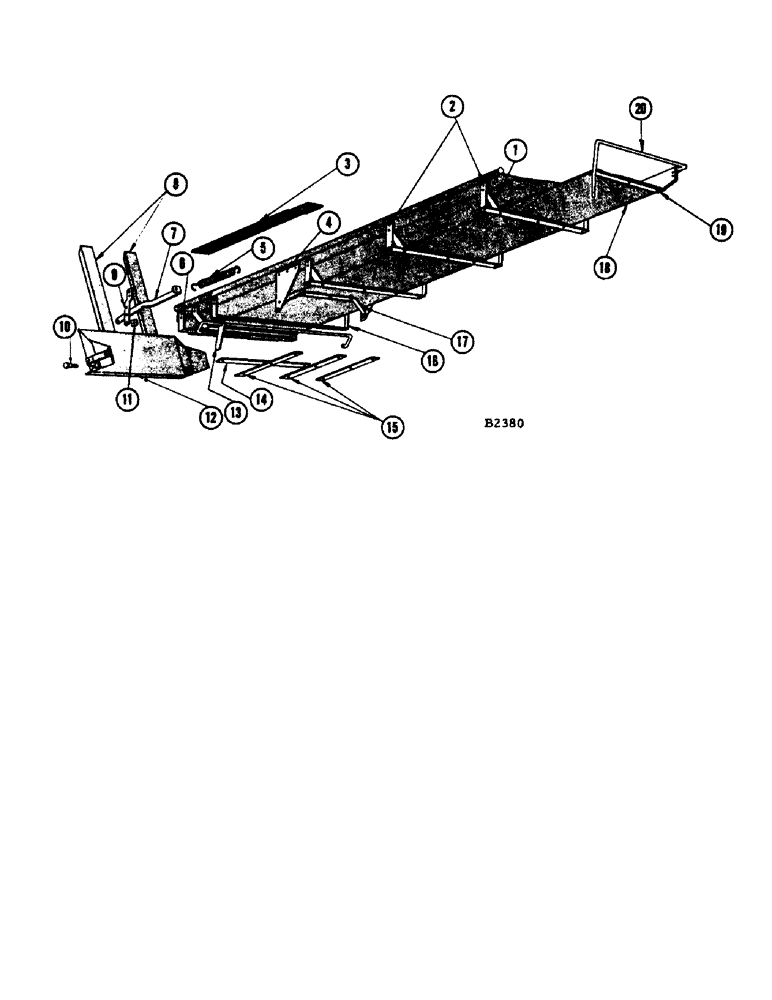

Схема запчастей Case IH 1060 - (186) - BAG CHUTE (80) - CROP STORAGE/UNLOADING
8
2
4
12
20
18
6
10
3
15
17
5
16
7
11
9
1
19
14
13

Артикул

Название

Примечание

Количество

1

F8752

STRAP - reinforcement

6шт.

2

F77324

ANGLE - reinforcement (Beneath chute floor)

3шт.

RIVET - 3/8" x 1" rhd. (45-616)

6шт.

3

O8080HT

BELTING - bag chute floor

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) nut (25-104)

1шт.

WASHER - 1/4" plain (195-18) L.W. (92-4)

1шт.

4

O1049CK

RETAINER - gate spring

2шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104)

6шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

5

F5318

SPRING - end gate

2шт.

6

F8753

STRAP - reinforcement, lower end (Vertical)

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

4шт.

7

F7588

STRAP - gate latch, R.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

1шт.

F7589

STRAP - gate latch, L.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

1шт.

B18072

X,3/8" Pipe x 3/8"

SPACER - end gate latch strap F7588 and F7589 (Not shown)

2шт.

8

F77328

EXTENSION - end gate

2шт.

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (111-330) nut (129-103)

2шт.

BOLT - 3/8" x 2" rhd. sq. nk. (111-326) nut (129-103)

2шт.

9

O6344HT

BRACKET - end gate latch

2шт.

10

O6300HT

PIN - end gate

2шт.

NUT - 1/2" N.C. hex. (25-108) L.W. (92-8)

2шт.

11

O6345HT

SPACER - end gate latch bracket

2шт.

12

F77326

END GATE - bag chute

1шт.

BOLT - 7/16" x 1-1/4" rhd. sq. nk. (11-720) nut (25-107)

2шт.

WASHER - 7/16" plain (195-29) L.W. (92-7)

2шт.

13

F86605

TRIP - gate latch, with lever (Replaces F77325)

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

14

F8754

FILLER - lower end

1шт.

15

F7584

STRAP - reinforcement, lower end

3шт.

SCREW - 3/8" x 7/8" N.C. mach. (73-614) nut (25-106)

6шт.

16

F8755

REINFORCEMENT - latch bracket

1шт.

SCREW - 1/4" x 1" N.C. mach. (73-416) nut (25-104)

2шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)

2шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) nut (25-118)

2шт.

17

F8750

BRACE - gate spring retainer

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

3шт.

18

F13137

CHUTE - bag

1шт.

19

F13138

STRAP

1шт.

20

F13135

BAIL

1шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (114-6) nut (129-121)

2шт.
