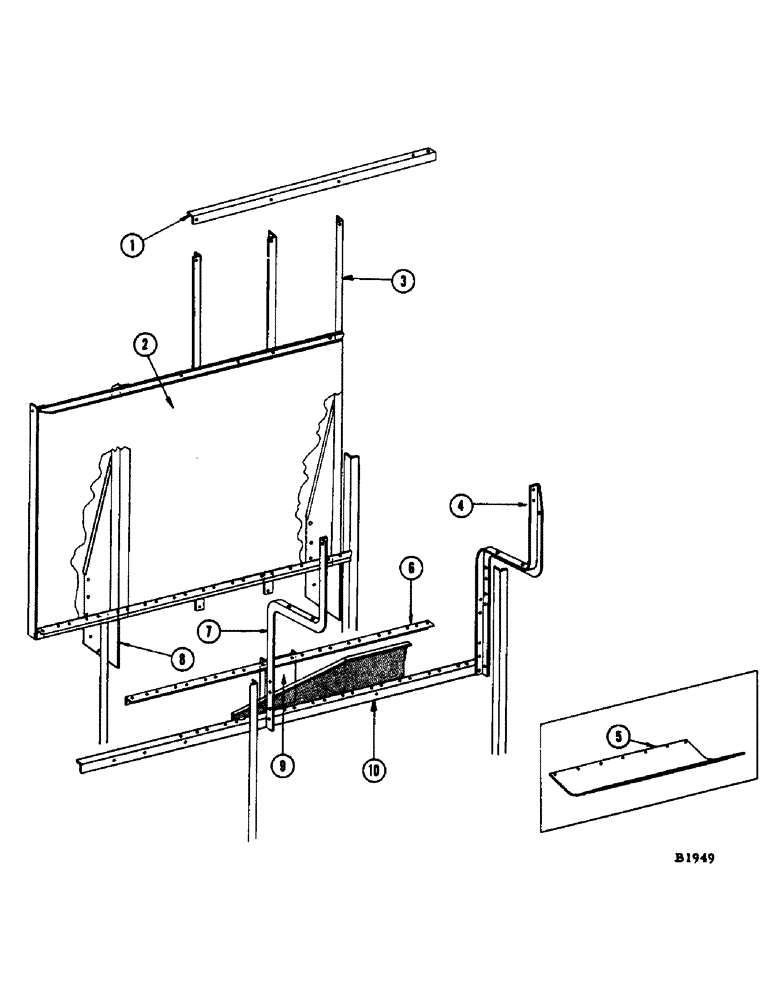

Запчасти Case IH 1060 (184) - BAGGING PLATFORM SUPPORTS (80) - CROP STORAGE/UNLOADING

1

F12003

ANGLE - elevator support

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

2шт.

WASHER - 5/16" plain (195-521) L.W. (192-20)

2шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

3шт.

2

F87063

PANEL - rear

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

4шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

BOLT - 7/16" x 7/8" N.F. hex. (114-218) nut (129-124)

4шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

1шт.

3

F12002

POST - rear panel, L.H.

3шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

6шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122)

2шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

18шт.

4

F12024

POST - seat, L.H.

1шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (111-114) nut (129-101)

2шт.

BOLT - 7/16" x 1" N.F. hex. (114-301) nut (129-124)

2шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

2шт.

5

F11883

FILLER - deck, covers grain bin discharge auger opening

1шт.

6

F8725

ANGLE - center, floor support

1шт.

7

F12025

POST - seat (1 R.H. and 2 center)

3шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

2шт.

BOLT - 5/16" x 1-1/2" rhd. sq. nk. (111-221) nut (129-102)

2шт.

BOLT - 7/16" x 1" N.F. hex. (114-301) nut (129-124)

2шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

5шт.

8

F12016

SUPPORT - rear

2шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (114-100) nut (129-122)

6шт.

WASHER - 5/16" plain (195-521)

8шт.

BOLT - 7/16" x 7/8" N.F. hex. (114-218) nut (129-124)

4шт.

9

F12191

CHANNEL - support, rear panel

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

4шт.

10

F12026

SUPPORT - front, floor

1шт.
