Запчасти Case IH 1060 (182) - BAGGING PLATFORM ATTACHMENT (80) - CROP STORAGE/UNLOADING

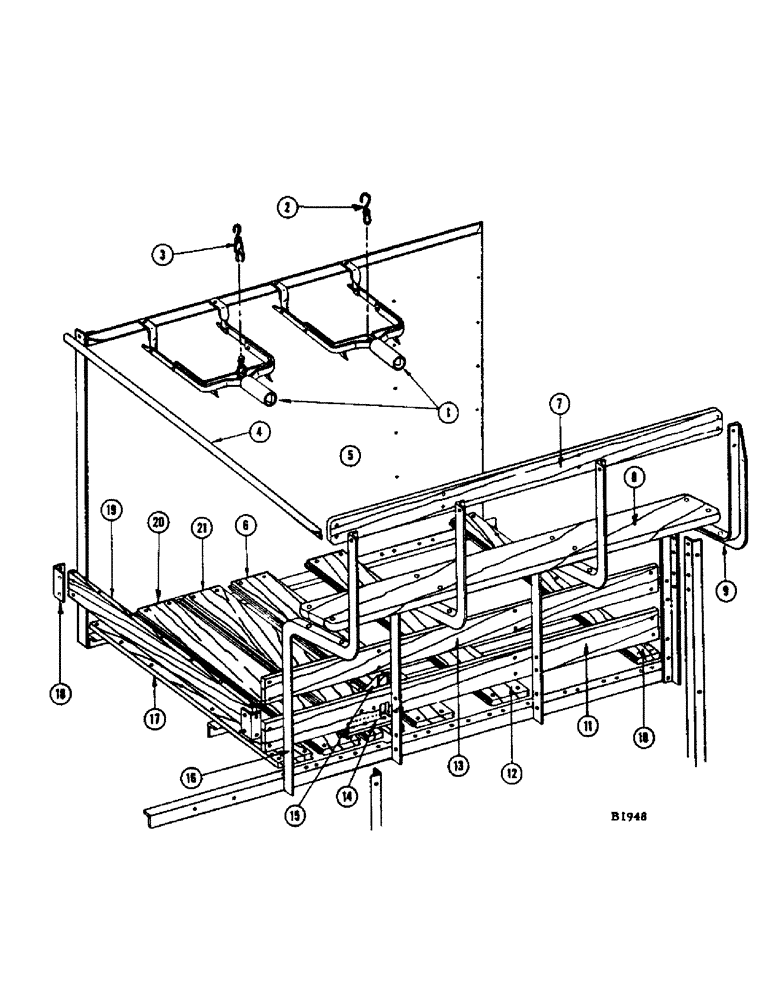

Схема запчастей Case IH 1060 - (182) - BAGGING PLATFORM ATTACHMENT (80) - CROP STORAGE/UNLOADING
16
20
12
14
7
4
1
21
18
15
3
17
19
8
6
5
13
9
2
11
10

Артикул

Название

Примечание

Количество

1

F77318

HOLDER - sack

2шт.

2

O5481HT

HOOK - for O5696HT1 chain

2шт.

3

O5696HT1

CHAIN - for F77318 sack holder

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

4шт.

4

F8738

RAIL - hand, R.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

2шт.

5

F87063

PANEL - rear

1шт.

6

F4091

BOARD - floor, #4 from R.H. end

1шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (11-420) nut (25-104)

4шт.

7

F4059

REST - back

1шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. (11-624) nut (25-106)

8шт.

8

F4058

BOARD - seat

1шт.

BOLT - 3/8" x 2" rhd. sq. nk. (11-632) nut (25-106)

8шт.

9

F12024

POST - seat support, L.H. (See platform supports)

1шт.

BOLT - 7/16" x 1" N.F. hex. (114-301) nut (129-124)

2шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

2шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (111-114) nut (129-101)

2шт.

10

F4093

BOARD - floor, L.H. end

1шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (11-420) nut (25-104)

3шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-114) nut (129-101)

1шт.

11

F4086

BOARD - grain, front

1шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (114-107) nut (129-122)

2шт.

12

F4092

BOARD - floor

6шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (11-420) nut (25-104)

24шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-114) nut (129-101)

12шт.

13

F4057

REST - foot

1шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-424) nut (25-104)

8шт.

14

F12012

GUIDE - chain

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

1шт.

15

F12011

SHIELD - chain

1шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (111-109) nut (129-121)

2шт.

16

F12025

POST - seat support (1 R.H. and 2 center) See platform supports

3шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

2шт.

BOLT - 5/16" x 1-1/2" rhd. sq. nk. (111-221) nut (129-102)

2шт.

BOLT - 7/16" x 1" N.F. hex. (114-301) nut (129-124)

2шт.

BOLT -3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

5шт.

17

F4088

BOARD - floor, R.H. end

1шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (11-420) nut (25-104)

3шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-114) nut (129-101)

1шт.

18

F12192

CLIP - corner, grain board

4шт.

BOLT - 5/16" x 1-1/2" rhd. sq. nk. (111-221) nut (129-102)

8шт.

19

F4095

BOARD - R.H. side

1шт.

BOLT - 1/4" x 5-1/2" rhd. sq. nk. (11-488) nut (25-104)

7шт.

20

F4089

BOARD - floor, #2 R.H. end

1шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (11-420) nut (25-104)

4шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-114) nut (129-101)

2шт.

21

F4090

BOARD - floor, #3 from R.H. end

1шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (11-420) nut (25-104)

4шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-114) nut (129-101)

2шт.

Выбрано товаров: 49
