Запчасти Case IH 1060 (180) - GRAIN BIN DISCHARGE AUGER (80) - CROP STORAGE/UNLOADING

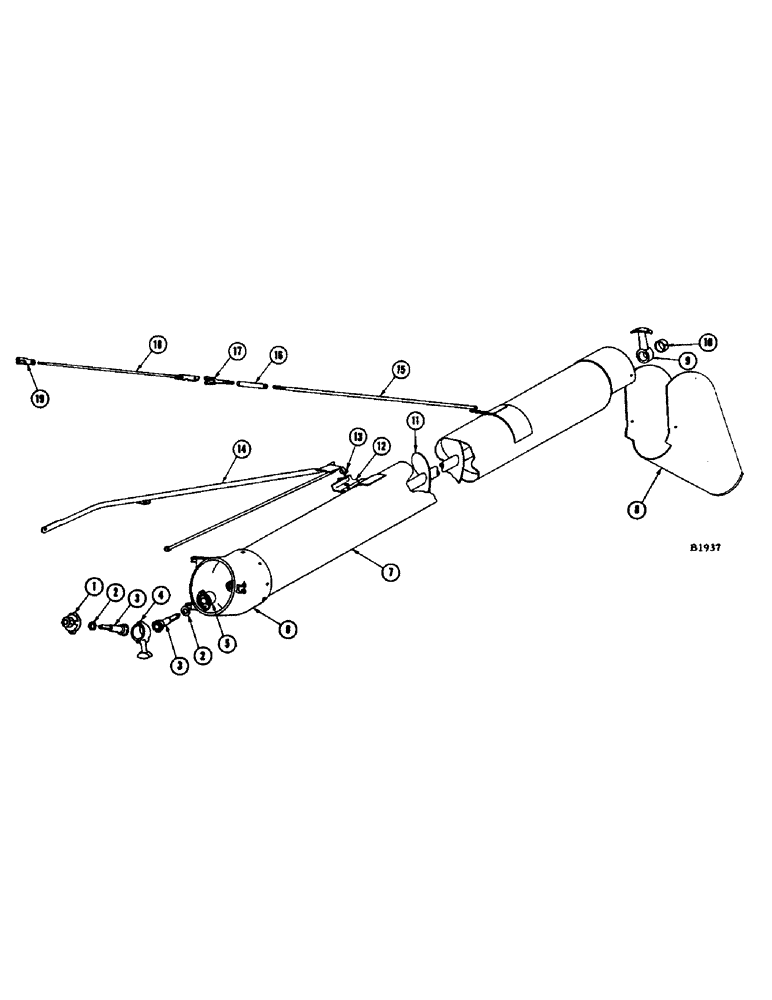

Схема запчастей Case IH 1060 - (180) - GRAIN BIN DISCHARGE AUGER (80) - CROP STORAGE/UNLOADING
7
1
13
18
19
15
17
3
5
11
4
8
3
2
16
10
2
9
6
12
14

Артикул

Название

Примечание

Количество

1

F82641

CAP

- inner (Before #8334601)

1шт.

F17053

BEARING

BUSHING - (1" I.D. x 1-1/4" long) Discharge auger (Not shown)

1шт.

F88209

CAP - inner (#8334601 and after)

1шт.

F14591

BUSHING

1шт.

BOLT - 5/16" x 7/8" N.C. hex. (13-514) L.W. (92-5)

2шт.

2

F17801

WASHER

1шт.

3

F12440

GEAR - (13T) Auger drive

2шт.

4

F1388

GEAR BOX

1шт.

FITTING - grease (219-3)

1шт.

5

F86427

CAP - outer

1шт.

F17054

FLANGED BEARING

BUSHING - (1" I.D. x 1-1/2" long - with flange) Discharge auger (Not shown)

1шт.

BOLT - 5/16" x 7/8" N.C. hex. (13-514) L.W. (92-5)

2шт.

6

F1387

ELBOW - grain bin auger

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

2шт.

7

F79487

TUBE - discharge auger

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106)

10шт.

WASHER - 3/8" plain (195-25)

10шт.

8

F14024

SPOUT - discharge auger (Replaces F11362)

1шт.

F11362

SPOUT - discharge auger (Replaced by F14024 when stocks are exhausted)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616)

2шт.

NUT - (25-116)

4шт.

9

F1378

HANGER - discharge auger

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

2шт.

WASHER - 5/16" plain (195-21)

2шт.

10

F11361

COLLAR - discharge auger

1шт.

PIN - cotter, 1/4" x 3" (132-159)

1шт.

11

F79490

AUGER - discharge (Replaced by F88810 when stock is exh.)

1шт.

F88810

AUGER - discharge (Replaces F79490 when stock is exh.)

1шт.

12

F86169

PLATE - locator, grain bin auger tube

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

WASHER - 3/8" plain (195-25) L.W. (92-6)

2шт.

NUT - 3/8" N.C. wing (129-410) L.W. (192-21)

1шт.

13

F62051

WASHER

- (1-1/2" O.D. x 13/32" I.D. #10 or 12 ga.) For ref. 12

1шт.

14

F86162

FRAME - grain bin auger

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (113-410) Pl. wshr. (195-533)

2шт.

BOLT - 5/16" x 1-3/4" N.F. hex. (114-106) nut (129-122)

1шт.

15

F12126

ROD - support, grain bin discharge auger tube

1шт.

16

F86175

TURNBUCKLE - grain bin auger rod

1шт.

NUT - 1/2" N.F. hex. (25-118)

1шт.

NUT - 1/2" N.F. hex. L.H. thrd. (129-325)

1шт.

17

F12144

CLEVIS - grain bin auger rod

1шт.

PIN - 1/2" x 1-37/64" clevis (141-6)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

NUT - 1/2" N.F. hex. (129-125)

1шт.

18

F86170

PLATE - pivot, auger support rod

1шт.

19

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - grain bin auger rod

1шт.

PIN - 1/2" x 1-37/64" clevis (141-6)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

Выбрано товаров: 48
