Запчасти Case IH 1060 (176) - GRAIN BIN DRIVE (80) - CROP STORAGE/UNLOADING

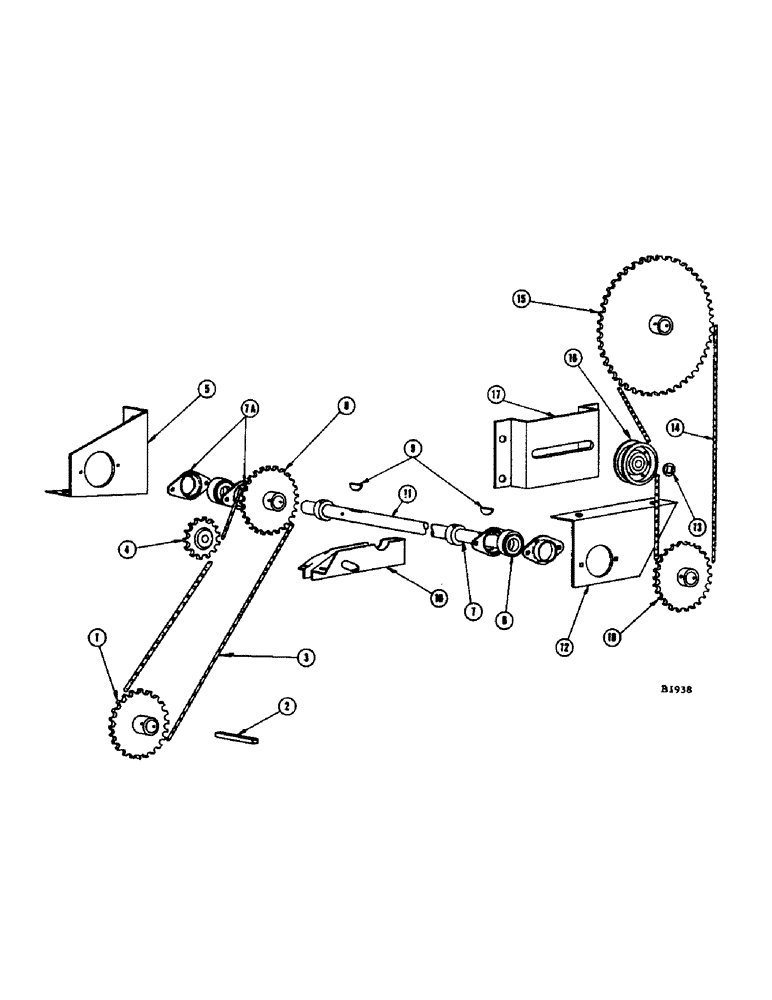

Схема запчастей Case IH 1060 - (176) - GRAIN BIN DRIVE (80) - CROP STORAGE/UNLOADING
11
13
7a
18
1
2
5
8
9
12
6
10
3
16
4
15
17
7
14

Артикул

Название

Примечание

Количество

1

F86732

SPROCKET - (30T) Distribution auger drive

1шт.

SCREW - 5/16" x 3/4" N.C. cup pt. set (85-512) And jam nut (129-142)

1шт.

2

O227CW

KEY - (5/16" x 5/16" x 3-1/8" square) F86732 sprocket

1шт.

3

F11149

X

CHAIN - (See chain page)

1шт.

4

F7935

SPROCKET ASSY.

IDLER - jackshaft

1шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) nut (25-1110)

1шт.

WASHER - 5/8" plain (195-41)

4шт.

5

F12645

BRACKET - jackshaft inner bearing L.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

2шт.

6

F90306

BEARING ASSY

BEARING - (Replaces F78749 flange bearing)

2шт.

7

O4233CS

COLLAR

- (Replaces F52076)

1шт.

7a

F9417

FLANGE

- for ref. 6

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

4шт.

8

F79467

SPROCKET ASSY.

SPROCKET - (30T) Distribution auger drive, driven

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

9

126-215

KEY - #708 hi-pro

2шт.

10

F12647

BRACKET - idler

1шт.

11

F12648

JACKSHAFT - distribution auger drive

1шт.

12

F11143

BRACKET - jackshaft bearing, R.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

2шт.

13

O1936HT

WASHER - used with F11994 bracket

4шт.

14

F11237

X

CHAIN - distribution auger drive (See chain page)

1шт.

15

F86141

SPROCKET - (60T) Elevator drive, driven

1шт.

KEY - "A" Woodruff (126-21)

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

16

O3511CS

PULLEY

- elevator drive tightener

1шт.

BOLT - 1/2" x 2-1/2" N.F. hex. (14-1040) nut (25-118)

1шт.

WASHER - 1/2" plain (195-33)

4шт.

17

F11144

BRACKET - adjustment, for upper elevator shaft

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

18

F86883

SPROCKET ASSY.

SPROCKET - (30T) Outer jackshaft, grain bin drive

1шт.

SCREW - 1/4" x 5/8" N.C. sq. hd. cup pt. set (85-410)

1шт.

NUT - 1/4" N.C. hex. (25-104)

1шт.
