Запчасти Case IH 1060 (174) - GRAIN BIN AUGER DRIVE JACKSHAFT (80) - CROP STORAGE/UNLOADING

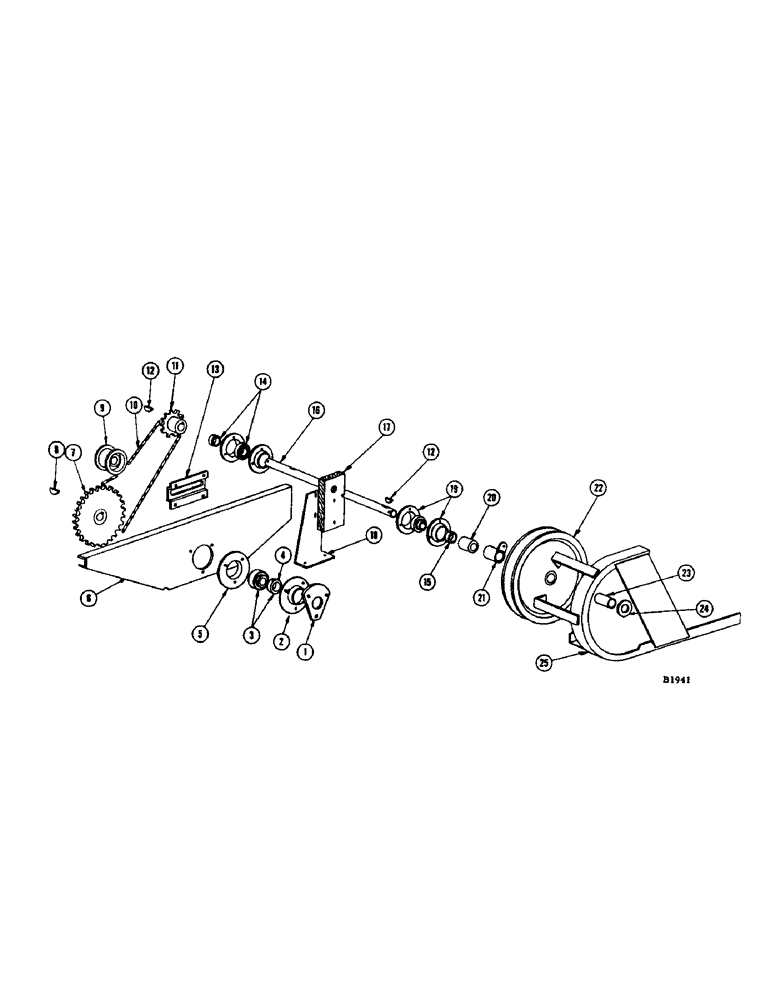

Схема запчастей Case IH 1060 - (174) - GRAIN BIN AUGER DRIVE JACKSHAFT (80) - CROP STORAGE/UNLOADING
7
16
25
5
17
10
18
22
24
8
15
9
21
12
11
4
6
19
1
3
12
23
2
13
20
14

Артикул

Название

Примечание

Количество

1

F10239

SHIELD - dust, for 1443CKA bearing (Ref. 3)

1шт.

2

F19270

FLANGE

- for 1443CKA bearing (Ref. 3)

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) nut (129-103)

3шт.

3

1443CKA

BALL BEARING

BEARING - R.H. end of jackshaft

1шт.

4

F62234

COLLAR

1шт.

5

F62225

FLANGE

- for 1443CKA bearing (Ref. 3)

1шт.

6

F11514

PLATE - reinforcement, grain bin auger

1шт.

BOLT - 3/8" X 5/8" N.F. hex. (14-610) nut (25-116)

3шт.

7

F79411

SPROCKET - (34T) Grain bin auger drive, driven

1шт.

PIN - 1/8" x 1-1/2" cotter (132-52)

1шт.

8

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

9

O3511CS

PULLEY

- auger drive tightener

1шт.

BOLT - 1/2" x 2-1/4" rhd. sq. nk. (11-836) nut (25-108)

1шт.

10

F11130

CHAIN (AG)

CHAIN - grain bin auger drive (See chain page)

1шт.

11

F79843

SPROCKET - (16T) Drives grain bin auger

1шт.

PIN - 1/8" x 1-1/2" cotter (132-52)

1шт.

12

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

13

F11994

BRACKET - tightener, auger over grain bin chain

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (111-217) nut (129-102)

4шт.

14

3074CSA

BALL BEARING

- jackshaft, both ends

2шт.

15

F62108

COLLAR

1шт.

16

F11993

JACKSHAFT - grain bin auger drive

1шт.

17

F4098

BEARING - jackshaft

1шт.

BOLT - 5/16" x 1-3/4" N.F. hex. (14-528) nut (25-115)

2шт.

WASHER - 5/16" std. (195-21)

4шт.

18

F12968

ANGLE - bearing

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) nut (25-106)

2шт.

19

B18282

FLANGE

- for 3074CSA bearing (Ref. 14)

4шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

6шт.

20

O2169CH

SPACER - (1" O.D. x 1-1/8" long)

1шт.

21

F79811

ARM - shear pin, driven sprocket

1шт.

KEY - #15 Woodruff (126-24)

1шт.

NUT - 1/4" N.C. flex loc (131-506)

1шт.

BOLT - 1/4" x 1" N.C. reg. sq. hd. (17-416)

1шт.

22

F79863

SHEAVE - (12" O.D.) Drives F11993 jackshaft

1шт.

23

F11666

BUSHING - (1-1/4" O.D. x 1-3/4" long)

1шт.

24

F51640

CABLE

- (1-3/4" O.D. x 1-1/32" I.D. #18 ga.) For jackshaft F11993 (Ref. 16)

1шт.

25

F79417

GUIDE - belt

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

3шт.

F11139

BELT

Drives Grain Bin Auger Drive Jackshaft, Not Shown

1шт.

Выбрано товаров: 40
