Запчасти Case IH 1060 (172) - GRAIN BIN AND SUPPORTS (80) - CROP STORAGE/UNLOADING

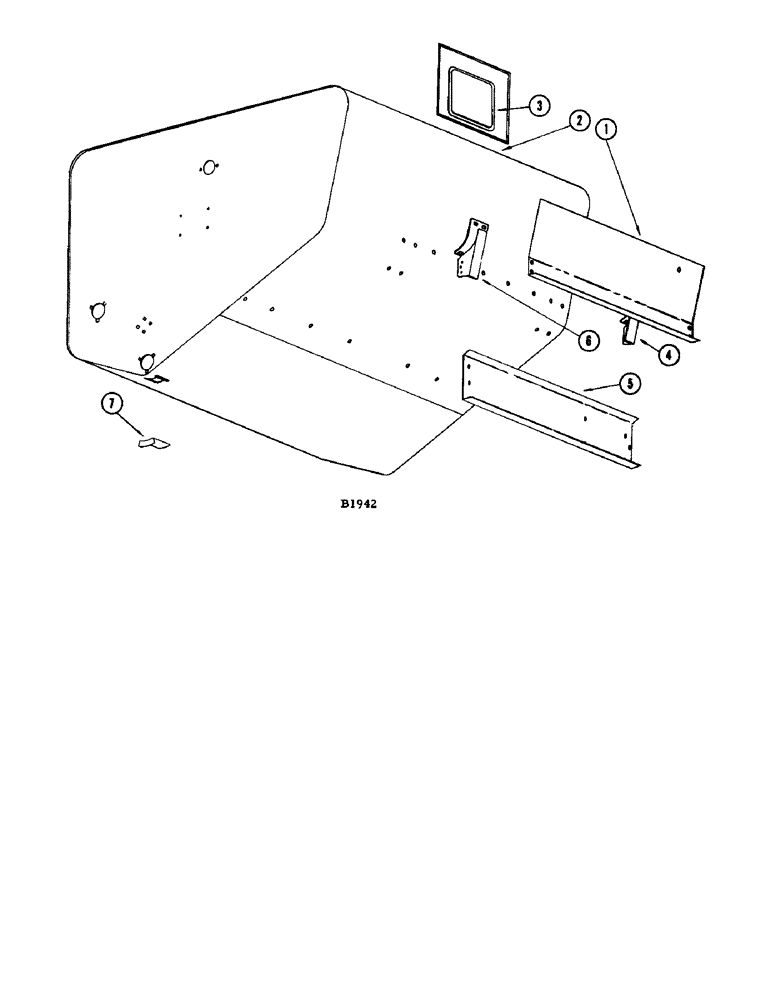

Схема запчастей Case IH 1060 - (172) - GRAIN BIN AND SUPPORTS (80) - CROP STORAGE/UNLOADING
4
2
3
1
5
6
7

Артикул

Название

Примечание

Количество

1

F13067

SCREW

FRONT SHEET - body

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)

5шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

6шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)

3шт.

2

F86735

BIN - grain (Before #8357001)

1шт.

F88511

BIN - grain (#8357001 and after)

1шт.

NUT - 1/2" - 20 Tinnerman (131-129)

8шт.

3

F11501

DOOR - inspection

1шт.

SCREW - 1/4" x 1/2" rhd. N.C. mach. (173-201)

8шт.

4

F79413

SUPPORT - front, L.H.

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)

3шт.

BOLT - 7/16" x 1" N.F. hex. (114-301) nut (129-124)

2шт.

5

F12644

SUPPORT - center grain bin (Replaces F11996)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

9шт.

6

F79412

SUPPORT - front, R.H.

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)

4шт.

BOLT - 7/16" x 1" N.F. hex. (114-301) nut (129-124)

2шт.

7

F9188

DOOR

- clean out

1шт.

Выбрано товаров: 19
