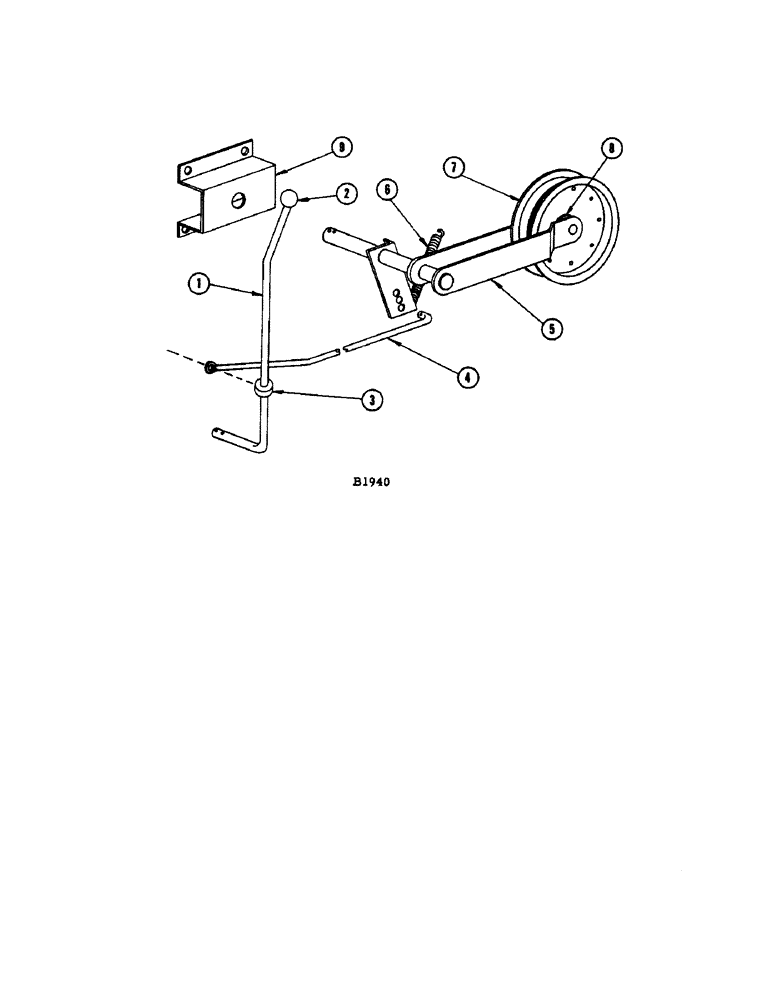

Запчасти Case IH 1060 (172[1]) - GRAIN BIN JACKSHAFT DRIVE TIGHTENER (80) - CROP STORAGE/UNLOADING

1

F13058

LEVER - unloading

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

2шт.

WASHER - 1/2" flat (195-33)

1шт.

2

F21683

KNOB

- control

1шт.

3

F10117

COLLAR - adjusting, for ref. 1

1шт.

4

F11138

ROD - belt tightener

1шт.

BOLT - 1/4" x 1" N.F. hex. (114-1) jam nut (129-161)

1шт.

PIN - 3/32" x 1/2" cotter (132-24)

1шт.

5

F87032

PIVOT - tightener sheave

1шт.

PIN - 1/8" x 1-1/2" cotter (132-52)

2шт.

6

O183N

SPRING - tension for ref. 5

1шт.

7

F13064

SCREW

SHEAVE - (7" O.D.) tightener

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1036) nut (25-1110)

1шт.

8

O2682B

WASHER - (1-3/8" O.D. x 21/32" I.D. #14 ga.) spacer for ref. 7

2шт.

9

F11129

PLATE - support, idler pivot

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.
