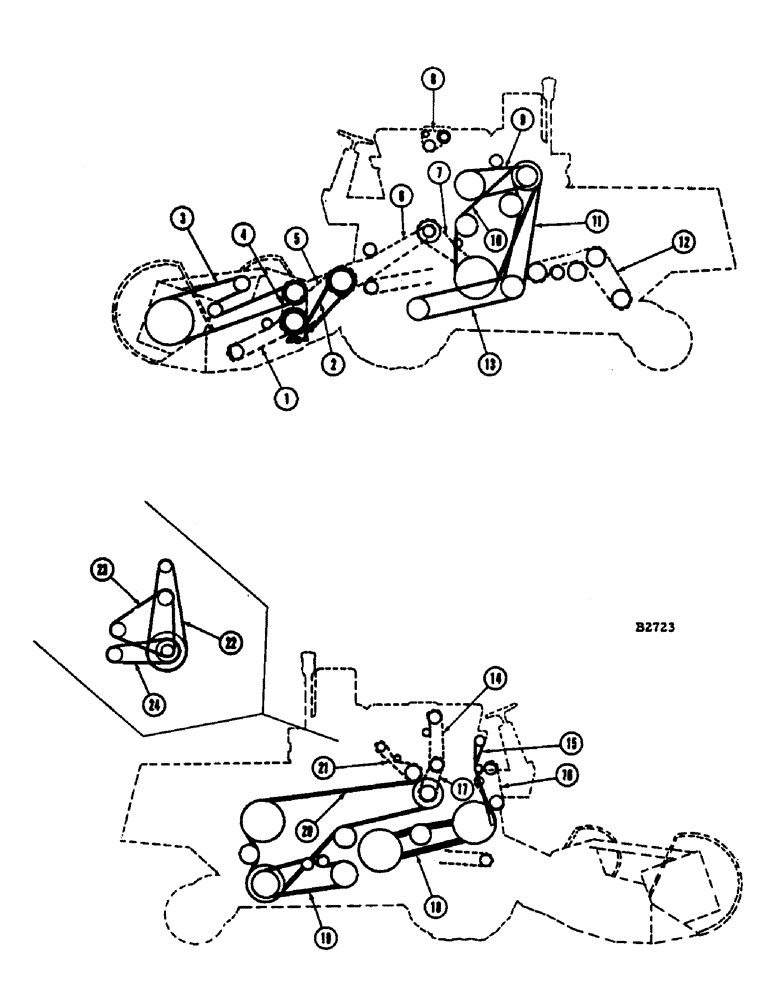

Запчасти Case IH 1060 (005A) - BELT AND CHAIN DRIVE REFERENCE (05) - SERVICE & MAINTENANCE
№
Артикул
Название
Примечание
Количество
1
F11689
X
CHAIN - auger drive
1шт.
2
F8398
V-BELT
"V"BELT - sickle drive (14 ft. header)
1шт.
F9587
"V"BELT - sickle drive (12 ft. header)
1шт.
F12765
V-BELT
"V"BELT - sickle drive (13 ft. header)
1шт.
F8819
V-BELT
"V"BELT - sickle drive (16 ft. and 18 ft. headers)
1шт.
3
F8419
V-BELT
"V"BELT - reel drive (Std.)
1шт.
F8819
V-BELT
"V"BELT - reel drive (Heavy duty)
1шт.
4
F8393
CHAIN - reel drive, jackshaft drive
1шт.
5
F8392
CHAIN - main header drive
1шт.
6
F6588
X
CHAIN - upper feed rake drive
1шт.
7
F7872
CHAIN - beater drive
1шт.
8
F11247
CHAIN - grain elevator drive
1шт.
9
F11139
BELT
Drives Grain Bin Auger Drive Jackshaft
1шт.
10
F9935
V-BELT
"V"BELT - main combine drive
1шт.
11
F12280
BELT
Traction Drive
1шт.
12
F14167
CHAIN - conveyor rake, strawwalker and tailings auger drive
1шт.
13
F13212
V-BELT
Variable Speed Traction Drive, Serial No. 8311400 and After
1шт.
F12642
BELT
"V"BELT - V.S. traction drive (Before #8311400)
1шт.
14
F11237
X
CHAIN - distribution auger drive
1шт.
15
F12633
"V"BELT - variable speed cylinder control
1шт.
16
F7904
X
CHAIN - discharge auger drive
1шт.
17
F11149
X
CHAIN - distribution auger jackshaft drive
1шт.
18
F12604
V-BELT,1.75" W
Variable Speed Cylinder Drive 1.75" W
1шт.
19
F9468
BELT
Fan Drive
1шт.
F10269
BELT
Fan Drive, See F9468, High Speed Attachment
1шт.
20
F7865
BELT
Shoe and Grain Auger Drive
1шт.
22
F12672
"V"BELT - governor drive (Chrysler engines)
1шт.
23
F14928
"V"BELT - fan and alternator/generator drive (Case)
1шт.
F12793
V-BELT
"V"BELT - fan and alternator drive (Chrysler)
1шт.
24
F8047
BELT
Hydraulic Pump Drive
1шт.
F8492
V-BELT
"V"BELT - strawspreader drive, additional drive belts
1шт.
F8549
"V"BELT - rear roller drive (Pickup attachment), additional drive belts
1шт.
F9640
"V"BELT - beater drive (Feeder roll attachment), additional drive belts
1шт.
F10559
"V"BELT - reel drive (Extended cutter bar), additional drive belts
1шт.
F14230
BELT
"V"BELT - pickup jackshaft drive (Replaces F9428), additional drive belts
1шт.
O754CS
V-BELT 127.87" L, Sickle drive (Extended cutter bar), Additional drive belts 127.87" L
1шт.
B12470
CHAIN (AG)
CHAIN SECTION - (Contains 49 riveted links, 1 conn. link #40 roller chain)
1шт.
B12471
CHAIN (AG)
CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #40 roller chain)
1шт.
B12472
CHAIN (AG)
CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #40 roller chain)
1шт.
B12473
CHAIN (AG)
CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #40 roller chain)
1шт.
B12474
CHAIN (AG)
CHAIN SECTION - (Contains 49 riveted links, 1 conn. link #50 roller chain)
1шт.
B12475
CHAIN (AG)
CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #50 roller chain)
1шт.
B12476
CHAIN (AG)
CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #50 roller chain)
1шт.
B12477
CHAIN (AG)
CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #50 roller chain)
1шт.
B12478
CHAIN SECTION - (Contains 49 riveted links, 10 roller chain)
1шт.
B12479
CHAIN (AG)
CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #60 roller chain)
1шт.
B12480
CHAIN (AG)
CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #60 roller chain)
1шт.
B12481
CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #60 roller chain)
1шт.
B12482
CLIP
- spring, for B12509 conn. link (Pkg. of 25)
1шт.
B12483
CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #CA-2040 roller chain)
1шт.
B12484
CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #CA-2040 roller chain)
1шт.
B12485
CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #CA-2040 roller chain)
1шт.
B12486
CHAIN (AG)
CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #A-2040 roller chain)
1шт.
B12487
CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #A-2040 roller chain)
1шт.
B12488
CHAIN (AG)
CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #A-2040 roller chain)
1шт.
B12501
LINK
- connecting, #40 roller chain, sections
1шт.
B12502
OFFSET LINK
LINK - offset, #40 roller chain, sections
1шт.
B12503
ROLLER
LINK - roller, #40 roller chain, sections
1шт.
B12504
CLIP - spring, for B12501 conn. link (Pkg. of 25), chain sections
1шт.
B12505
LINK
- connecting, #50 roller chain, sections
1шт.
B12506
LINK
- offset, #50 roller chain, sections
1шт.
B12507
CHAIN (AG)
LINK - roller, #50 roller chain, sections
1шт.
B12508
CLIP
- spring, for B12505 conn. link (Pkg. of 25), chain sections
1шт.
B12509
DRAG LINK
LINK - connecting, #60 roller chain, sections
1шт.
B12510
CHAIN LINK
LINK - offset, #60 roller chain, sections
1шт.
B12511
LINK
- roller, #60 roller chain, sections
1шт.
B12512
CONNECTOR, ELEC
LINK - connecting, #CA-2040 roller chain, sections
1шт.
B12513
LINK - roller, #CA-2040 roller chain, sections
1шт.
B12514
LINK
- connecting, #A-2040 roller chain, sections
1шт.
B12515
LINK
- offset, #A-2040 roller chain, sections
1шт.
B12516
LINK
- roller, #A-2040 roller chain, sections
1шт.
B12517
CHAIN (AG)
CHAIN SECTION - (Contains 49 riveted links, 1 conn. link #CA-2050 roller chain)
1шт.
B12518
CHAIN (AG)
CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #CA-2050 roller chain)
1шт.
B12519
CHAIN SECTION - (Contains 9 riveted, 1 conn. link #CA-2050 roller chain)
1шт.
B12520
CHAIN (AG)
CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #CA-2050 roller chain)
1шт.
B12521
LINK
- connecting, #CA-2050 roller chain, sections
1шт.
B12522
LINK
- offset, #CA-2050 roller chain, sections
1шт.
B12523
DRAG LINK
LINK - roller, #CA-2050 roller chain, sections
1шт.
B17074
CHAIN (AG)
CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #41 roller chain)
1шт.
B17075
CHAIN (AG)
CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #41 roller chain)
1шт.
B17076
CHAIN (AG)
CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #41 roller chain)
1шт.
B17077
LINK
- connecting, #41 roller chain, sections
1шт.
B17078
LINK
- offset, #41 roller chain, sections
1шт.
B17079
LINK
- roller, #41 roller chain, sections
1шт.
B13030
HARDWARE
ROLLER CHAIN - #40, 10 ft. roll (240 links), sections
1шт.
B13031
CHAIN (AG)
ROLLER CHAIN - #50, 10 ft. roll (192 links), sections
1шт.
B13032
CHAIN
ROLLER CHAIN - #60, 10 ft. roll (160 links), sections
1шт.
B17102
CHAIN (AG)
ROLLER CHAIN - #CA-2040, 10 ft. roll (120 links), sections
1шт.
B17103
CHAIN (AG)
ROLLER CHAIN - #A-2040, 10 ft. roll (120 links), sections
1шт.
B17104
CHAIN (CE)
ROLLER CHAIN - #CA-2050, 10 ft. roll (100 links), sections
1шт.
B15926
LINK
CHAIN - 10 ft. roll, #25 steel, drive
1шт.
F6588
X
CHAIN - drives upper feed rake shaft (135-riveted, 1-offset, and 1-conn. link) Use 2-B12478 chains, 1-B12479 chain, 1-B12480 chain, 1-B12481 chain and 1-B12510 offset link #60 or make from B13032
1шт.
F7872
CHAIN - beater drive (109-riveted and 1-conn. link) Use 2-B12478 chains and 1-B12480 #60 roller chain, or make from B13032
1шт.
F7904
X
CHAIN - discharge auger drive (27-riveted, 1-offset and 1-conn. link) Use 1-B12487, 3-B12488 and 1-B12515 offset link #A-2040 roller chain or make from B17103
1шт.
F7945
X
CHAIN - grain elevator drive (45-riveted and 1-conn. link) Use 2-B12471 chains and 1-B12473 #40 roller chain or make from B13030
1шт.
F8392
CHAIN - main header drive (147-riveted, 2-offset and 1-conn. link) Use 2-B12478, 2-B12479, 1-B12481 chain, 1-B12509 conn. link, 2-B12510 offset links and 1-B12511 roller link #60 roller chain or make from B13032
1шт.
F8393
CHAIN - drivers reel drive jackshaft (61-riveted and 1-conn. link) Use 1-B12474 and 2-B12477 #50 roller chains or make from B13031
1шт.
F8456
CHAIN - upper roller drive, Flax attachment (49-riveted and 1-conn. link) Use 1-B12478 #60 roller chain or make from B13032
1шт.
F8458
X
CHAIN - extension, lower roll drive, Flax attachment (29-riveted, 2-offset and 1 conn. link) Use 1-B12479, 1-B12480 chain and 2-B12480 chain and 2-B12510 offset links #60 roller chain or make from B13032
1шт.
F8655
X
CHAIN - lower roller drive, pickup attachment (53-riveted, 3-offset and 1 conn. link) Use 2-B12483, 2-B12485 #CA-2040 chains, 1-B12512 conn. link, 1-B12513 roller link and 3-B12515 offset links #A-2040 or make from B17102
1шт.
F9024
X
Drive chains
1шт.
CHAIN - cylinder drive (123-riveted, 1 conn. link, 3-riveted, 1-conn. link, 3-riveted, 1-offset and 1-conn. link) Use 2-B12478, 4-B12478, 4-B12481 chains, 4-B12509 conn. links, 1-B12510 offset and 4-B12510 offset and 4-B12511 roller links #60 or make from B13032
1шт.
F9427
CHAIN (AG)
CHAIN - pickup main drive (55-riveted and 1-conn. link) Use 1-B12474 and 1-B12477 chain #50 or make from B13031
1шт.
F10754
CHAIN - drives conveyor rake, strawwalker and tailings auger, before #8311400 (131-riveted, 1-offset and 1-conn. link) Use 2-B12517, 1-B12518, 2-B12520 chains and 1-B12522 offset link #CA-2050 or make from B17104
1шт.
CHAIN (AG)
CHAIN - grain bin auger drive (75-riveted and 1-conn. link) Use 1-B12474, 4-B12477 chains, 1-B12507 roller link and 1-B12505 conn. link #50 or make from B13031
1шт.
F11149
X
CHAIN - distribution auger jackshaft drive (75-riveted, 2-offset and 1-conn. link) Use 1-B12470, 1-B12471, 1-B12473 chain and 2-B12502 offset links #40 or make from B13030
1шт.
F11237
X
CHAIN - distribution auger drive (181-riveted and 1-conn. link) Use 3-B12470, 1-B12471, 1-B12472 chain, 1-B12503 roller and 1-B12501 conn. link #40 or make from B13030
1шт.
F11247
CHAIN - grain elevator drive (67-riveted, 1-offset and 1-conn. link) Use 1-B12470, 1-B12472, 1-B12473 chain, 1-B12503 roller, 1-B12502 offset and 1-B12501 conn. link #40 or make from B13030
1шт.
F11689
X
CHAIN - auger drive (89-riveted, 2-offset and 1-conn. link) Use 1-B12478, 1-B12479, 2-B12480 chains and 2-B12510 offset links #60 or make from B13032
1шт.
F12167
X
CHAIN - cross auger drive (65-riveted and 1 conn. link) Use 1-B12470, 1-B12472 and 1-B12473 chain #40 or make from B13030
1шт.
F12360
X
CHAIN - rotor drive (91-riveted, 4-offset and 1 conn. link) Use 4-B17074, 2-B17076 chains and 4-B17078 offset links #41
1шт.
F12378
X
CHAIN - Scour Kleen drive (105-riveted, 4-offset and 1-conn. link) Use 2-B12470, 1-B12473 chain and 4-B12502 offset links #40 or make from B13030
1шт.
F12379
X
CHAIN - grain elevator drive extension (71-riveted, 4-offset and 1-conn. link) Use 1-B12470, 1-B12471 chain, 4-B12502 offset, 1-B12503 roller and 1-B12501 conn. link #40 or make from B13030
1шт.
F13151
CHAIN - distribution auger (47-riveted, 1-offset and 1-conn. link) Use 3-B12472, 3-B12473 chains and 1-B12502 offset link #40 or make from B13030, drive
1шт.
F14167
Drive chains
1шт.
CHAIN - drives conveyor rake, strawwalker and tailings auger, #8311400 and after (133-riveted, 1-offset and 1-conn. link) Use 2-B12517, 1-B12518, 2-B12520 chains, 1-B12522 offset link, 1-B12523 roller link and 1-B12521 conn. link #CA-2050 or make from B17104
1шт.
F14979
CHAIN - dist. auger drive grain el. ext. (235-riveted and 1-conn. link) Use 4-B12470, 1-B12471, 1-B12472 and 1-B12473 chain #40 or cut from B13030
1шт.
N3305
X
CHAIN - rear draper roller drive, California Special (137-riveted, 1-offset and 1-conn. link) Use 2-B12474, 1-B12475, 1-B12476, 1-B12477 chain and 1-B12506 offset link #50 or make from B13031
1шт.
F11165
RUBBER FLIGHT
FLIGHT - rubber, chain and flight assemblies number 55 steel, 5 inch
1шт.
NSS
NOT SOLD SEPARAT
FLIGHT - steel (See F79708), chain and flight assemblies number 55, 5 inch
1шт.
F79708
STEEL FLIGHT
CHAIN AND STEEL FLIGHT - special (Consists of chain and 1 flight), assemblies number 55, 5 inch
1шт.
F79799
RUBBER FLIGHT
CHAIN AND FLIGHT - (Consists of chain and 1 flight), assemblies number 55, 5 inch
1шт.
F86419
CHAIN AND FLIGHT - (Consists of chain and 2 flights), assemblies number 55, 5 inch
1шт.
F86421
CHAIN AND FLIGHT - (Consists of chain and 5 flights), assemblies number 55, 5 inch
1шт.
F86423
CHAIN (AG)
CHAIN AND FLIGHT - (Consists of chain and 10 flights), assemblies number 55, 5 inch
1шт.
F86425
CHAIN (CE)
CHAIN AND FLIGHT - (Consists of chain and 20 flights), assemblies number 55, 5 inch
1шт.
NSS
NOT SOLD SEPARAT
FLIGHT - rubber, see F77894, 7 inch
1шт.
F11479
FLIGHT - steel, see F79706, 7 inch
1шт.
F77894
CHAIN AND FLIGHT - (Consists of chain and 1 flight), 7 inch
1шт.
F78446
CHAIN AND FLIGHT - (Consists of chain and 2 flights), 7 inch
1шт.
F79706
CHAIN AND STEEL FLIGHT - special (Consists of chain and 1 flight), 7 inch
1шт.
F86420
CHAIN AND FLIGHT - (Consists of chain and 5 flights), 7 inch
1шт.
F86422
CHAIN AND FLIGHT - (Consists of chain and 10 flights), 7 inch
1шт.
F86424
CHAIN AND FLIGHT - (Consists of chain and 20 flights), 7 inch
1шт.
F88527
CHAIN AND FLIGHT, assemblies number CA550, 5 inch
1шт.
F22711
PLOW BOLT
FLIGHT - (Rubber), chain assemblies number CA550, 5 inch
1шт.
NSS
NOT SOLD SEPARAT
CHAIN - (Consists of 1 attaching and 2 roller links), flight assemblies number CA550, 5 inch
1шт.
F54319
LINK
- connecting, chain and flight assemblies number CA550, 5 inch
1шт.
F10673
LINK
- offset, chain and flight assemblies number CA550, 5 inch
1шт.
F10818
LINK
- roller, chain and flight assemblies number CA550, 5 inch
1шт.
F92261
PINS AND COTTERS - Pkg. of 25, chain and flight assemblies number CA550, 5 inch
1шт.
F88528
CHAIN AND FLIGHT, assemblies number CA550, 5 inch
1шт.
F14984
FLIGHT - (Rubber), chain assemblies number CA550, 5 inch
1шт.
NSS
NOT SOLD SEPARAT
CHAIN - (Consists of 1 attaching & 2 roller links), flight assemblies number CA550, 5 inch
1шт.
F88529
CHAIN AND FLIGHT, assemblies number CA550, 5 inch
1шт.
F14985
FLIGHT - (Steel), chain assemblies number CA550, 5 inch
1шт.
NSS
NOT SOLD SEPARAT
CHAIN - (Consists of 1 attaching & 2 roller links), flight assemblies number CA550, 5 inch
1шт.
F54319
LINK
- connecting, chain and flight assemblies number CA550, 5 inch
1шт.
F10673
LINK
- offset, chain and flight assemblies number CA550, 5 inch
1шт.
F10818
LINK
- roller, chain and flight assemblies number CA550, 5 inch
1шт.
F92261
PINS AND COTTERS - Pkg. of 25, chain and flight assemblies number CA550, 5 inch
1шт.
Выбрано товаров: 152
