Запчасти Case IH 1060 (166) - GRAIN ELEVATOR, BAGGING ATTACHMENT (80) - CROP STORAGE/UNLOADING

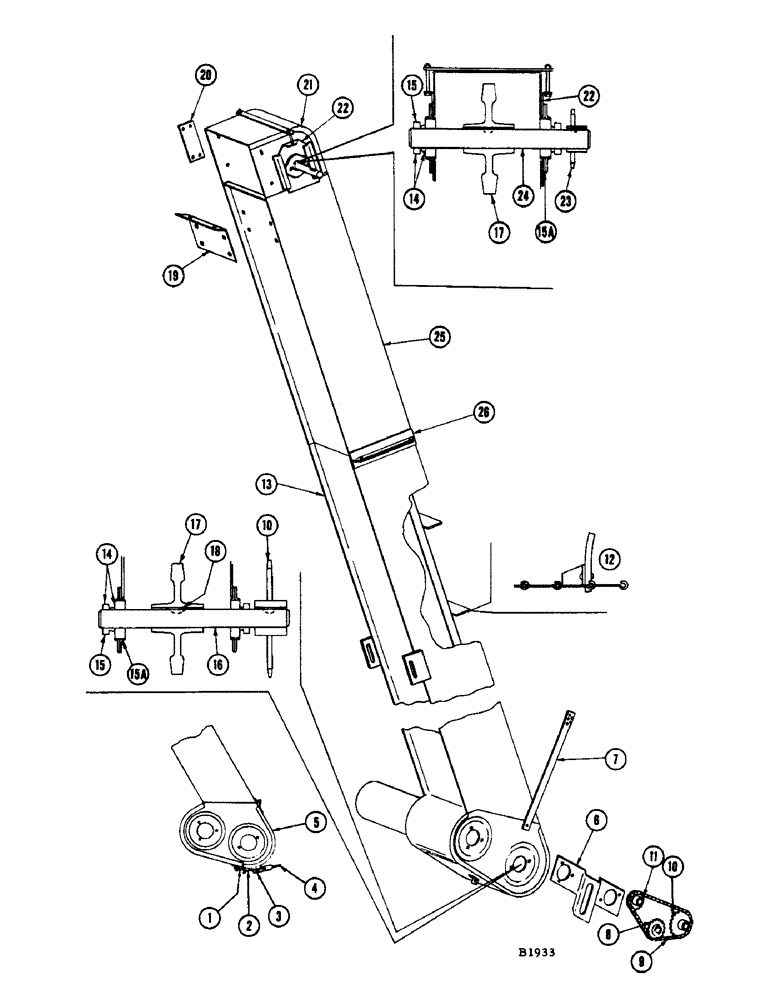

Схема запчастей Case IH 1060 - (166) - GRAIN ELEVATOR, BAGGING ATTACHMENT (80) - CROP STORAGE/UNLOADING
14
22
13
15
21
16
3
7
17
15a
5
23
25
26
11
6
20
10
18
24
15a
18
9
1
17
19
14
2
12
4
8
15
22

Артикул

Название

Примечание

Количество

1

O315CS

HOOK - latch, lower head cover

1шт.

2

O316CS

SPRING - linkage, for O313CS latch handle (Ref. 4)

1шт.

3

F11512

BRACKET - for latch handle O313CS (Ref. 4)

2шт.

4

O313CS

HANDLE - latch, lower head cover

1шт.

RIVET - 3/16" x 5/8" rhd. (45-310)

1шт.

5

F79470

COVER - lower head (Includes ref. 3 and 4) Replaced by F88410 when stock is exh. (See page 162)

1шт.

6

F12053

BRACKET - idler

1шт.

7

F12218

SUPPORT STRAP - grain elevator

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

1шт.

8

F7935

SPROCKET ASSY.

SPROCKET - (18T) Tightener, elevator drive

1шт.

BOLT - 5/8" x 2-1/4" N.F. hex. (114-603) nut (129-127)

1шт.

9

F7945

X

CHAIN - grain elevator drive (See chain page)

1шт.

10

F76981

SPROCKET - (22T) Elevator drive, driven (On F6612 lower shaft)

1шт.

KEY - "A" Woodruff (126-21)

1шт.

PIN - 1/4" x 1-3/4" cotter (132-152)

1шт.

11

F76947

SPROCKET - (15T) Drives elevator (On grain auger shaft)

1шт.

KEY - "A" Woodruff (126-21)

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

12

F79469

CHAIN - conveyor (NSS) #55 (See chain page) Consists of 1-F86424, 1-F86422, 2-F78446 and 2-F79706

1шт.

12

F88526

CHAIN - conveyor, #CA550 - 7 inch flight (See chain page) Consists of 36 flights

1шт.

13

F79461

BODY AND LOWER HEAD - (Replaced by F88407 and F88408 when stock is exh.) See page 162

1шт.

14

F90306

BEARING ASSY

BEARING - (Replaces F78749) Lower and upper shaft

4шт.

15

O4233CS

COLLAR

- (Replaces F52076)

1шт.

15a

F9417

FLANGE

- for ref. 14

8шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

8шт.

16

F6612

SHAFT - (10-5/8" long) Lower

1шт.

17

51B

SPROCKET ASSY.

SPROCKET

2шт.

KEY - "A" Woodruff (126-21)

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

18

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

19

F12017

BRACKET - elevator support

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (119-217) nut (129-102)

4шт.

20

F12201

TIE STRAP - see cross auger attachment

2шт.

21

F78319

HEAD - upper, elevator body

1шт.

22

F7901

BRACKET - adjustment, for upper elevator shaft

2шт.

BOLT - 5/16" x 3-1/2" N.C. hex. (113-116)

2шт.

NUT - (129-102)

4шт.

23

F10267

SPROCKET - (13T) Distribution drive

1шт.

24

F6611

SHAFT - (11" long) Upper head

1шт.

25

F86120

SPOUT AND TUBE - for inlet auger over grain gin, elevator bagger attachment

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (12-48) nut (25-104), grain elevator extension bagger attachment

10шт.

26

F86128

ANGLE - mounting, grain elevator extension bagger attachment

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (111-107) nut (129-101), grain elevator extension bagger attachment

7шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121), grain elevator extension bagger attachment

6шт.

F86124

EXTENSION CHAIN - conveyor (NSS) #55 (See chain page) Consists of 1-F86420, 1-F78446, 1-F77894 and 1-#55 plain link, grain elevator bagger attachment

1шт.

F88535

EXTENSION CHAIN - conveyor, #CA550 - 7 inch flight (See chain page) Consists of 8 flights, grain elevator bagger attachment

1шт.

Выбрано товаров: 46
