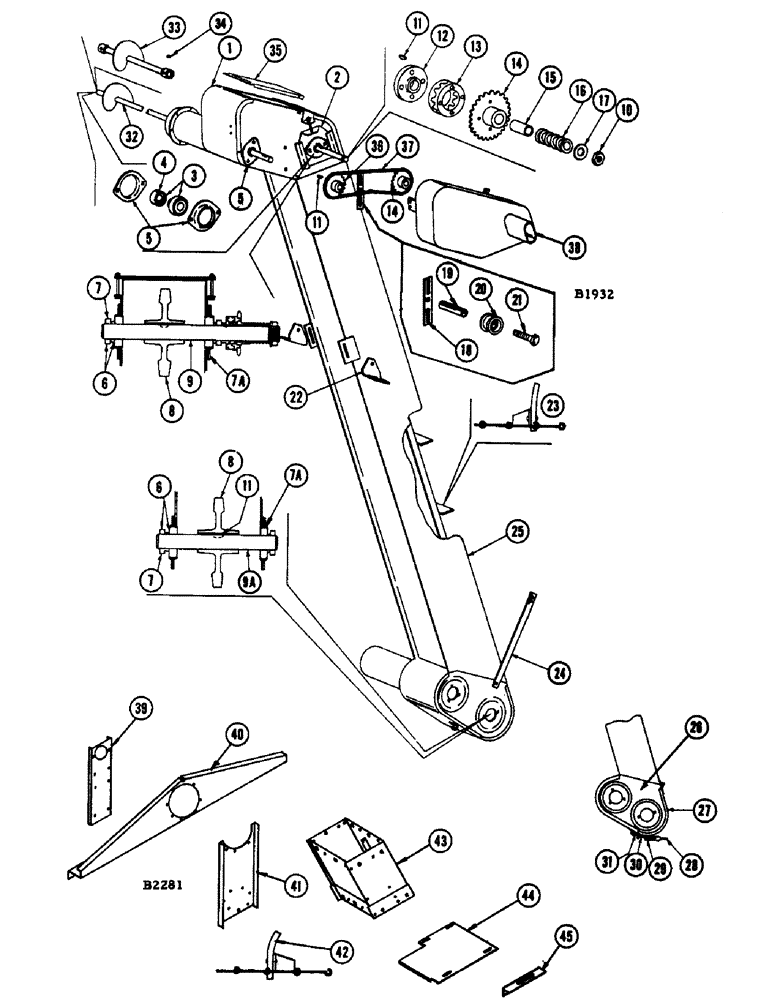

Запчасти Case IH 1060 (162) - GRAIN ELEVATOR, GRAIN BIN (80) - CROP STORAGE/UNLOADING

1

F79458

HEAD - upper, elevator body (Before #8357001)

1шт.

F88522

HEAD - upper, elevator body (#8357001 and after)

1шт.

SCREW - 1/4" x 1/2" N.C. mach. (173-201) nut (129-101)

2шт.

WASHER - 1/4" plain (195-518)

2шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

6шт.

2

F16438

HOLDER - elevator bearing

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

4шт.

BOLT - 5/16" x 2-1/2" N.C. hex. (113-117)

2шт.

NUT - jam (129-142)

4шт.

3

F90306

BEARING ASSY

BEARING - for F86140 auger

2шт.

4

O4233CS

COLLAR

1шт.

5

F9417

FLANGE

- for ref. 3

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

4шт.

6

F90306

BEARING ASSY

BEARING - (Replaces F78749 flange bearing)

4шт.

7

O4233CS

COLLAR

- (Replaces F52076)

1шт.

7a

F9417

FLANGE

- for ref. 6

8шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

8шт.

8

51B

SPROCKET ASSY.

SPROCKET - (7T) Elevator chain, upper and lower shaft

2шт.

KEY - "A" Woodruff (126-21)

2шт.

PIN - 3/16" x 2" cotter (132-99)

2шт.

9

F11232

SHAFT

- upper head

1шт.

9a

F11240

SHAFT - lower head

1шт.

10

131-37

LOCK NUT,3/4"-16

NUT - 3/4" #29NTE126 ESNA

1шт.

11

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

12

143CS

PLATE

- hub, jump clutch

1шт.

13

T16665

RING - clutch

1шт.

14

F79464

SPROCKET ASSY.

SPROCKET - (30T) On grain auger shaft, drives elevator

1шт.

15

F11042

BEARING

BUSHING - (27/32" O.D. x 1-3/8" long)

1шт.

16

O1090CH

SPRING

1шт.

17

A26376

WASHER

1шт.

18

F12712

BRACKET - chain tightener

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)

2шт.

19

O201HT

SPACER - chain tightener

1шт.

20

O3511CS

PULLEY

IDLER - chain tightener

1шт.

21

18-660

BOLT - 3/8" x 3/4" N.C. #3 hd. plow

1шт.

NUT - (25-106) Fl. wshr. (195-25) L.W. (92-6)

1шт.

22

F12075

BRACKET - elevator support

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-105) nut (129-123)

2шт.

23

F79469

CHAIN - conveyor (NSS) #55 (See chain page) Consists of 1-F86424, 1-F86422, 2-F78446 and 2-F79706

1шт.

23

F88526

CHAIN - conveyor, elevator (#CA550 - 7 inch flight) See chain page; Consists of 36 flights

1шт.

24

F11246

STRAP - support, grain elevator (Grain)

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-108) nut (129-101)

1шт.

25

F79461

BODY AND LOWER HEAD - (Replaced by F88407 and F88408 when stock is exhausted)

1шт.

F88407

BODY - (Rice, #8334601 and after)

1шт.

26

F88408

LOWER HEAD - (Rice, #8334601 and after)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (12-410) nut (25-104)

10шт.

27

F79470

DOOR - lower head (Replaced by F88410 when stock is exhausted)

1шт.

F88410

DOOR - lower head (Rice, #8334601 and after)

1шт.

28

O313CS

HANDLE - latch, lower head cover

1шт.

RIVET - 3/16" x 5/8" rhd. (45-310)

1шт.

29

F11512

BRACKET - for latch handle O313CS (Ref. 28)

2шт.

30

O316CS

SPRING - linkage, for ref. 28

1шт.

31

O315CS

HOOK - latch, lower head cover

1шт.

32

F86140

AUGER - inlet, (Before #8357001)

1шт.

F88520

AUGER - inlet (#8357001 and after)

1шт.

WASHER - 7/8" plain (195-549)

3шт.

33

F87033

AUGER - sliding distribution

2шт.

JAM NUT - 5/16" N.C. (25-145)

4шт.

34

85-512

SET SCREW

SCREW - 5/16" x 3/4" sq. hd. N.C. cup pt. set

4шт.

35

F11245

COVER - handle hole, upper head

1шт.

NUT - 1/4" N.C. wing (129-409) L.W. (192-19) pl. wshr. (195-518)

2шт.

36

F79467

SPROCKET ASSY.

SPROCKET - (30T) distribution auger drive, driven

1шт.

KEY - "A" Woodruff (126-21)

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

37

F11247

CHAIN - grain elevator drive (See chain page) See F7945 for bagging platform

1шт.

38

F79474

SHIELD - chain (Before #8357001)

1шт.

F88533

SHIELD - chain (#8357001 and after)

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

2шт.

39

F13147

STIFFENER - R.H. (Before #8357001)

1шт.

F14966

STIFFENER - R.H. (#8357001 and after)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

2шт.

40

F13149

SHIELD - grain (Before #8357001)

1шт.

F14968

SHIELD - grain (#8357001 and after)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

11шт.

41

F13148

SUPPORT - tube (Before #8357001)

1шт.

F14967

SUPPORT - tube (#8357001 and after)

1шт.

BOLT - 1/4 x 5/8" N.F. hex. (114-3) nut (129-121)

9шт.

42

F87068

EXTENSION CHAIN - conveyor (NSS) #55 (See chain page) Consists of 3-F77894

1шт.

42

F88547

EXTENSION CHAIN - conveyor (#CA550 - 7 inch flight) See chain page; consists of 3 flights

1шт.

F88530

CHAIN - conveyor, complete el. ext. (#CA550 - 7 inch flight) See chain page; Consists of 39 flights

1шт.

43

F87066

TUBE - extension

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (111-118) nut (129-101)

14шт.

WASHER - 1/4" std. flat (195-18)

14шт.

44

F12364

SECTION - floor, removable

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)

2шт.

45

F13150

BRACKET - elevator

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

4шт.

BOLT - 3/8" x 3/4" N.F. hex. (111-332) nut (129-123)

2шт.

F13151

CHAIN - distribution auger (Before #8357001) See chain page

1шт.

F14979

CHAIN - distribution auger (#8357001 and after) See P. 5A

1шт.
