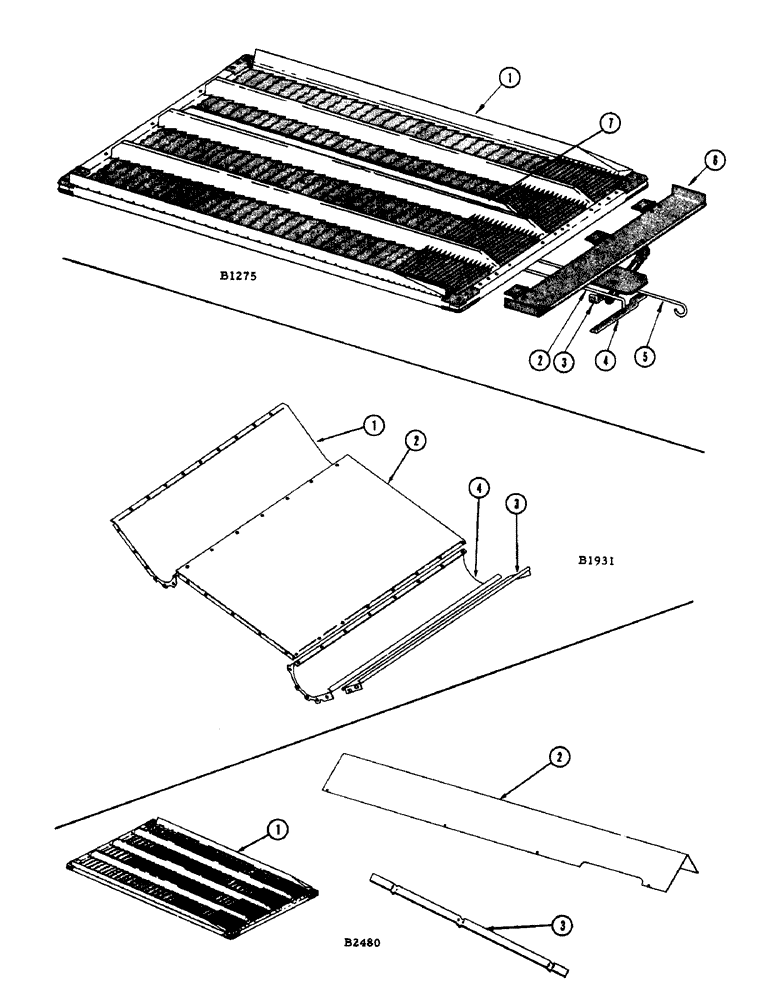

Запчасти Case IH 1060 (160) - CONVEYOR SIEVE (74) - CLEANING

1

F86769

SIEVE

- conveyor, complete less tail gate assembly

1шт.

2

F8106

ROD

- adjusting, front section conveyor sieve

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

2шт.

3

F8107

CLAMP - adjusting rod

1шт.

BOLT - 5/16" x 1-1/4" rhd. sq. nk. (11-520)

1шт.

WING NUT - 5/16" (129-405)

1шт.

4

F8096

LEVER - adjusting, conveyor sieve

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Locknut (131-3)

1шт.

5

O464CS

ROD - adjusting (Rear section for tailings)

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

1шт.

6

F76773

GATE - tail, conveyor sieve

1шт.

BOLT - 1/4" N.F. hex. (114-2) nut (129-121)

6шт.

7

F14612

RISER - conveyor sieve, medium slope attachment

3шт.

SCREW - 1/4" x 1/2" rhd. N.C. mach. (173-201) L.W. (192-19), medium slope attachment

18шт.

WASHER - 1/4" flat (195-102) nut (129-101), medium slope attachment

18шт.

1

F7819

TROUGH - grain auger, floor

1шт.

2

F7829

FLOOR - grain

1шт.

SCREW - 1/4" x 1/2" rhd. N.C. match (75-48) nut (25-104), grain floor

11шт.

3

F11624

PANEL - hinge, grian floor

1шт.

4

F11625

TROUGH - tailings auger, grain floor

1шт.

F10379

TROUGH - grain auger (Peforated) See F7819, floor attachment

1шт.

F11664

TROUGH - tailings auger (Perforated) See F11625, floor attachment

1шт.

F78921

FLOOR - concave access section (Perforated) See F77977, trough floor attachment

1шт.

1

F88142M

SIEVE - conveyor, less adjustment and tailgate, corn chaffer sieve attachment

1шт.

2

F13246

COVER - auger, corn cob mix attachment

1шт.

BOLT - 1/4" x 3/8" N.F. hex. (114-9) nut (129-121), corn cob mix attachment

8шт.

3

F13245

BAR - concave filler, corn cob mix attachment

3шт.
