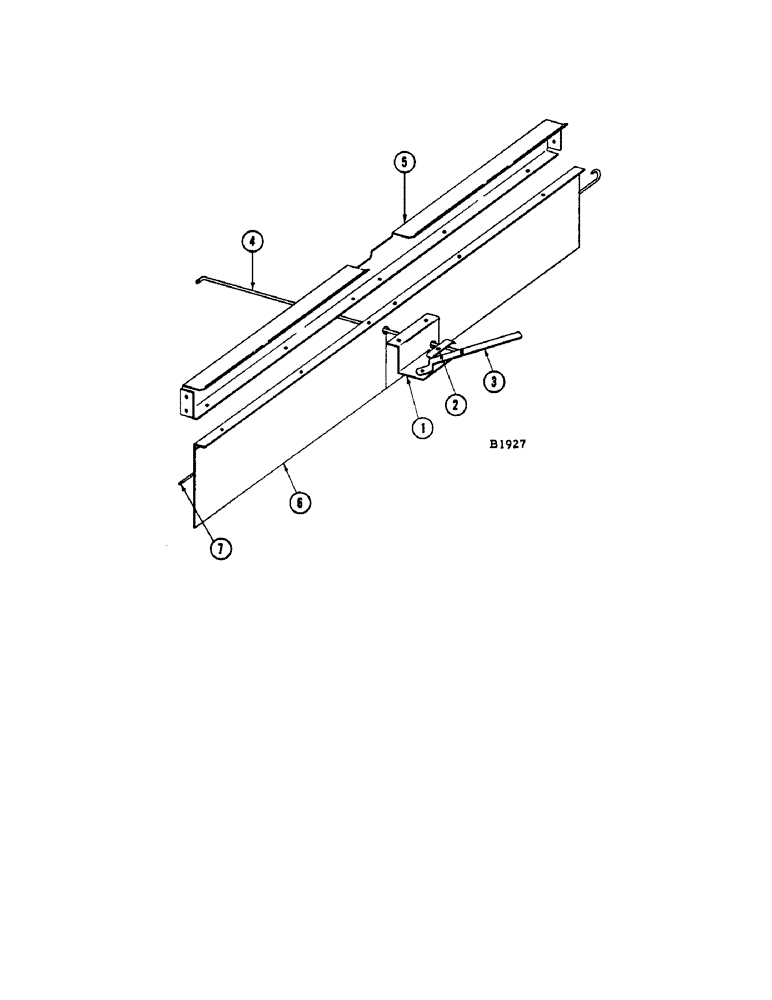

Запчасти Case IH 1060 (158[1]) - SHOE SIEVE ADJUSTMENT (74) - CLEANING

1

F8094

BRACKET - adjustment

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

2

F8107

CLAMP - adjusting rod

1шт.

BOLT - 5/16" x 1-1/4" rhd. sq. nk. (11-520) wing nut (129-405)

2шт.

3

F8096

LEVER - adjusting, shoe sieve

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) ESNA locknut #29 E054 (131-3)

1шт.

4

F8106

ROD

- adjusting, shoe sieve

1шт.

PIN - 3/32" x 7/8" cotter (132-27)

2шт.

5

F11871

CROSS MEMBER - rear shoe

1шт.

6

F86043

STIFFENER AND SEAL - rear shoe

1шт.

7

F10491

ROD - rear shoe seal

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.
