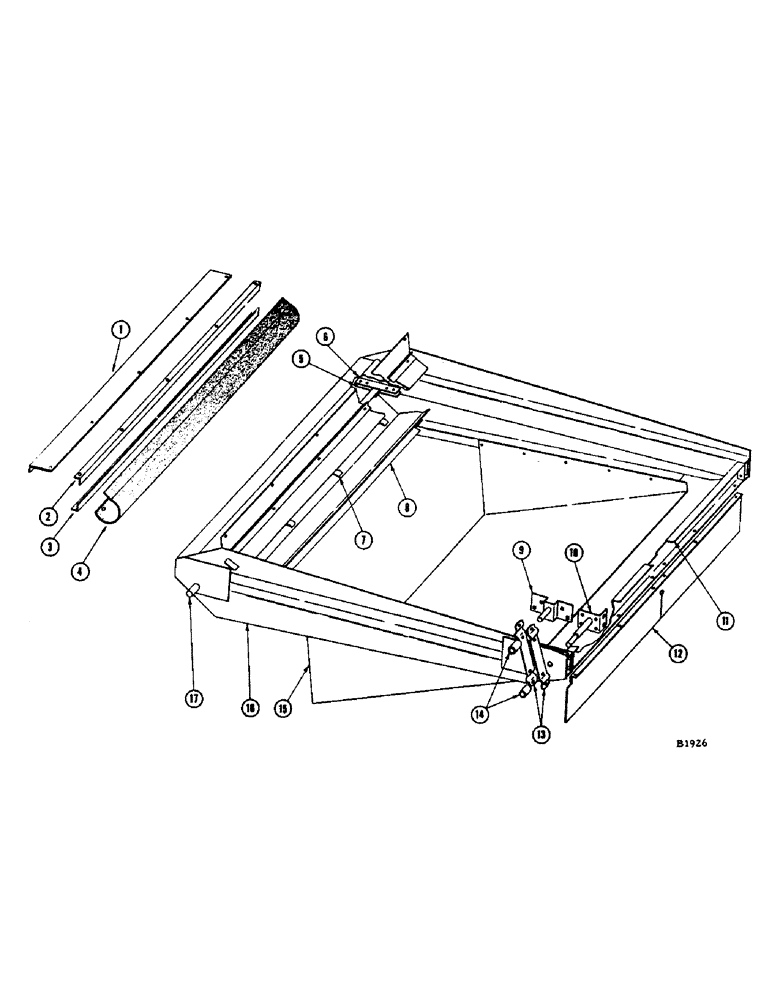

Запчасти Case IH 1060 (156) - SHOE (74) - CLEANING

1

F12559

EXTENSION - shoe seal front

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

5шт.

2

F86669

STRIP - bolting, front shoe seal

1шт.

SCREW - 1/4" x 7/8" N.C. rhd. mach. (73-414)

5шт.

3

F12562

STRIP - bolting, seal

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) L.W. (92-4)

5шт.

4

F12561

SEAL - shoe front

1шт.

5

F11876

SUPPORT - front pivot

2шт.

6

F11875

SUPPORT - bracket, front

2шт.

7

F7711

CLIP - lower front

3шт.

SCREW - 5/16" x 5/8" rhd. mach. (75-510) nut (25-105)

3шт.

8

F86056

STOP - front sieve

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

2шт.

9

F79273

BRACKET - rear rocker arm pivot

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)

8шт.

10

F86044

X

PIVOT - rear (Replaced by F88422 when stock is exhausted)

2шт.

F88422

PIVOT

- rear (Replaces F86044)

2шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105)

8шт.

11

F11871

MEMBER - rear cross

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

4шт.

12

F86043

STIFFENER AND SEAL - rear shoe

1шт.

13

F11039

SWINGER - rear shoe

4шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

8шт.

14

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- for ref. 13

4шт.

15

F86634

BOTTOM - vibrating

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (13-412) L.W. (92-4)

10шт.

16

F86667

SHOE

1шт.

BOLT - 5/16" x 1/2" N.C. hex. (13-58) nut (25-105)

2шт.

17

F11880

SHAFT - front rocker for shoe

1шт.

F10491

ROD - rear shoe seal (Not shown) (See shoe sieve adjustment)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.
