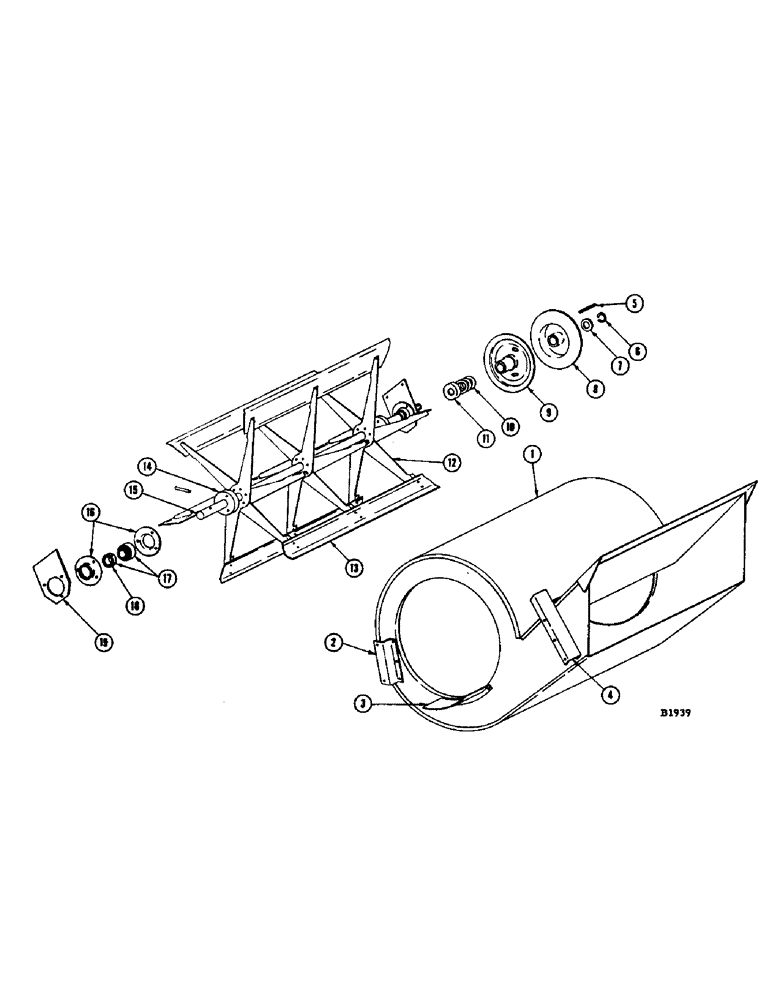

Запчасти Case IH 1060 (148) - FAN AND FAN HOUSING (74) - CLEANING

1

F86007

DRUM - fan

1шт.

2

F13003

SCREW

SUPPORT - front fan

2шт.

SCREW - 1/4" x 1/2" N.C. mach. (75-48) nut (25-104)

6шт.

3

F7814

SCREEN - fan intake

2шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

4шт.

4

F14611

FILLER - fan

2шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

8шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

4шт.

5

F41422

KEY

1шт.

6

A26949

RING, SNAP

SNAP RING

1шт.

7

B18275

WASHER

1шт.

8

F1313

SHEAVE

HALF

1шт.

9

F1314

SHEAVE HALF

1шт.

10

F9021

VALVE SPRING

SPRING - compression

1шт.

11

F16078

WASHER - cup, for ref. 10

1шт.

12

F7667

SPOKE - fan

9шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

3шт.

13

F10656

BLADE - fan

6шт.

SCREW - 1/4" x 1/2" N.C. mach. (75-48) nut (25-104)

36шт.

14

F6413

HUB

2шт.

BOLT - 1/4" x 1-1/2" N.F. hex. (14-424) nut (25-114)

6шт.

BOLT - 5/16" x 3" N.F. hex. (14-548) nut (25-115)

2шт.

15

F12445

SHAFT - fan (Replaces F7671)

1шт.

PIN - 1/4" x 1-3/8" type A-3 drive lock (135-404)

1шт.

FITTING - 1/8" str. (219-1)

1шт.

16

B18282

FLANGE

- for ref. 17

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

6шт.

17

3074CSA

BALL BEARING

2шт.

18

F62108

COLLAR

1шт.

19

F7672

HOLDER - bearing

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

4шт.

F9468

BELT

Fan Drive

1шт.

F1262

SHEAVE - (5-3/32" O.D. and 9-3/4" O.D. dbl.) drives fan (On grain auger shaft) See F86142, slow fan speed attachment

1шт.

F1263

SHEAVE HALF - (10-5/16" O.D.) fan drive (On fan shaft), slow fan speed attachment

2шт.

F1299

SHEAVE - (9-3/4" O.D. and 11" O.D. dbl.) drives grain auger and fan (On grain auger shaft) Replaced by F88248 when stock is exhausted, high fan speed attachment

1шт.

F88248

SHEAVE - (9-3/4" O.D. and 11" O.D. dbl.) Replaces F1299, high fan speed attachment

1шт.

F12054

BUSHING, high fan speed attachment

1шт.

F10269

BELT

Fan Drive, See F9468, High Speed Attachment

1шт.
